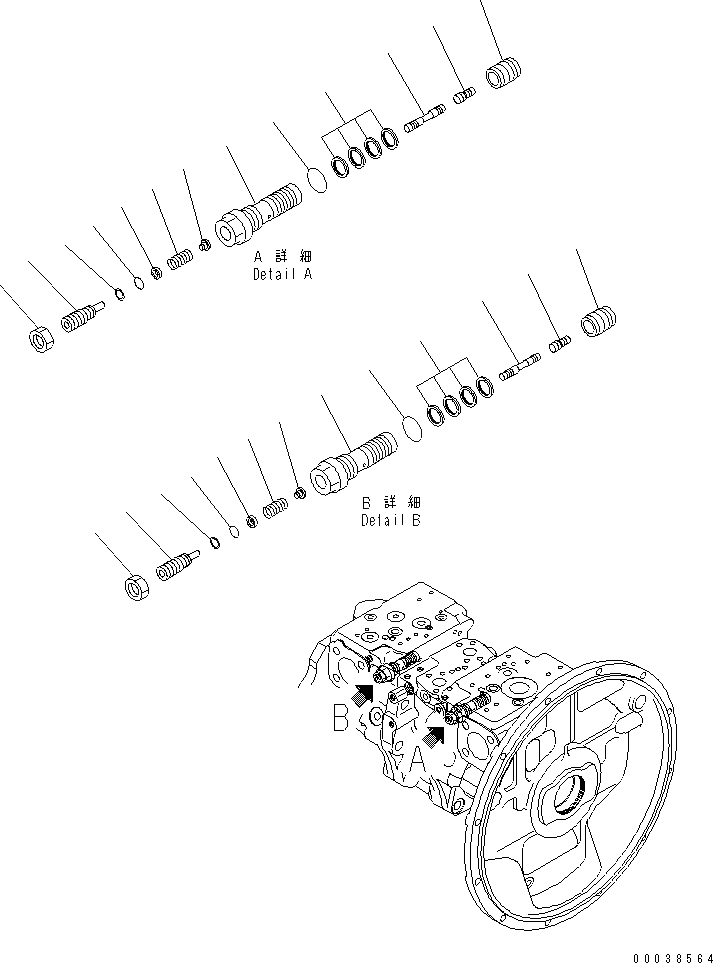

Запчасти Komatsu PC350NLC-8 ОСНОВН. НАСОС (/) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2G-00150

PUMP ASSEMBLY

|1

708-2G-00700

PUMP ASSEMBLY

|1

708-2G-03720

VALVE ASSEMBLY

|1

708-2G-03710

VALVE ASSEMBLY, LS

1

SLEEVE

|1

708-2L-35311

SLEEVE

2

SEAL

|2

708-2L-24680

SEAL

3

708-2J-15310

SPOOL

|3

708-2G-15412

SPOOL

4

708-2L-28540

PISTON

5

708-2L-35360

SLEEVE

6

708-2L-35331

SEAT

7

708-2L-35410

SPRING

8

708-2L-35341

SEAT

9

708-2L-35351

PLUG

10

07000-B1009

O-RING

11

07001-01009

RING, BACK-UP

12

01583-11408

NUT

13

07002-62434

O-RING

|14

708-2G-03920

VALVE ASSEMBLY

|14

708-2G-03910

VALVE ASSEMBLY, LS

14

SLEEVE

|14

708-2L-35311

SLEEVE

15

SEAL

|15

708-2L-24680

SEAL

16

708-2J-15310

SPOOL

|16

708-2G-15412

SPOOL

17

708-2L-28540

PISTON

18

708-2L-35360

SLEEVE

19

708-2G-15420

SEAT

20

708-2L-35410

SPRING

21

708-2L-35341

SEAT

22

708-2L-35351

PLUG

23

07000-B1009

O-RING

24

07001-01009

RING, BACK-UP

25

01583-11408

NUT

26

07002-62434

O-RING
