PC350NLC-8 S/N K50001-UP
/
U МАРКИРОВКА
/

ТАБЛИЧКИ (PCNLC) (С 2-СЕКЦИОНН. СТРЕЛА)

Запчасти Komatsu PC350NLC-8 ТАБЛИЧКИ (PCNLC) (С 2-СЕКЦИОНН. СТРЕЛА) U МАРКИРОВКА

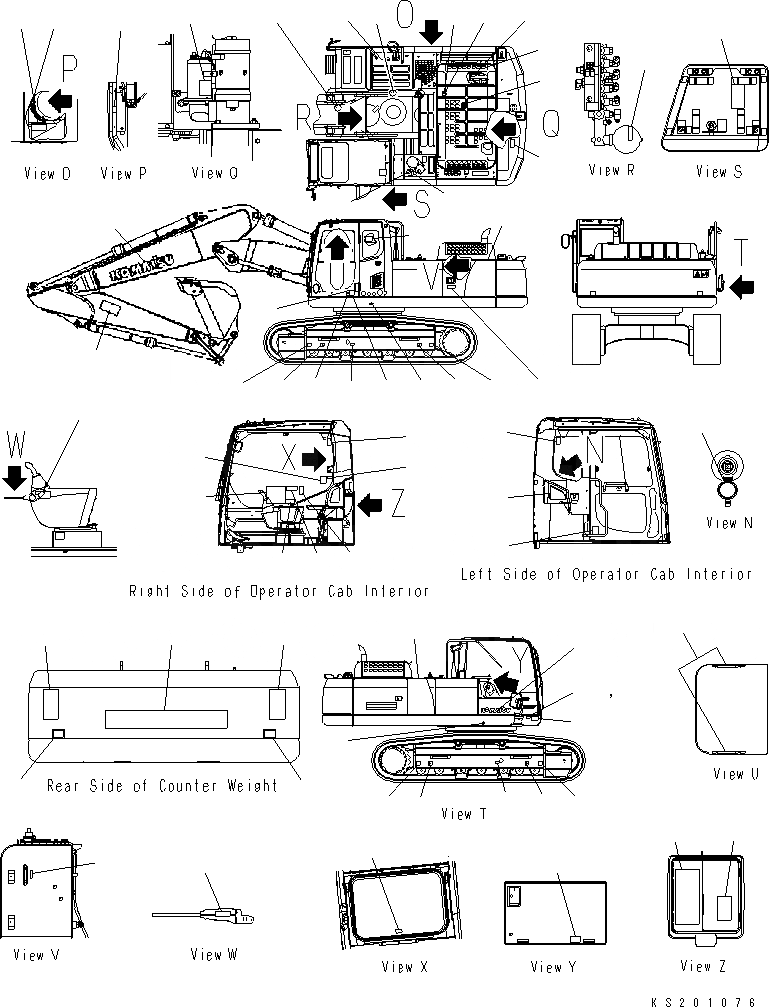

Схема запчастей Komatsu PC350NLC-8 - ТАБЛИЧКИ (PCNLC) (С 2-СЕКЦИОНН. СТРЕЛА) U МАРКИРОВКА
1
52
37
50
6
19
53
13
16
10
31
51
12
35
15
40
10
43
46
9
20
25
34
30
26
11
24
29
30
34
38
32
18
14
27
42
39
41
48
49
14
33
8
3
8
47
7
12
45
44
28
22
21
17
34
30
11
30
34
4
23
29
5
36
23
2

№

Артикул

Название

Примечание

Количество

|1

207-00-K1938

DECAL KIT

|1

207-00-K1937

DECAL KIT

|1

207-00-K1936

DECAL KIT

|1

207-00-K1961

DECAL KIT

1

09637-A0480

PLATE INSTRUCTION, AIR CLEANER

2

09690-P1400

PLATE MARK, KOMATSU

3

09690-P1400

PLATE MARK, KOMATSU

4

09844-00050

PLATE, EMERGENCY EXIT

5

09685-00002

PLATE OPERATING, SAFETY LOCK LEVER

6

09690-M0063

PLATE MARK, KOMATSU

7

09690-P0630

PLATE MARK, KOMATSU

8

20E-00-K1150

PLATE CAUTION, KEEP OFF SWING AREA

9

20E-00-K1140

PLATE CAUTION, WORKING AREA

10

09653-A0481

PLATE SAFETY

11

09657-A0881

PLATE SAFETY, TRACK ADJUSTING

12

09659-A057B

PLATE SAFETY, ACCUMULATOR AND GAS SPRING

13

09667-A0481

PLATE SAFETY, KEEP AWAY FAN AND BELT

14

09803-A0481

PLATE SAFETY

15

09805-A0881

PLATE SAFETY, KEEP AWAY FROM EDGE

16

09805-C0481

PLATE SAFETY, HOOD

17

09808-A0881

PLATE SAFETY, BATTERY CABLE

18

20Y-00-K2021

PLATE, WARNING

19

09669-0000E

PLATE CAUTION, FUEL INLET

20

09963-A1640

TAG, DO NOT OPERATE

21

207-00-76732

PLATE, FUSE

22

206-00-K1010

PLATE

23

14X-98-35181

PLATE, REFLECTOR

24

09696-40105

PLATE, DYNAMIC NOISE

25

20E-00-K1710

PLATE CAUTION

26

20E-00-K1690

PLATE CAUTION, ANTI-FREEZE

27

20Y-00-41461

PLATE, WINDOW LOCK

28

20Y-00-K2950

PLATE

|28

207-00-K1690

PLATE

29

21U-98-31160

PLATE MARK, CENTER OF GRAVITY

30

09960-00801

PLATE MARK, SLING POSITION

31

09642-A0480

PLATE, INSTRUCTION COOLANT

32

09696-50071

PLATE, NOISE OPERATOR

33

22U-00-21511

PLATE, 12V SOCKET

34

09960-00802

PLATE, TIE DOWN POINT

35

208-00-71261

PLATE, AIR INLET

36

205-00-73360

PLATE OPERATING, OIL LEVEL

37

20Y-00-41341

PLATE, PRE FILTER

38

20Y-00-41530

PLATE MARK, ECOT 3

39

20J-00-11271

PLATE, QUICK COUPLER

40

09669-0000C

DECAL, HYD.OIL FILLER CAP

41

207-00-76430

PLATE

42

09845-00480

DECAL, KOMTRAX WARNING

43

207-00-K1980

PLATE, OVER LOAD CAUTION

44

09601-02063

PLATE NAME

|44

09601-00061

PLATE NAME

45

04418-13060

SCREW

46

207-00-76770

MARK PLATE, PC350NLC

47

207-00-76780

MARK PLATE, PC350NLC

48

207-00-K1971

PLATE

|48

207-00-K1970

PLATE

49

207-00-K1940

PLATE, SPECIFICATION

50

09842-A0481

PLATE CAUTION

|51

20Y-00-K2980

DECAL KIT(ENGINE)

51

6271-81-2980

PLATE, FUEL HIGH PRESSURE

52

600-181-1930

PLATE, AIR CLEANER

53

206-00-K2990

DECAL, BLANKING

Выбрано товаров: 61
