/ / / / / 3-Я СТРЕЛА В СБОРЕ (№K77-)

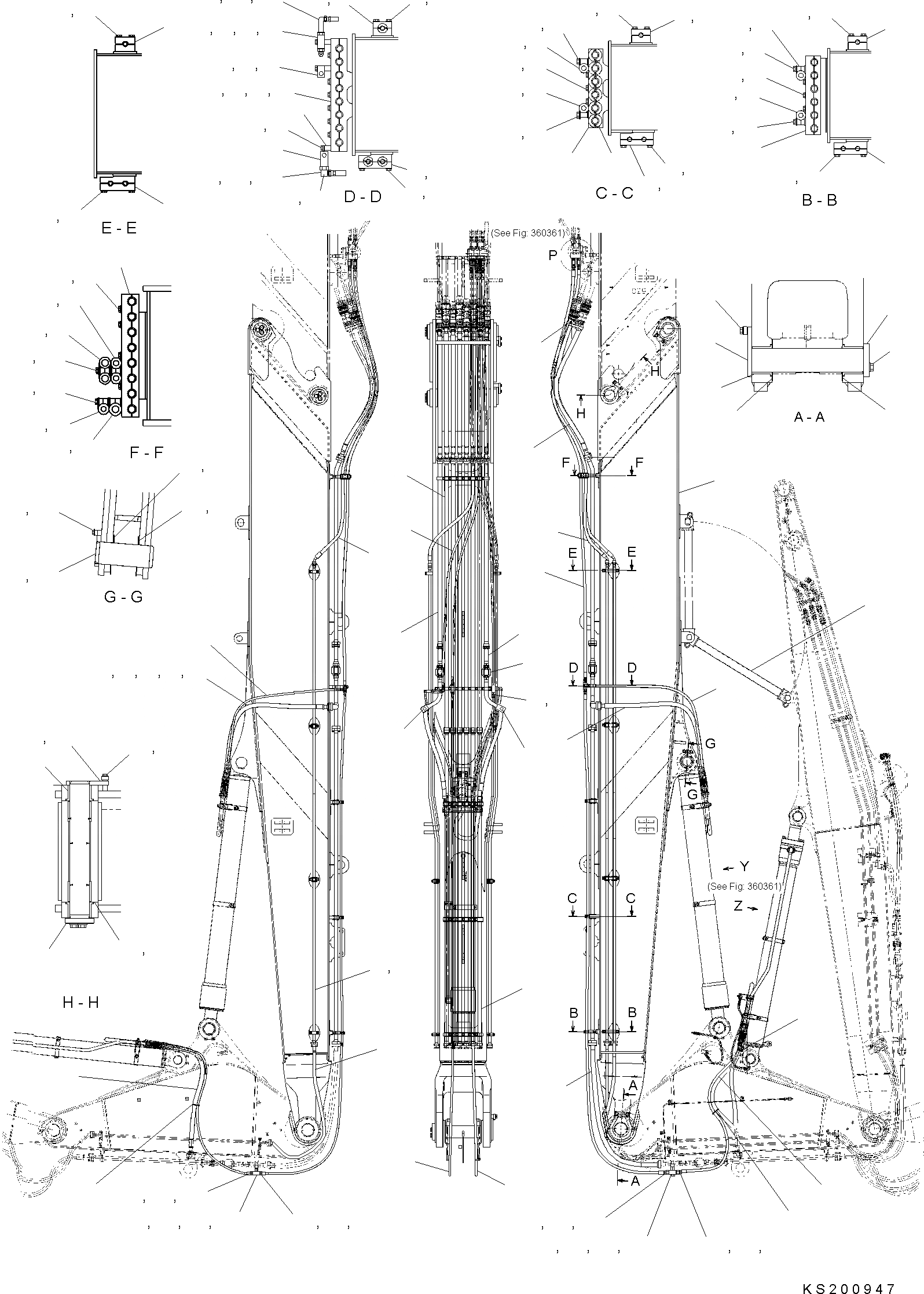

Запчасти Komatsu PC350LC 3-Я СТРЕЛА В СБОРЕ (№K77-)
111
109
110
63
64
62
61
64
63
67
66
67
66
61
62
65
92
91
96
95
65
79
78
77
72
96
95
92
91
83
82
80
44
43
47
46
40
39
38
37
90
89
90
89
74
76
75
94
93
94
93
73
45
41
42
56
57
58
54
55
60
59
108
107
106
54
55
56
57
86
85
58
60
59
34
36
35
134
133
100
98
138
101
99
131
139
156
132
103
102
140
157
158
105
104
3
159
135
135
101
97
136
90
89
137
4
30
145
146
5
24
1
6
7
145
146
144
143
8
70
68
69
71
142
141
16
128
14
129
10
130
112
9
11
15
12
23
22
21
20
19
113
13
81
82
84
16
148
147
19
149
150
17
16
2
20
18
21
22
23
154
155
151
48
50
152
25
153
26
51
27
52
28
49
53
114
29
30
31
32
33
87
88
116
115
125
123
122
116
120
119
118
117
121
123
124
127
126
123
120
119
118
117
123
126
127
1
207-70-KG322
BOOM
|1
207-70-KG321
BOOM
2
KV-B230-6190
BUSHING
3
KV-1B52-1131
BUSHING
4
07085-01015
HOSE
|4
07085-21015
HOSE
|4
07085-21013
HOSE
5
07000-13032
O-RING
6
07371-31049
FLANGE
7
07372-21035
BOLT
8
01643-51032
WASHER
9
207-62-KG420
TUBE
10
208-62-85980
TUBE
11
07371-31049
FLANGE
12
07372-21035
BOLT
13
01643-51032
WASHER
14
07000-13032
O-RING
15
208-62-86130
VALVE
16
07000-13029
O-RING
17
207-62-KG360
TUBE
18
207-62-KG370
TUBE
19
07085-21016
HOSE
20
07000-13032
O-RING
21
07371-31049
FLANGE
22
07372-21035
BOLT
23
01643-51032
WASHER
24
207-62-KB251
TUBE
25
207-62-KG340
TUBE
26
07000-13035
O-RING
27
01010-81045
BOLT
28
01643-31032
WASHER
29
07085-21015
HOSE
30
07000-13032
O-RING
31
07371-31049
FLANGE
32
07372-21035
BOLT
33
01643-51032
WASHER
34
207-62-KG380
CLAMP
35
01010-81260
BOLT
36
01643-31232
WASHER
37
207-62-88921
CLAMP
38
205-62-54622
SEAT
39
01010-81250
BOLT
40
01643-31232
WASHER
41
207-62-88891
CLAMP
42
205-62-54622
SEAT
43
01010-81250
BOLT
44
01643-31232
WASHER
45
207-62-88981
CLAMP
46
01010-81260
BOLT
47
01643-31232
WASHER
48
207-62-KG351
TUBE
49
07083-20515
HOSE
50
07000-13022
O-RING
51
07371-30500
FLANGE
52
01010-80830
BOLT
53
01643-30823
WASHER
54
207-62-88880
CLAMP
55
208-62-85780
CUSHION
56
01010-81250
BOLT
57
01643-31232
WASHER
58
207-62-88950
CLAMP
59
01010-81250
BOLT
60
01643-31232
WASHER
61
207-62-88690
CLAMP
62
208-62-85780
CUSHION
63
01010-81250
BOLT
64
01643-31232
WASHER
65
207-62-88960
CLAMP
66
01010-81250
BOLT
67
01643-31232
WASHER
68
02758-00529
HOSE
69
02758-00531
HOSE
70
02753-00439
HOSE
71
02753-00639
HOSE
72
KV-B240-8080
BLOCK
73
20Y-62-19330
ELBOW
74
198-33-12380
SPACER
75
01010-81275
BOLT
76
01643-31232
WASHER
77
01011-81215
BOLT
78
01011-81230
BOLT
79
01643-31232
WASHER
80
02781-00422
UNION
81
207-62-KF350
UNION
82
07002-12034
O-RING
83
02896-11009
O-RING
84
02896-61018
O-RING
85
07040-12012
PLUG
86
07002-12034
O-RING
87
02753-00448
HOSE
88
02753-00648
HOSE
89
07094-10620
CLAMP
90
07095-00627
CUSHION
91
01010-81290
BOLT
92
01643-31232
WASHER
93
01010-81295
BOLT
94
01643-31232
WASHER
95
07094-10417
CLAMP
96
07095-00420
CUSHION
97
07094-10518
CLAMP
98
07094-30417
CLAMP
99
07094-30518
CLAMP
100
07095-00420
CUSHION
101
07095-00526
CUSHION
102
01011-81245
BOLT
103
01643-31232
WASHER
104
01011-81250
BOLT
105
01643-31232
WASHER
106
206-62-73440
ELBOW
|106
11Y-62-12630
ELBOW
107
07002-12034
O-RING
108
02896-61018
O-RING
|108
02896-11012
O-RING
109
02781-10317
UNION
|109
02781-10311
UNION
110
07002-12034
O-RING
111
02896-11009
O-RING
112
02754-00317
HOSE
113
02753-00617
HOSE
|113
02753-00417
HOSE
114
02753-00323
HOSE
115
02753-00623
HOSE
|115
02753-00423
HOSE
116
08034-20536
BAND
117
KV-B240-8080
BLOCK
118
198-33-12380
WASHER
119
01010-81290
BOLT
120
01643-31232
WASHER
121
02781-00422
NIPPLE
122
02781-00315
NIPPLE
123
07002-12034
O-RING
124
02896-11012
O-RING
125
02896-11009
O-RING
126
207-62-KF350
NIPPLE
|126
02781-00422
NIPPLE
127
02896-61018
O-RING
|127
02896-11012
O-RING
128
KV-B230-1261
ROD
129
208-70-KD920
PIN
|129
KV-C120-3140
PIN
130
KV-C120-3150
PIN
131
207-70-83930
PIN
132
207-70-31230
PLATE
133
01010-81640
BOLT
134
01643-31645
WASHER
135
207-70-72391
SPACER
|135
207-70-72390
SPACER
136
207-70-72421
SPACER
|136
207-70-72420
SPACER
137
207-70-72431
SPACER
|137
207-70-72430
SPACER
138
KV-1B52-1140
HOLDER
139
01010-82055
BOLT
140
01643-32060
WASHER
141
208-70-61240
PIN
|141
207-70-31190
PIN
142
205-70-66580
PLATE
143
01010-81235
BOLT
144
01643-31232
WASHER
145
207-70-72371
SPACER
|145
207-70-72370
SPACER
146
207-70-72381
SPACER
|146
207-70-72380
SPACER
147
207-70-83920
PIN
148
205-70-71310
PLATE
149
01010-81240
BOLT
150
01643-31232
WASHER
151
KV-B230-6180
PLATE
152
01010-82055
BOLT
153
01643-32060
WASHER
154
20Y-70-11410
SPACER
155
20Y-70-11420
SPACER
156
207-62-KG220
FLANGE
157
07371-31049
FLANGE
158
07372-21035
BOLT
159
01643-51032
WASHER
