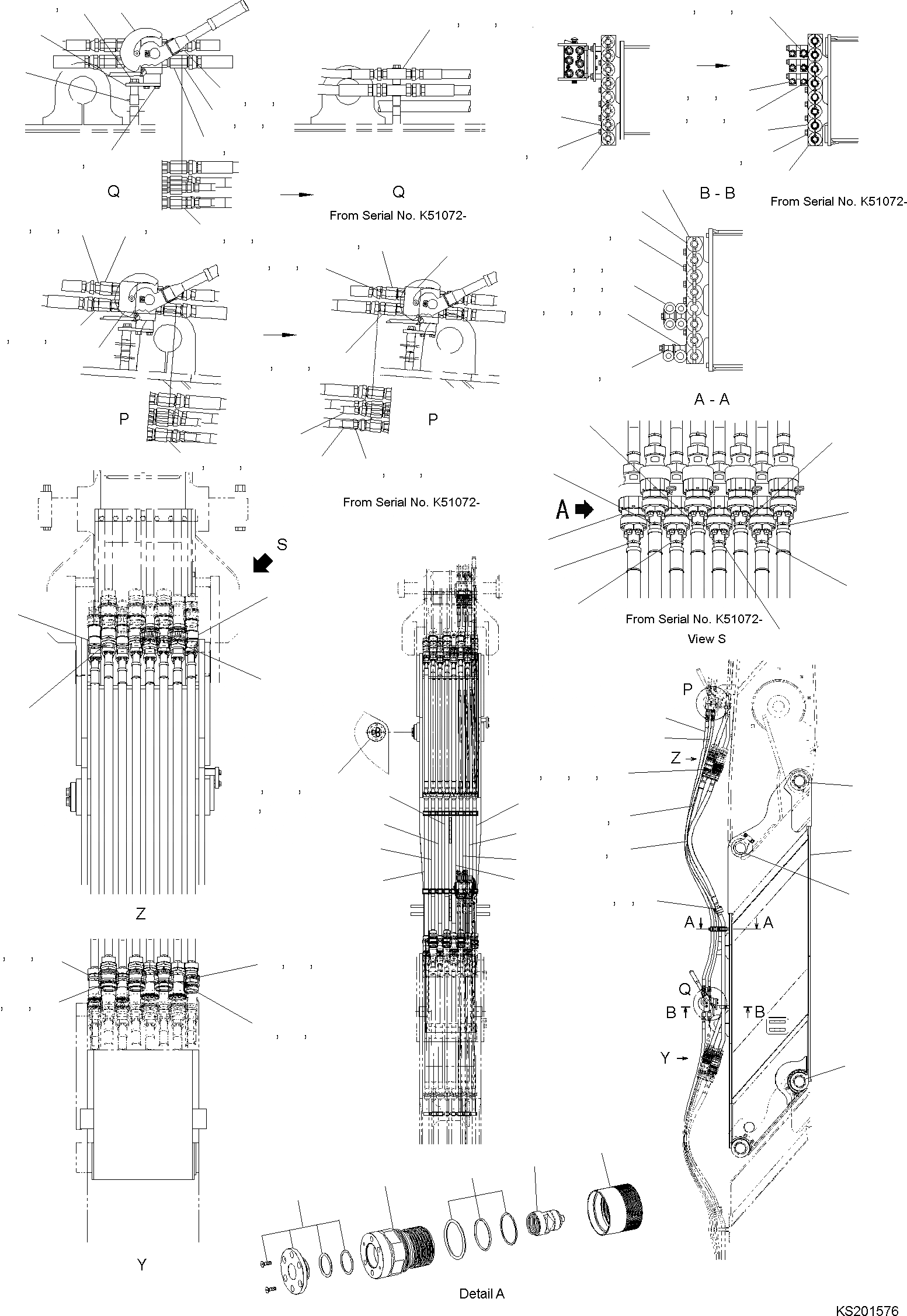

Запчасти Komatsu PC350LC 2-Я СТРЕЛА В СБОРЕ
№
Артикул
Название
Примечание
Количество
1
207-70-KG143
BOOM
|1
207-70-KG142
BOOM
|1
207-70-KG141
BOOM
|1
207-70-KG140
BOOM
2
07371-31049
FLANGE
3
07372-21040
BOLT
|3
07372-21035
BOLT
4
01643-51032
WASHER
5
07085-21014
HOSE
|5
07085-21013
HOSE
6
206-62-51650
HOSE
7
07000-13032
O-RING
8
207-62-KH930
TUBE
|8
207-62-KG310
TUBE
9
21P-62-K3280
BAND (BLACK)
10
207-62-KH930
TUBE
|10
207-62-KG290
TUBE
11
21P-62-K3260
BAND (BLUE)
12
207-62-KH930
TUBE
|12
207-62-KG310
TUBE
13
21P-62-K3240
BAND (RED)
14
207-62-KH930
TUBE
|14
207-62-KG320
TUBE
15
21P-62-K3270
BAND (WHITE)
16
207-62-KH930
TUBE
|16
207-62-KG280
TUBE
17
21P-62-K3290
BAND (GREEN)
18
207-62-KH930
TUBE
|18
207-62-KG290
TUBE
19
207-62-KH810
BAND (GREY)
20
207-62-KH930
TUBE
|20
207-62-KG280
TUBE
21
21P-62-K3310
BAND (BROWN)
22
207-62-KH930
TUBE
|22
207-62-KG290
TUBE
23
21P-62-K3250
BAND (YELLOW)
24
207-62-KG270
CLAMP
25
205-62-54622
SEAT
26
01010-81250
BOLT
|26
01010-81250
BOLT
27
01643-31232
WASHER
|27
01643-31232
WASHER
28
207-62-KG270
CLAMP
29
205-62-54622
SEAT
30
01010-81250
BOLT
31
01643-31232
WASHER
32
207-62-KG220
FLANGE
33
07371-31049
FLANGE
34
07372-21035
BOLT
35
01643-51032
WASHER
36
02753-00427
HOSE
36
02753-00426
HOSE
|36
02753-00426
HOSE
37
02753-00627
HOSE
|37
02753-00626
HOSE
38
02756-00527
HOSE
|38
02756-00526
HOSE
39
07094-30518
CLAMP
40
07095-00526
CUSHION
41
07094-30417
CLAMP
42
07095-00420
CUSHION
43
01011-81240
BOLT
44
01643-31232
WASHER
45
07094-10518
CLAMP
46
07095-00526
CUSHION
47
07094-10620
CLAMP
48
07095-00627
CUSHION
49
01011-81245
BOLT
50
01643-31232
WASHER
51
207-62-KE390
PLUG (QUICK COUPLER)
52
207-62-KE760
O-RING
53
207-62-KE440
CAP
54
207-62-KE380
SOCKET (QUICK COUPLER)
55
207-62-KE760
O-RING
56
207-62-KE430
CAP
57
207-62-KE370
PLUG (QUICK COUPLER)
58
207-62-KE760
O-RING
59
207-62-KE420
CAP
60
207-62-KE410
SOCKET (QUICK COUPLER)
61
207-62-KE760
O-RING
62
207-62-KE450
CAP
63
207-62-KE390
PLUG (QUICK COUPLER)
64
207-62-KE760
O-RING
65
207-62-KE440
CAP
66
207-62-KE380
SOCKET (QUICK COUPLER)
67
207-62-KE760
O-RING
68
207-62-KE430
CAP
69
207-62-KE410
SOCKET (QUICK COUPLER)
70
207-62-KE760
O-RING
71
207-62-KE450
CAP
72
207-62-KE370
PLUG (QUICK COUPLER)
73
207-62-KE760
O-RING
74
207-62-KE420
CAP
75
207-62-KB730
CONNECTOR (SEE PAGE 360450)
76
02781-00516
UNION
77
07002-12034
O-RING
78
02896-11015
O-RING
79
02781-00422
UNION
|79
02781-00422
UNION
80
07002-12034
O-RING
|80
07002-12034
O-RING
81
02896-11012
O-RING
|81
02896-11012
O-RING
82
207-62-KF350
NIPPLE
83
07002-12034
O-RING
84
02896-11012
O-RING
85
207-62-KB490
JOINT
86
207-62-KB471
SEAL
87
207-70-KC912
PLATE
|87
207-70-KC911
PLATE
88
01010-80850
BOLT
89
01643-30823
WASHER
90
01010-81280
BOLT
91
01643-31232
WASHER
92
120-54-42430
SPACER
93
207-62-KB740
CONNECTOR (SEE PAGE 360450)
94
207-62-KB490
JOINT
95
207-62-KB471
SEAL
96
02781-00516
UNION
|96
02781-00516
UNION
97
07002-12034
O-RING
|97
07002-12034
O-RING
98
02896-11015
O-RING
|98
02896-11015
O-RING
99
02780-00422
UNION
|99
02780-00422
UNION
|99
02780-00422
UNION
100
07002-12034
O-RING
|100
07002-12034
O-RING
|100
07002-12034
O-RING
101
02896-11012
O-RING
|101
02896-11012
O-RING
|101
02896-11012
O-RING
102
207-62-KF350
NIPPLE
|102
207-62-KF350
NIPPLE
103
07002-12034
O-RING
|103
07002-12034
O-RING
104
02896-11012
O-RING
|104
02896-11012
O-RING
105
KV-B230-6190
BUSHING
106
207-70-32150
BUSHING
107
KV-B230-6180
PLATE
108
01010-82055
BOLT
109
01643-32060
WASHER
110
20Y-70-11410
SPACER
111
20Y-70-11420
SPACER
112
207-70-83920
PIN
113
205-70-71310
PLATE
114
01010-81240
BOLT
115
01643-31232
WASHER
116
207-62-KH260
COUPLER
117
207-62-KH860
COUPLER
118
207-62-KH870
SEAL KIT
119
207-62-KH880
CARTRIDGE ASSEMBLY
120
207-62-KH890
FLANGE ASSEMBLY
121
207-62-KH620
CAP
122
KV-B240-8080
BLOCK
123
144-947-3490
SPACER
124
01011-81230
BOLT
125
01643-31232
WASHER
Выбрано товаров: 160
