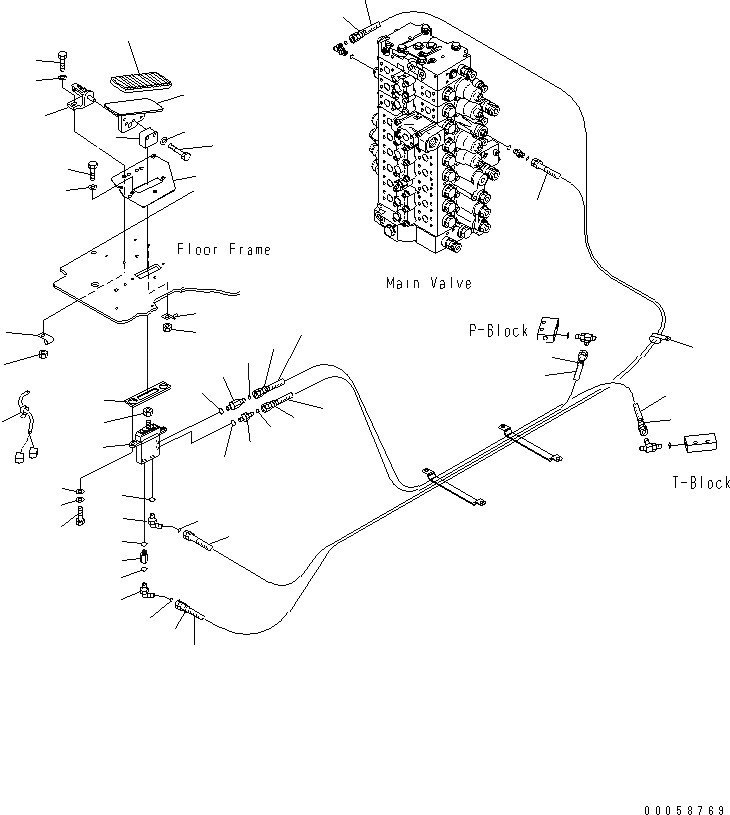

Запчасти Komatsu PC350LC КАБИНА (ПОЛ) (УПРАВЛ. НАВЕСН. ОБОРУД.)

1

702-16-04290

PILOT VALVE

2

22U-54-25660

SEAL

3

20Y-43-41760

SEAT

4

01010-81025

BOLT

5

01643-31032

WASHER

6

01643-31032

WASHER

7

20Y-62-25360

BRACKET

8

01010-D1035

BOLT

9

01643-71032

WASHER

10

20Y-53-14220

PEDAL

11

01010-D1045

BOLT

12

01643-71032

WASHER

13

22U-54-25541

PLATE

14

01010-81025

BOLT

15

01643-31032

WASHER

16

207-43-81240

CAP

17

20T-910-8660

NIPPLE

18

07000-12011

O-RING

19

21W-62-43980

ELBOW

20

02896-11008

O-RING

21

07000-12011

O-RING

22

20Y-62-43470

NIPPLE

23

02896-11008

O-RING

24

11Y-62-12140

NIPPLE

25

02896-11008

O-RING

26

07000-12011

O-RING

27

20Y-62-52330

HOSE 900MM

28

208-62-KE290

HOSE 2550MM

|28

207-62-KE660

HOSE2550MM

29

208-62-72480

HOSE 1080MM

30

20Y-62-22790

BAND RED

31

20Y-62-22810

BAND YELLOW

32

20Y-62-22820

BAND BLUE

33

04435-51210

CLIP

34

01583-11408

NUT

35

08193-21012

CLIP

36

01580-01008

NUT

37

08034-20536

BAND

38

04434-50610

CLAMP

39

01580-01008

NUT
