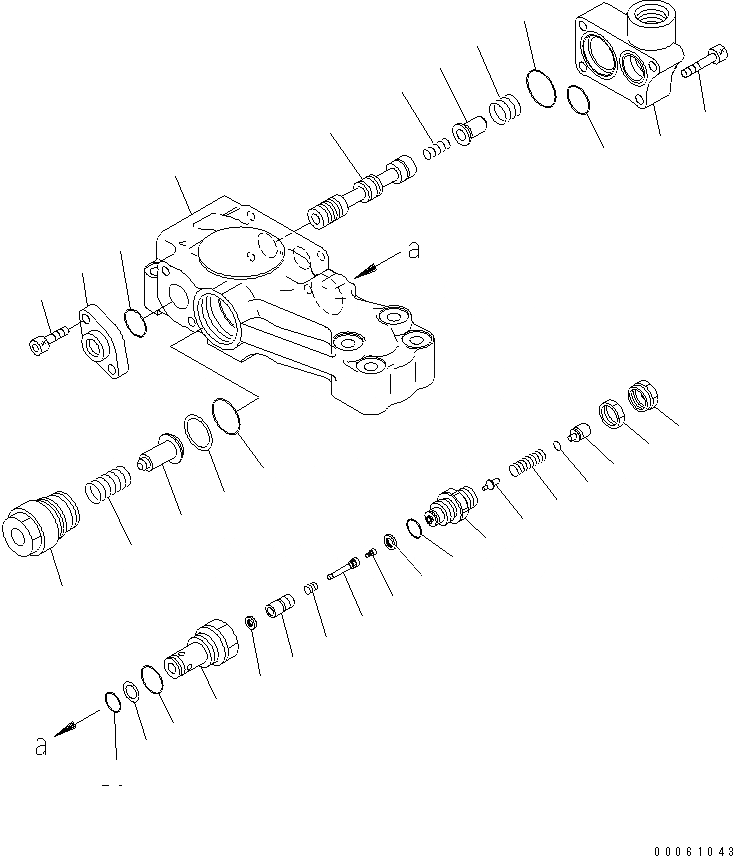

Запчасти Komatsu PC350LC-8 КЛАПАН ПЕРЕГРУЗКИ (ДЛЯ ЦИЛИНДРА СТРЕЛЫ) (ПРАВ.) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

1

702-21-08801

PILOT VALVE

|1

702-21-08800

PILOT VALVE

|1

BODY, VALVE

2

SPOOL

3

702-21-39480

CASE

4

702-21-39420

RETAINER 2.0MM

4

702-21-39460

RETAINER 2.3MM

4

702-21-39470

RETAINER 1.7MM

5

702-21-39430

FLANGE

6

702-21-39440

SPRING

7

702-21-39330

SPRING

8

709-62-31280

O-RING

9

702-21-39450

O-RING

10

702-21-38480

PLUG

11

01252-60835

BOLT

12

01252-60820

BOLT

13

07000-13028

O-RING

14

VALVE

15

709-94-91751

SPRING

16

700-93-11320

O-RING

17

700-93-11330

RING, BACK-UP

18

723-40-91500

VALVE ASSEMBLY, RELIEF

18

SLEEVE

19

700-80-64220

RING

20

700-22-11410

O-RING

21

SEAL

22

POPPET

23

PISTON

24

SEAT

25

SPRING

26

SEAL

27

709-25-11390

O-RING

28

POPPET

29

O-RING

30

PLUG

31

NUT

32

SPRING

33

O-RING

34

SPACER

35

NUT
