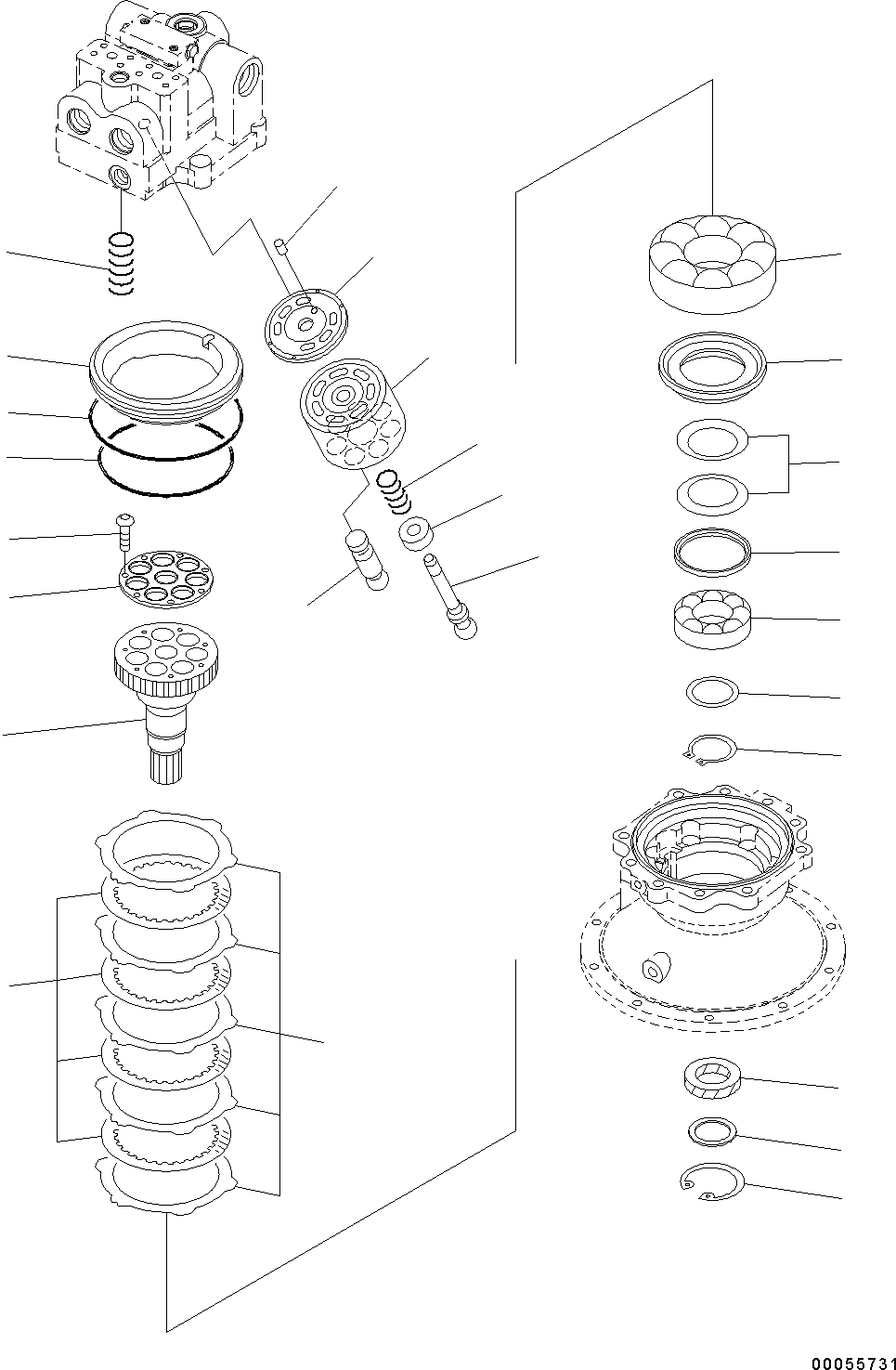

Запчасти Komatsu PC350LC-8 МЕХАНИЗМ ПОВОРОТА ВНУТР. ЧАСТИ (/) МЕХАНИЗМ ПОВОРОТА

|1

706-7K-01170

Swing Motor Assembly

|1

706-7K-01040

Swing Motor Assembly

|1

706-7K-03140

Motor Subassembly

|1

706-7K-03030

Motor Subassembly

1

706-7K-41610

Shaft

2

706-77-43890

Bearing

|2

706-77-43880

Bearing

3

706-7K-41810

Spacer

4

706-77-42051

Spring

5

706-77-42041

Seat

6

706-77-42890

Bearing

7

706-77-05010

Spacer Kit

|7

706-77-42440

Spacer, T=2.3mm

|7

706-77-42450

Spacer, T=2.5mm

|7

706-77-42460

Spacer, T=2.7mm

8

04064-06525

Ring, Snap, for Shaft Side

9

706-8J-41420

Seal, Oil

|9

706-7K-41650

Seal, Oil

10

706-7K-41920

Spacer

11

04065-07525

Ring, Snap, for Hole Side

12

706-7K-41210

Cylinder Block

13

706-7K-41710

Plate

14

708-18-13230

Pin

15

706-7K-41120

Shaft

16

706-77-42130

Ring

17

706-7K-41140

Spring

|18

706-7K-05010

Retainer Kit

20

706-7K-41160

Piston Subassembly

21

706-7K-91340

Plate

22

706-7K-91350

Disc

23

706-7K-91111

Brake Piston

24

07000-B5230

O-ring

|24

07000-15230

O-ring

25

706-86-90290

O-ring

|25

708-8H-15220

O-ring

26

706-7K-91360

Spring
