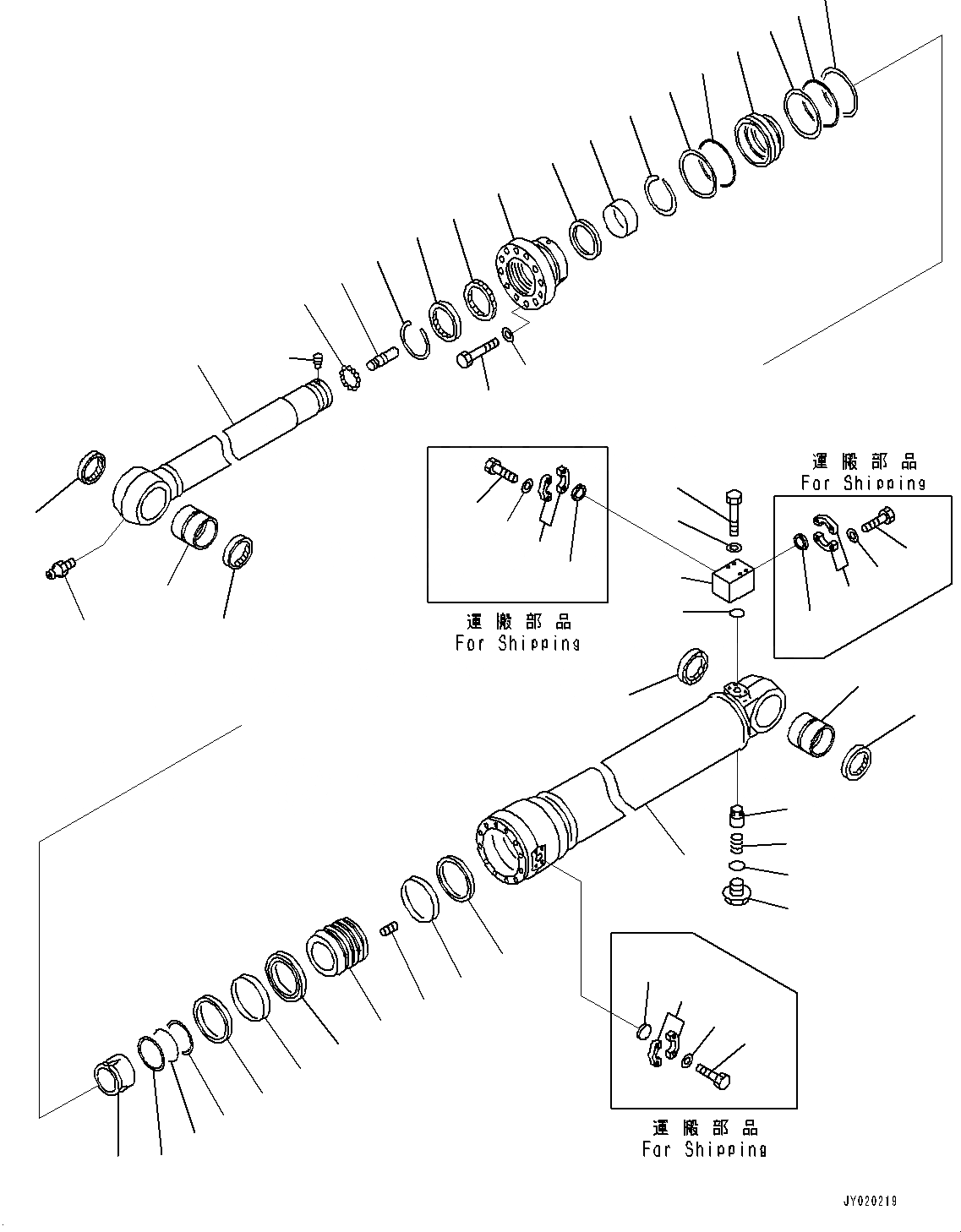

Запчасти Komatsu PC350LC-8 ЦИЛИНДР РУКОЯТИ, ВНУТР. ЧАСТИ (№9-) ЦИЛИНДР РУКОЯТИ, С ПРЕДОТВРАЩЕНИЕМ СМЕЩЕНИЯ КЛАПАН, ДЛЯ KAL

|$0

707-01-0A452

Cylinder Assembly

1

707-13-16710

Cylinder

2

707-58-11360

Rod, Piston

3

707-76-10290

Bushing

4

07145-00100

Seal, Dust, (Kit : K12)

5

707-76-10290

Bushing

6

07145-00100

Seal, Dust, (Kit : K12)

7

07020-00000

Fitting, Grease

8

707-71-32800

Collar

9

707-35-91640

Ring, Back-up, (Kit : K12)

10

07000-15150

O-ring, (Kit : K12)

11

707-71-61130

Plunger

12

707-71-70290

Plunger

13

04260-00635

Ball, Steel

14

707-71-91270

Cap

15

707-27-16571

Head, Cylinder

16

07179-13126

Ring, Snap

17

707-56-11740

Seal, Dust, (Kit : K12)

18

707-51-11030

Packing, Rod, (Kit : K12)

19

707-51-11640

Ring, Buffer, (Kit : K12)

20

707-52-90850

Bushing

21

07000-15150

O-ring, (Kit : K12)

22

707-35-91640

Ring, Back-up, (Kit : K12)

23

01010-82085

Bolt

24

707-88-75310

Washer

25

707-75-11040

Ring, Snap

26

707-36-16580

Piston

27

707-44-16180

Ring, Piston, (Kit : K12)

28

707-39-16120

Ring, Wear, (Kit : K12)

29

707-44-16910

Ring

30

07000-15100

O-ring, (Kit : K12)

31

07001-05100

Ring, Back-up, (Kit : K12)

32

01310-01216

Screw

33

707-83-13010

Valve

34

07750-01628

Spring

35

707-87-14070

Plug

36

07002-12034

O-ring, (Kit : K12)

37

707-86-11610

Block

38

01010-81095

Bolt

39

01643-31032

Washer

40

07000-13035

O-ring, (Kit : K12)

41

07371-31049

Flange, Split

42

707-88-33040

Cap

43

07372-21035

Bolt

44

01643-51032

Washer
