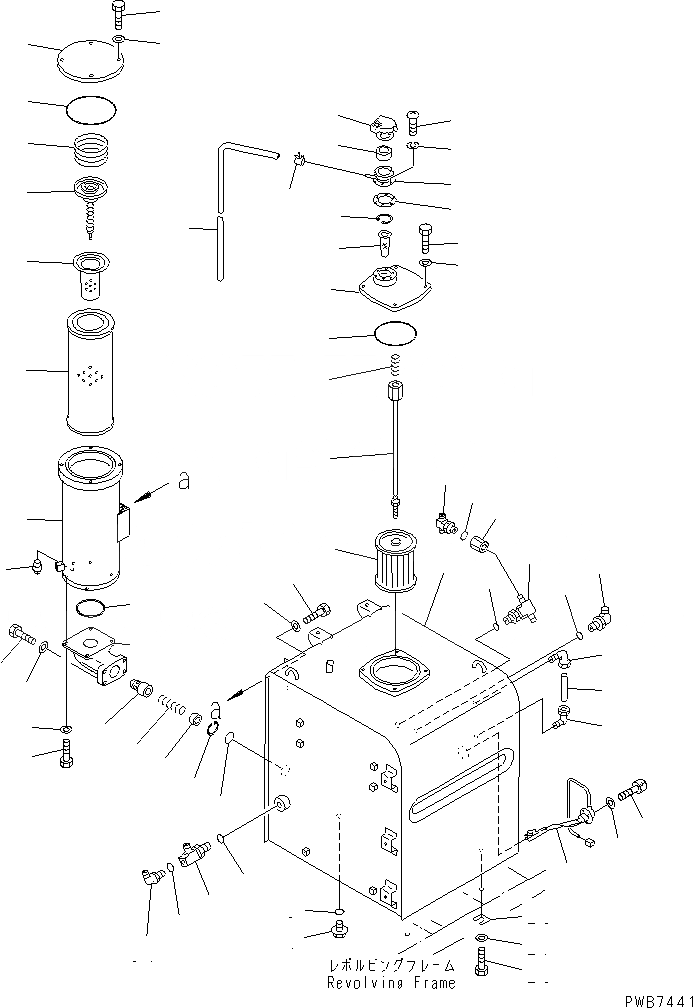

Запчасти Komatsu PC350LC-6 ГИДР. БАК.(№-) ГИДРАВЛИКА

|1

207-60-00110

HYDRAULIC TANK ASS'Y

1

TANK

2

203-60-31160

TUBE

3

203-60-31100

ELBOW ASS'Y

4

07044-12412

PLUG

5

07002-02434

O-RING

6

207-60-61171

COVER

7

07000-15180

O-RING

|7

07000-05180

O-RING

8

01010-81225

BOLT

9

01643-31232

WASHER

|10

207-60-61140

STRAINER ASS'Y

10

207-60-61150

ROD ASS'Y

11

12R-60-11230

SPRING

12

207-60-51200

STRAINER

13

17A-60-11310

CAP ASS'Y

14

20Y-60-21470

ELEMENT

15

20Y-60-21460

NECK

16

20Y-60-21340

GASKET

|16

205-60-66211

GASKET

17

01252-70516

BOLT

|17

01220-40516

SCREW

18

01601-20513

WASHER

19

07056-10045

STRAINER

20

04065-04718

RING

21

20Y-60-21190

TUBE

|21

07270-61512

TUBE

22

07285-00155

CLIP

23

7861-92-4210

SENSOR

|23

7861-91-4220

O-RING

24

01252-40612

BOLT

25

01641-20608

WASHER

26

01010-81635

BOLT

27

01643-31645

WASHER

28

195-03-11570

SHIM¤ 1.0MM

29

207-60-61310

CASE

30

205-60-71141

COVER

31

07000-15180

O-RING

32

01010-81230

BOLT

33

01643-31232

WASHER

34

07069-34057

SPRING

|34

12R-60-11390

SPRING

35

07069-05400

VALVE ASS'Y

|35

12R-60-11300

VALVE ASS'Y

36

07069-25400

STRAINER

|36

206-60-41221

STRAINER

37

20Y-60-21510

ELEMENT

38

205-60-71230

POPPET

39

706-76-71190

SPRING

40

04065-05020

RING

41

207-60-51170

SPACER

42

07042-30211

PLUG

43

208-60-61321

BRACKET

|43

208-60-61320

BRACKET

44

01010-81025

BOLT

|44

01010-81030

BOLT

45

01643-31032

WASHER

46

07000-12095

O-RING

47

01010-81230

BOLT

48

01643-31232

WASHER

49

07000-12060

O-RING

50

01010-81245

BOLT

51

01643-31232

WASHER

52

207-62-62780

TEE

53

07002-12434

O-RING

54

07235-10522

ELBOW

55

07002-12434

O-RING

56

07236-11034

ELBOW

57

07002-13334

O-RING

58

209-62-27580

TEE

59

07002-12034

O-RING

60

20Y-62-21880

JOINT

61

209-62-27580

TEE

62

07002-12034

O-RING
