Запчасти Komatsu PC350-7-AA БЛОК В СБОРЕ (ОХЛАЖД-Е) (С КОНДИЦИОНЕРОМ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

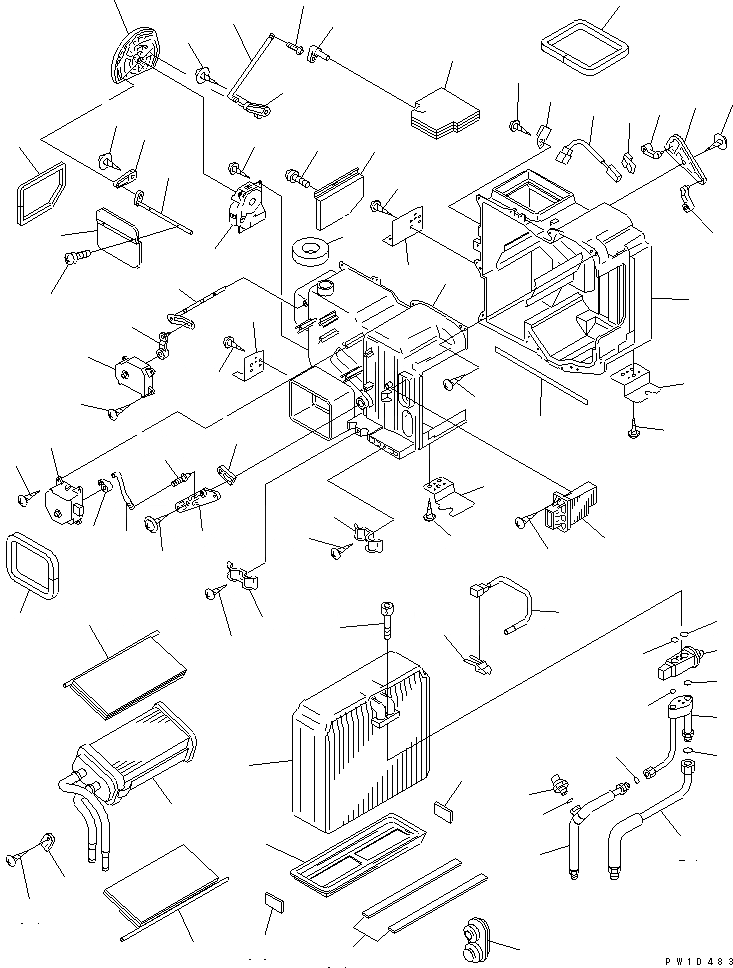

Схема запчастей Komatsu PC350-7-AA - БЛОК В СБОРЕ (ОХЛАЖД-Е) (С КОНДИЦИОНЕРОМ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
47
47
48
48
49
50
51
52
52
53
53
53
53
53
54
55
55
55
55
55
56
57
57
58
59
60
61
62
63
64
65
66
66

Артикул

Название

Примечание

Количество

|1

ND448800-5222

UNIT ASS'Y,COOLING

1

ND245450-2221

CASE,COOLING

2

ND245450-1721

CASE,COOLING

3

ND116569-5010

PLATE

4

ND447600-4970

EVAPORATOR

5

ND949142-0030

O-RING

6

ND116120-7990

CORE ASS'Y,HEATER

7

ND447500-1390

VALVE,EXPANSION

8

ND949046-2150

BOLT

9

ND446870-5650

TUBE,ACCESSORY

10

ND949142-0030

O-RING

11

ND949142-0010

O-RING

12

ND077500-0710

THERMISTOR

13

ND246690-2840

CLAMP

14

ND116650-8800

DOOR ASS'Y

15

ND116650-8820

DOOR ASS'Y

16

ND116650-8840

DOOR ASS'Y

17

ND116640-4652

DAMPER ASS'Y

18

ND443440-0030

SWITCH,PRESSURE

19

ND949142-0040

O-RING

20

ND446830-3880

TUBE

21

ND446810-9520

TUBE,SUCTION

22

ND949142-0030

O-RING

23

ND146678-4930

PACKING

24

ND949321-9940

GROMMET

25

ND246770-6990

CLAMP,PIPING

26

ND017231-1400

CLAMP

27

ND017660-3490

BRACKET

28

ND170400-4310

SENSOR ASS'Y,THERMO

29

ND146690-6020

CLAMP

30

ND246634-6010

BRACKET

31

ND499300-2051

I.C. POWER

32

ND063700-7200

SERVO MOTOR ASS'Y

33

ND063700-7210

SERVO MOTOR ASS'Y

34

ND116569-5020

PLATE

35

ND116682-0930

LEVER

36

ND116682-0960

LEVER

37

ND116662-4850

SHAFT

38

ND116569-5030

PLATE

39

ND116682-0940

LEVER

40

ND116682-0951

LEVER

41

ND116569-5041

PLATE

42

ND116569-5051

PLATE

43

ND116662-4860

SHAFT

44

ND116569-5062

PLATE

45

ND116682-0920

LEVER

46

ND116682-0910

LEVER

47

ND949008-0460

SCREW,TAPPING

48

17M-911-3290

CLAMP

49

ND146535-1311

BRACKET

50

ND146535-0411

BRACKET

51

ND146525-6070

BRACKET

52

ND91310-03081

SCREW,WASHER

53

ND949001-1730

SCREW,TAPPING

54

ND90930-05121

SCREW,TAPPING

55

ND90930-06141

SCREW,TAPPING

56

ND146535-0421

BRACKET

57

ND90930-05161

SCREW,TAPPING

58

ND116682-3440

LEVER

59

ND017730-8380

LEVER,CONTROL

60

ND116660-2770

DOOR ASS'Y

61

ND146698-6930

PACKING

62

ND146698-6950

PACKING

63

ND146698-8480

PACKING

64

ND146637-5650

PACKING

65

ND146647-0712

PACKING

66

ND146647-3880

PACKING

Выбрано товаров: 67
