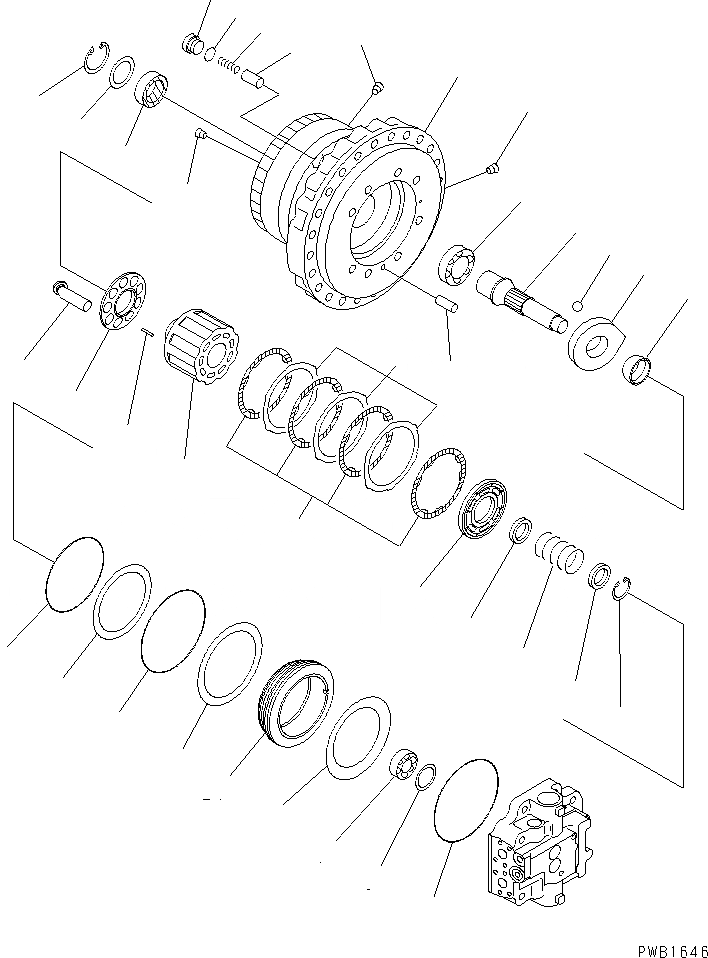

Запчасти Komatsu PC350-6 МОТОР ХОДА (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-8H-00270

MOTOR ASS'Y

|1

708-8H-04680

CASE SUB ASS'Y

1

CASE,MOTOR

2

PLUG

3

708-8H-31210

O-RING

4

04020-01228

PIN

5

708-8H-32111

SHAFT

6

708-8H-32150

BEARING

7

708-8H-32140

BEARING

8

708-8H-05030

SPACER KIT

|8

SPACER¤ 1.6MM

|8

SPACER¤ 1.7MM

|8

SPACER¤ 1.8MM

|8

SPACER¤ 1.9MM

|8

SPACER¤ 2.0MM

|8

SPACER¤ 2.1MM

|8

SPACER¤ 2.2MM

9

708-1F-12281

SEAL

10

708-8H-32160

SPACER

11

04065-07825

RING,SNAP

12

708-8H-33112

BLOCK,CYLINDER

13

708-8H-33220

PLATE,VALVE

14

708-8H-33360

PIN

15

708-8H-33141

SPACER

16

708-7H-13150

SPRING

17

04065-06020

RING

18

708-8H-33340

RETAINER,SHOE

19

708-8H-33512

RETAINER

20

708-8H-33610

PISTON SUB ASS'Y

21

708-8H-33431

CAM,ROCKER

22

04260-02857

BALL

23

708-8H-34142

PISTON

24

708-8H-34151

SPRING

25

708-8K-14210

PLUG

26

07002-13334

O-RING

27

708-8H-35141

PISTON,BRAKE

28

07000-15175

O-RING

29

07001-05175

RING,BACK-UP

30

07000-15195

O-RING

31

07001-05195

RING,BACK-UP

32

708-8H-35150

SPRING

33

708-8H-35130

PLATE

34

708-8H-35120

DISC
