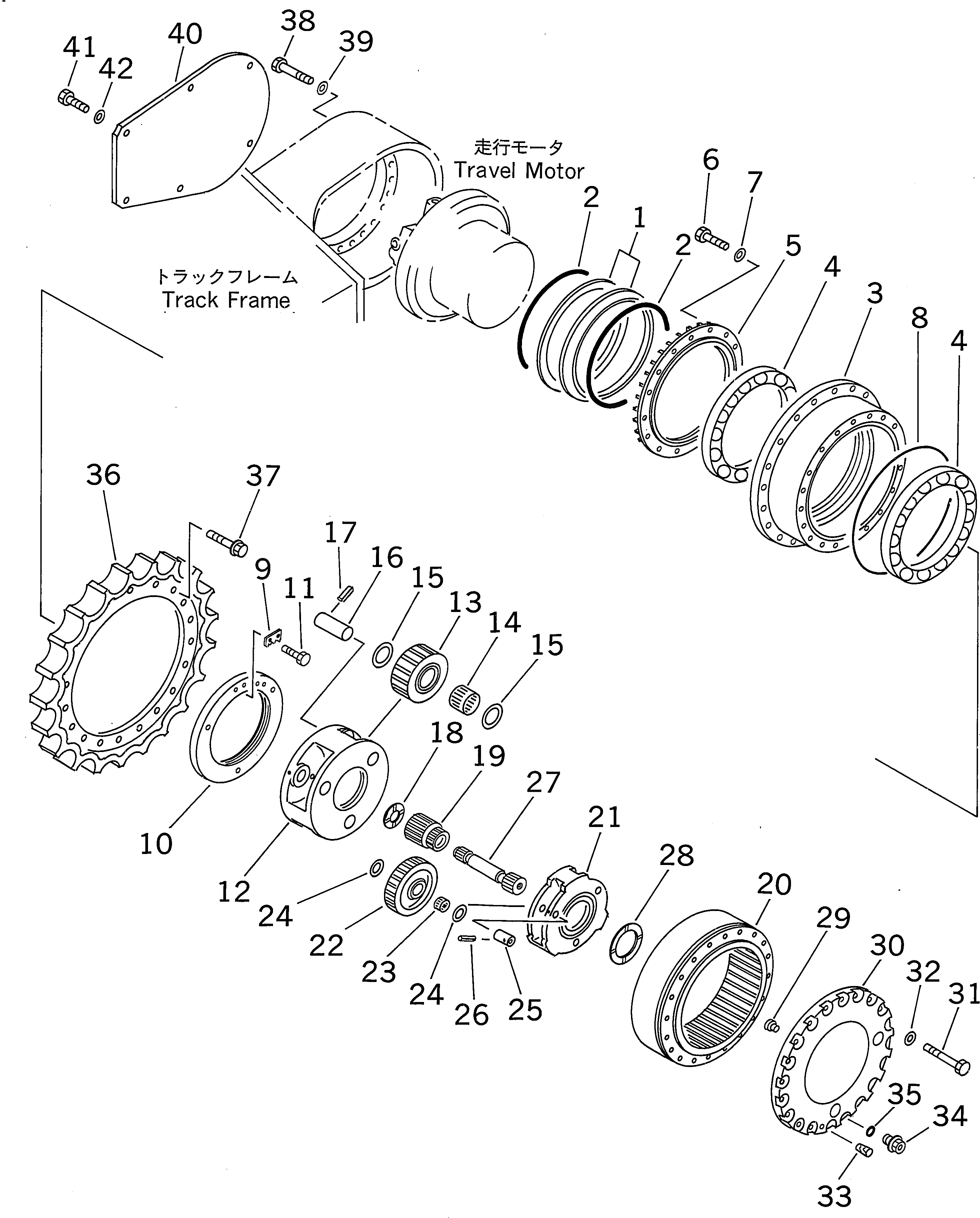

Запчасти Komatsu PC350-6 КОНЕЧНАЯ ПЕРЕДАЧА(№-999) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|1

170-27-00025

FLOATING SEAL ASS'Y

|1

170-27-00024

FLOATING SEAL ASS'Y

1

RING

|1

RING

2

O-RING

3

207-27-62191

HUB

|3

207-27-62190

HUB

4

207-27-61310

BEARING

5

207-27-51292

COVER

|5

207-27-51291

COVER

6

01010-51030

BOLT

7

01643-31032

WASHER

8

207-27-52350

O-RING

9

207-27-61270

LOCK

10

207-27-61261

NUT

|10

207-27-61260

NUT

11

01010-51020

BOLT

12

207-27-62170

CARRIER

13

207-27-62140

GEAR

14

207-27-61230

BEARING

15

20Y-27-21250

WASHER

16

207-27-61250

PIN

17

20Y-27-21290

PIN

18

20Y-27-13310

WASHER

19

207-27-62130

GEAR

20

207-27-62150

GEAR

21

207-27-62160

CARRIER

22

207-27-62120

GEAR

23

207-27-61220

BEARING

24

20Y-27-21240

WASHER

25

207-27-61240

PIN

26

20Y-27-21280

PIN

27

207-27-61110

SHAFT

28

20Y-27-11250

SPACER

29

207-27-61280

BUTTON

30

207-27-62180

COVER

31

207-27-52341

BOLT

32

01643-31845

WASHER

33

07049-01215

PLUG

34

07044-12412

PLUG

35

07002-02434

O-RING

36

207-27-61210

SPROCKET

37

207-27-51311

BOLT

38

01010-52085

BOLT

39

01643-32060

WASHER

40

207-30-61240

COVER

41

01010-51640

BOLT

42

01643-31645

WASHER
