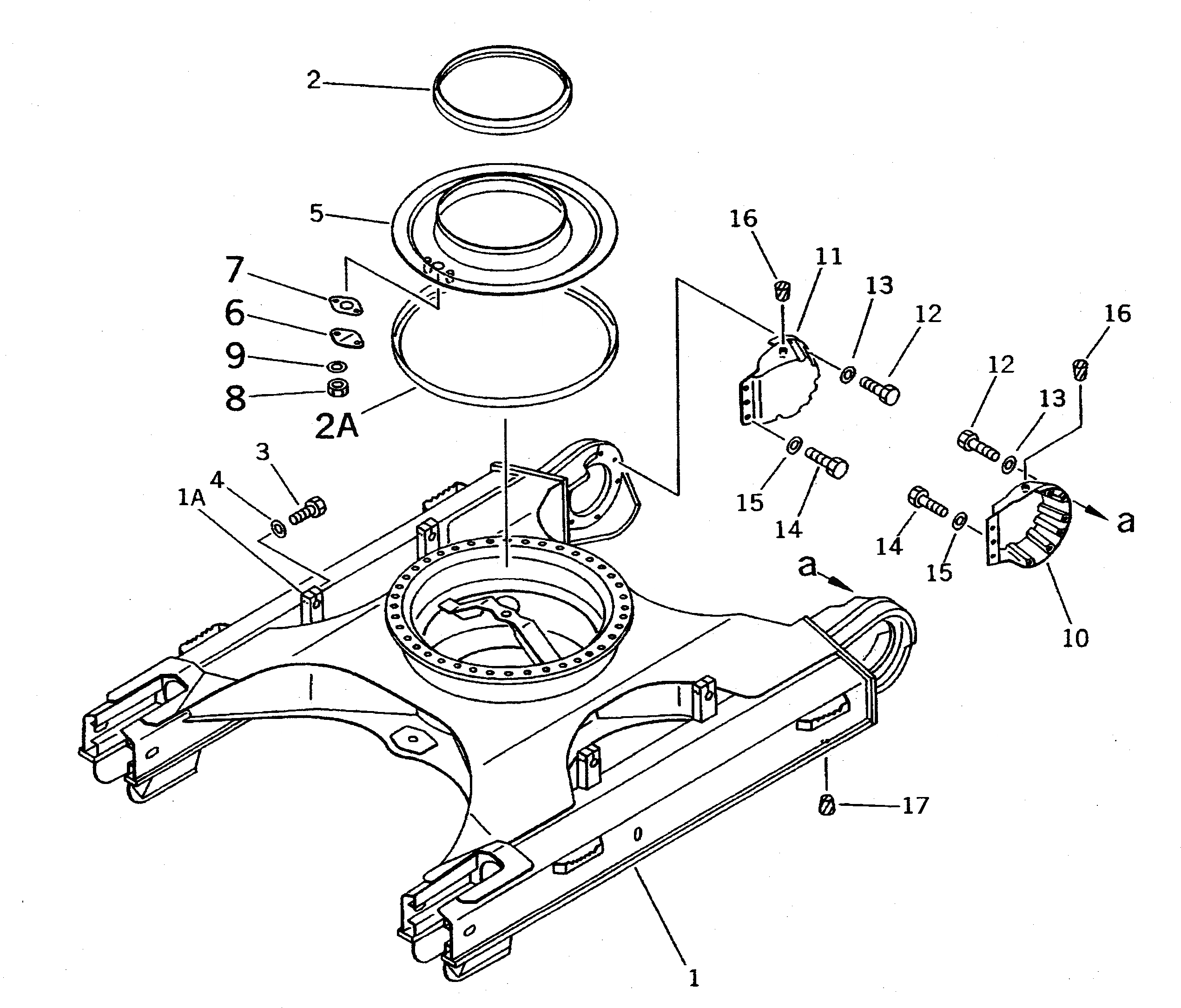

Запчасти Komatsu PC310-5 ГУСЕНИЧНАЯ РАМА(№-9) ХОДОВАЯ

G-1

207-30-X2240

FRAME GROUP

1

207-30-51183

FRAME

|1

207-30-51182

FRAME

|1

207-30-51181

FRAME

1A

207-30-51270

PLATE (WELDED)

2

205-30-71170

SEAL

2A

207-30-51260

SEAL

3

01011-32000

BOLT

|3

01011-52000

BOLT

4

01643-32060

WASHER

G-2

207-30-X2260

COVER GROUP

5

207-30-51211

COVER

6

205-30-71181

COVER

7

205-30-71191

GASKET

8

01580-11008

NUT

9

01643-31032

WASHER

G-3

207-30-X2270

FINAL COVER GROUP

10

207-30-51241

CASE,L.H.

11

207-30-51251

CASE,R.H.

12

01010-51255

BOLT

13

01643-31232

WASHER

14

01010-51240

BOLT

15

01643-31232

WASHER

16

07049-01215

PLUG

17

07049-02430

PLUG,(FOR W/O. FULL ROLLER GUARD)
