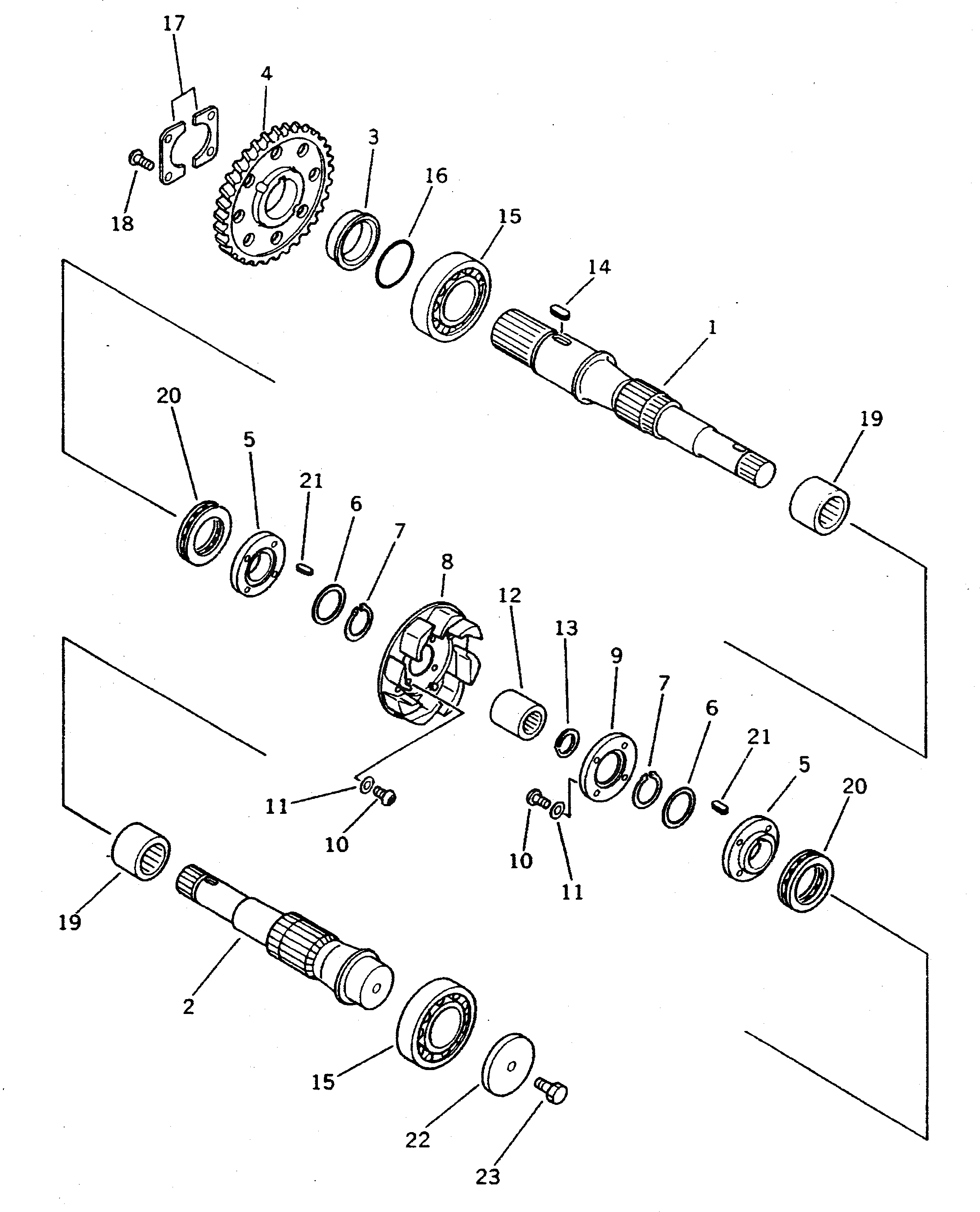

Запчасти Komatsu PC310-5 ГИДР. НАСОС. (7/) (НАСОС SUB В СБОРЕ) (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-27-04013

HYDRAULIC PUMP ASS'Y

|1

708-27-04012

HYDRAULIC PUMP ASS'Y

|1

708-27-04011

HYDRAULIC PUMP ASS'Y

|1

708-27-04113

PUMP ASS'Y

|1

708-27-04112

PUMP ASS'Y

|1

708-27-04111

PUMP ASS'Y

1

708-27-12711

SHAFT,FRONT

2

708-27-12721

SHAFT,REAR

3

708-27-12750

COLLAR

4

708-27-14410

GEAR

5

708-27-12621

SPACER

6

708-27-05020

SPACER KIT

|6

SPACER

|6

SPACER

|6

SPACER

|6

SPACER

|6

SPACER

7

708-27-12680

RING

8

708-27-12690

IMPELLER

9

708-27-12860

PLATE

10

708-23-12350

SCREW

11

01643-30823

WASHER

12

708-27-12811

COUPLING

13

708-27-12820

RING

14

04000-01020

KEY

15

708-27-12730

BEARING

16

07000-02060

O-RING

17

708-27-05030

SPACER KIT

|17

SPACER

|17

SPACER

|17

SPACER

|17

SPACER

|17

SPACER

18

708-27-12960

SCREW

19

708-27-12880

BEARING

20

06000-51109

BEARING,THRUST

21

04000-00515

KEY

22

708-27-12780

PLATE

23

708-27-14490

BOLT
