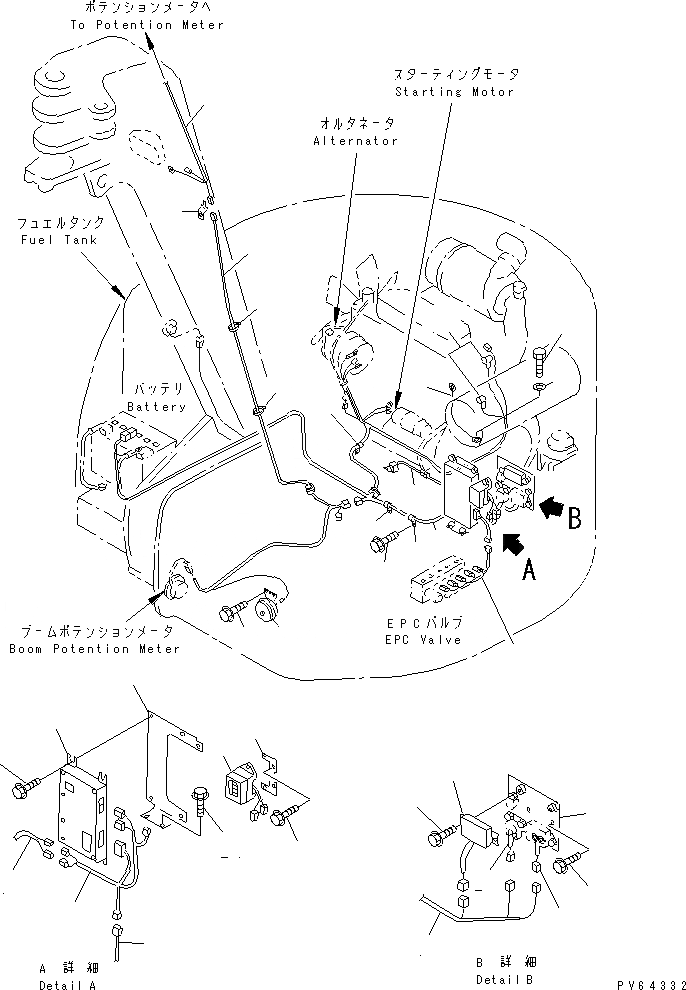

Запчасти Komatsu PC30UU-3 ЭЛЕКТР. ЭЛЕКТРОПРОВОДКА ЭЛЕКТРИКА

1

21U-06-31350

WIRING HARNESS

2

21U-06-31391

WIRING HARNESS

3

21U-06-31440

WIRING HARNESS

|3

21U-06-31450

PLATE

|3

20P-06-71150

BOX,FUSE

|3

201-06-61240

FUSE¤ 30A

|3

22W-06-13160

FUSE¤ 20A

4

21U-06-31920

WIRING HARNESS

|4

21U-06-33221

WIRING HARNESS

|4

21U-06-31344

WIRING HARNESS

|4

20T-06-81230

FUSIBLE LINK

5

08036-02514

CLIP

6

01435-01020

BOLT

7

20N-06-71430

CABLE

8

01010-81020

BOLT

9

01643-31032

WASHER

10

21U-06-31931

WIRING HARNESS

11

21U-06-31372

WIRING HARNESS

12

21U-06-31520

WIRING HARNESS

13

08053-00910

CLIP

14

21U-06-31940

WIRING HARNESS

|14

21U-06-31381

WIRING HARNESS

15

08160-61200

HORN

16

01435-00610

BOLT

17

21U-06-21550

WIRE ASS'Y

|17

20U-06-21260

SWITCH

18

08034-00536

BAND

19

7824-67-4001

CONTROLLER

20

01435-00820

BOLT

21

7824-65-2400

RESISTOR

22

01435-00812

BOLT

23

08038-10519

CAP

24

21U-06-31181

BRACKET

25

21U-06-31190

BRACKET

26

21U-06-31221

BRACKET

27

01435-00820

BOLT
