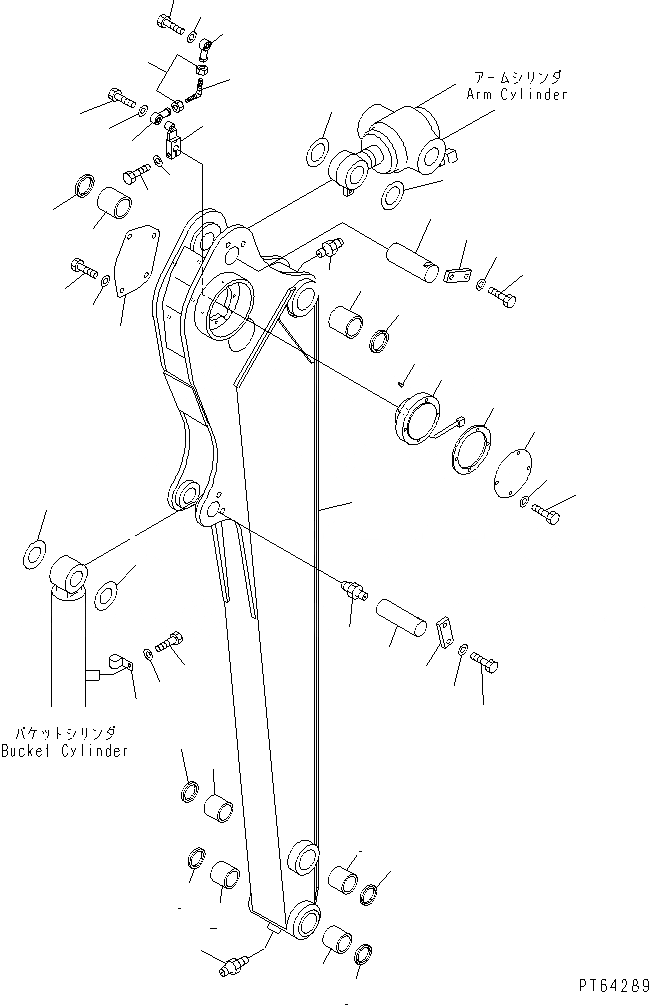

Запчасти Komatsu PC30UU-3 РУКОЯТЬ (УДЛИНН.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

21U-943-3102

ARM ASS'Y,LONG

1

ARM,LONG

2

20S-70-71880

BUSHING

3

20S-70-11270

BUSHING

4

21U-70-31640

BUSHING

5

07145-00040

SEAL,DUST

6

07145-00035

SEAL,DUST

7

07020-00000

FITTING,GREASE

8

21U-70-31631

PIN

9

21U-70-11740

SPACER¤ 1.0MM

10

04082-00212

LOCK

11

01010-81230

BOLT

12

01643-31232

WASHER

|13

22L-70-10150

PIN ASS'Y

13

22L-70-11231

PIN

14

07020-00000

FITTING,GREASE

15

20N-70-41270

SPACER¤ 1.0MM

16

04082-00212

LOCK

17

01010-81230

BOLT

18

01643-31232

WASHER

19

7861-92-8510

POTENTIOMETER

20

21U-70-31931

LEVER

21

04010-00310

KEY

22

21U-70-21970

BOLT

23

01643-30823

WASHER

24

21U-70-31841

PLATE

25

21U-70-31851

SPACER

26

01010-80640

BOLT

27

01643-30623

WASHER

28

21U-70-31941

COVER

29

01010-81020

BOLT

30

01643-31032

WASHER

|31

21U-70-31911

ROD ASS'Y

31

21U-70-31921

ROD

32

01580-10806

NUT

33

04250-80847

END,ROD

34

01010-80830

BOLT

35

01643-30823

WASHER

36

04434-52210

CLIP

37

01010-81020

BOLT

38

01643-31032

WASHER
