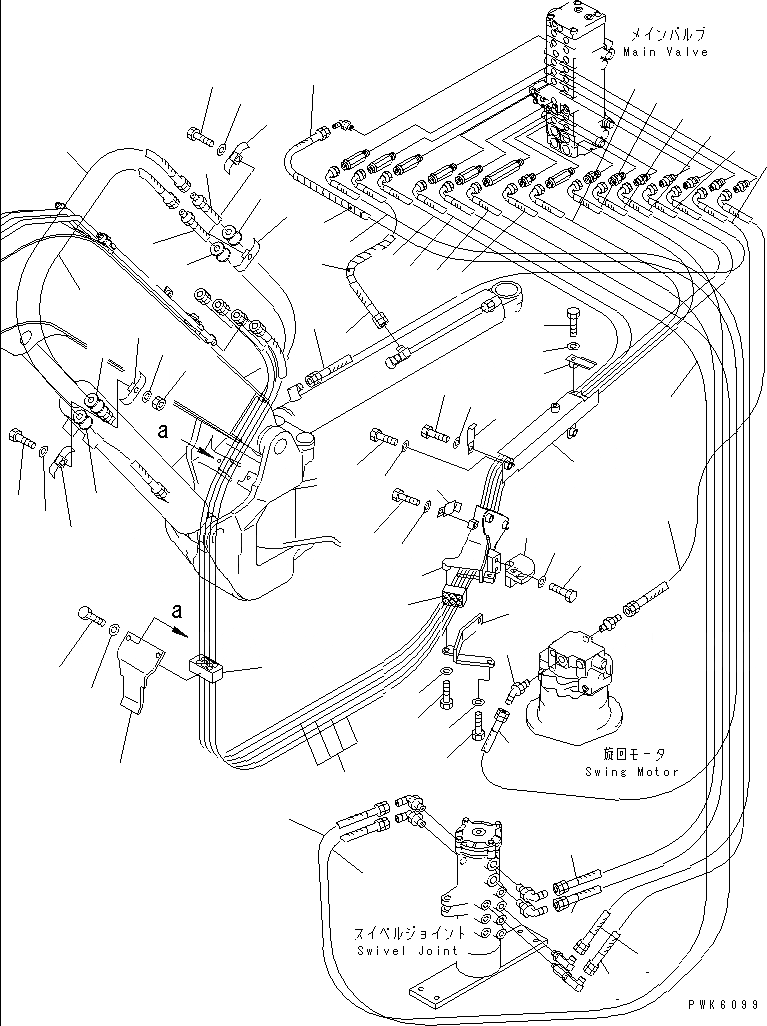

Запчасти Komatsu PC30R-8 ACTUATER ЛИНИЯ (ОСНОВН. ЛИНИЯ И ШЛАНГИ КРЕПЛЕНИЕ) (ДЛЯ PAT)(№9-) ГИДРАВЛИКА

1

20S-62-81630

HOSE

2

20S-62-81580

HOSE

3

20S-62-81620

HOSE

4

20T-62-84410

HOSE

5

20S-62-84390

HOSE

6

20T-62-81940

HOSE

7

20T-62-81950

HOSE

8

20T-62-83940

HOSE, 1200MM

9

20T-62-81290

HOSE

10

20T-62-81570

HOSE, 1100MM

11

203-62-32440

COVER

11A

20S-62-81610

ELBOW

12

20S-62-81653

BRACKET

12A

20S-62-81670

BRACKET

13

01010-81235

BOLT

14

01643-31232

WASHER

15

20S-62-81663

PLATE

16

20S-62-81711

CUSHION

16A

01010-81025

BOLT

17

01010-81030

BOLT

18

01643-31032

WASHER

19

20S-62-81870

PLATE

20

01010-81040

BOLT

21

01643-31032

WASHER

22

20T-62-81882

BRACKET

23

01010-81020

BOLT

24

01643-31032

WASHER

25

20S-62-82141

CUSHION

26

20S-62-82151

COVER

27

01010-81030

BOLT

28

01643-31032

WASHER

29

20S-62-81560

HOSE

30

20S-62-81570

HOSE

31

07095-00317

CUSHION

32

20S-62-84480

CLAMP

33

07094-30315

CLAMP

34

01010-81055

BOLT

35

01643-31032

WASHER

36

01580-11008

NUT

37

20S-62-84490

BRACKET

38

01010-81235

BOLT

39

01643-31232

WASHER
