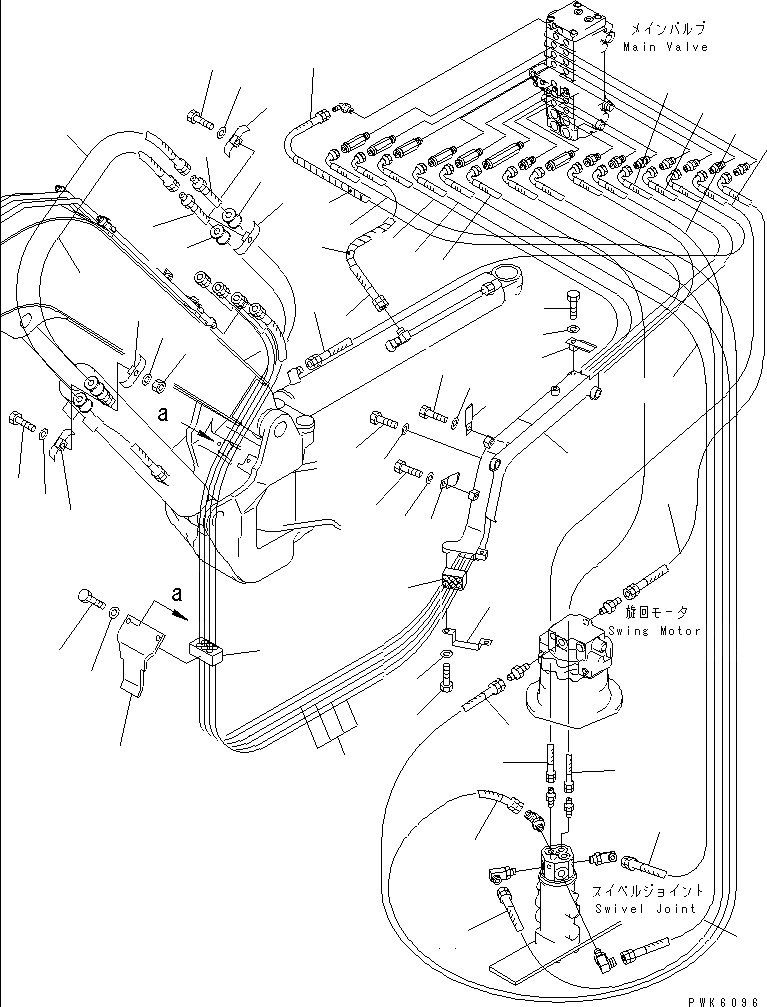

Запчасти Komatsu PC30R-8 ACTUATER ЛИНИЯ (ОСНОВН. ЛИНИЯ И ШЛАНГИ КРЕПЛЕНИЕ)(№-9) ГИДРАВЛИКА

1

20S-62-81630

HOSE

2

20S-62-81580

HOSE

3

20S-62-81620

HOSE

4

20T-62-84410

HOSE

5

20T-62-84390

HOSE

6

20T-62-81940

HOSE

7

20T-62-81950

HOSE

8

20T-62-81960

HOSE

9

20T-62-81540

HOSE

10

20T-62-81290

HOSE

11

20T-62-81970

HOSE

12

20T-62-81980

HOSE

13

20T-62-84220

HOSE

13A

203-62-32440

COVER

14

20S-62-81652

BRACKET

14

20S-62-81651

BRACKET

15

01010-81235

BOLT

16

01643-31232

WASHER

17

20S-62-81662

PLATE

17

20S-62-81661

PLATE

18

20S-62-81711

CUSHION

19

01010-81020

BOLT

19

01010-81020

BOLT

20

01643-31032

WASHER

20

01643-31032

WASHER

21

20S-62-81870

PLATE

22

01010-81040

BOLT

23

01643-31032

WASHER

24

20S-62-81881

BRACKET

24

20S-62-81880

BRACKET

25

01010-81020

BOLT

26

01643-31032

WASHER

27

20S-62-82141

CUSHION

28

20S-62-82151

COVER

29

01010-81030

BOLT

30

01643-31032

WASHER

31

20S-62-81560

HOSE

32

20S-62-81570

HOSE

33

07095-00317

CUSHION

33A

20S-62-84480

CLAMP

34

07094-30315

CLAMP

35

01010-81055

BOLT

36

01643-31032

WASHER

37

01580-11008

NUT
