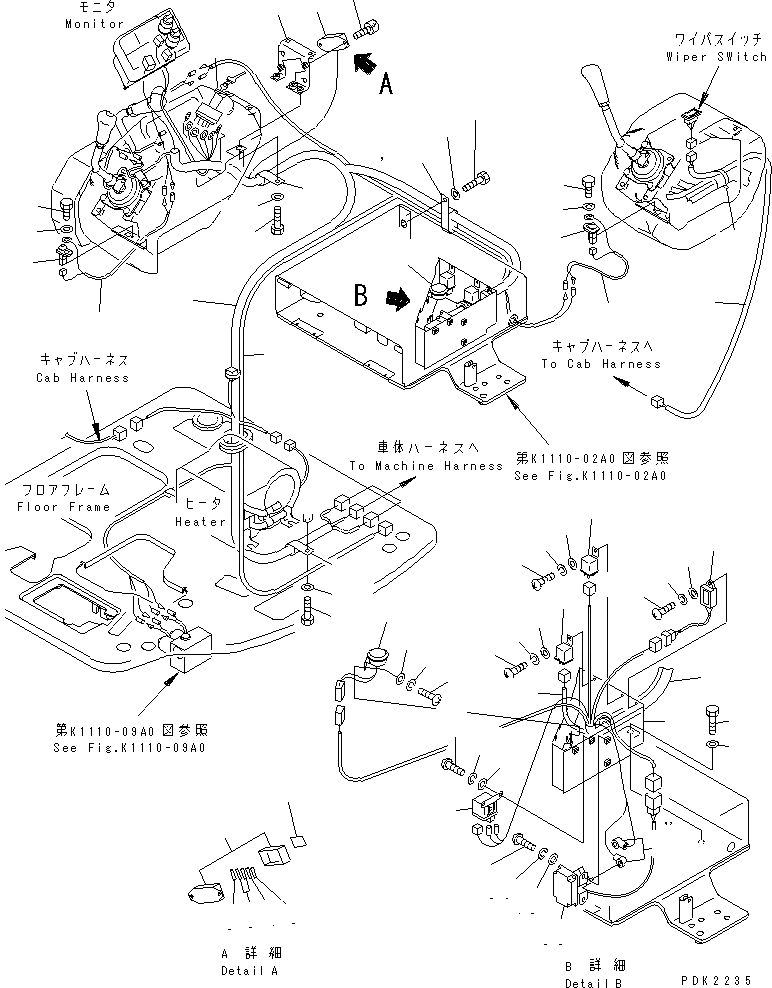

Запчасти Komatsu PC30R-8 ОСНОВН. КОНСТРУКЦИЯ (ЭЛЕКТРОПРОВОДКА) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20T-06-81311

WIRING HARNESS

|1

08020-00000

DIODE

2

20T-06-71560

FUSE BOX

3

20T-06-71571

PLATE¤ NAME

4

283-06-16190

FUSE¤ 10A

5

22W-06-13160

FUSE¤ 20A

6

201-06-61240

FUSE¤ 30A

7

04434-51910

CLIP

8

01010-81020

BOLT

9

01643-31032

WASHER

10

21W-06-21151

BRACKET

|10

21W-06-21152

BRACKET,(FOR ONE TOUCH DECEL)

11

01010-80820

BOLT

12

20T-54-71550

BOLT

13

01643-30823

WASHER

14

04434-52511

CLIP

15

04434-52511

CLIP

16

01010-81020

BOLT

17

01643-31032

WASHER

18

20S-06-31130

STARTING SWITCH,STARTING

19

20T-54-85130

WIRING HARNESS,(FOR CAB)

19A

20T-910-8530

WIRING HARNESS,(FOR 1 ATTACHMENT AND PAT)

19B

04435-51910

CLIP,(FOR 1 ATTACHMENT AND PAT)

20

20T-06-81330

BRACKET

21

01010-81025

BOLT

22

01643-31032

WASHER

23

20T-06-71760

TIMER

24

01220-40620

SCREW

25

01641-20608

WASHER

26

01602-20619

WASHER,SPRING

27

20T-06-71320

BUZZER ASS'Y

28

01220-40616

SCREW

29

01602-20619

WASHER,SPRING

30

01641-20608

WASHER

31

20T-06-71770

SWITCH,P.P.C. LOCK

32

20T-06-71780

WIRING HARNESS

33

20U-43-21360

SCREW

34

01641-20508

WASHER

35

08034-20823

BAND

36

20T-06-71650

RELAY,SAFETY

37

08038-00519

CAP

38

01220-40616

SCREW

39

01602-20619

WASHER,SPRING

40

01641-20608

WASHER

41

20T-06-71750

RELAY ASS'Y,STOP

42

01220-40616

SCREW

43

01641-20608

WASHER

44

01602-20619

WASHER,SPRING

45

21X-06-12310

RELAY ASS'Y,P.P.C. LOCK

46

01220-40616

SCREW

47

01602-20619

WASHER,SPRING

48

01641-20608

WASHER

49

21X-06-12310

RELAY ASS'Y,(FOR 1 ATTACHMENT AND PAT)

50

01220-40616

SCREW,(FOR 1 ATTACHMENT AND PAT)

51

01602-20619

WASHER,SPRING

52

01641-20608

WASHER,(FOR 1 ATTACHMENT AND PAT)
