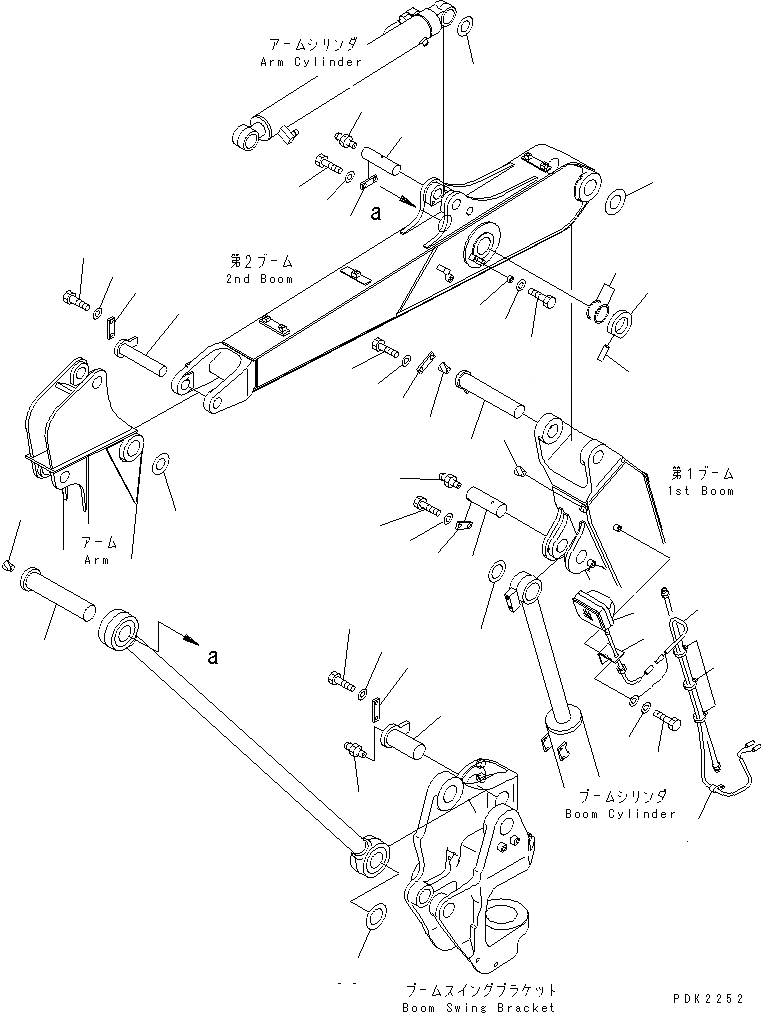

Запчасти Komatsu PC30R-8 2-СЕКЦИОНН. СТРЕЛА (РАБОЧ. ОСВЕЩЕНИЕ И ПАЛЕЦ) (CROSS СОЕДИНИТЕЛЬН. ЗВЕНО ТИП) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20T-06-71350

WORK LAMP ASS'Y

|1

20T-06-71550

BULB¤ 60W

2

21X-06-12120

BRACKET

3

01010-81020

BOLT

4

01643-31032

WASHER

5

20S-06-81120

WIRING ASS'Y

6

08034-30521

BAND

7

144-874-6970

CLIP

8

07049-01012

PLUG

9

20S-70-71220

PIN

10

20R-70-11250

PLATE

11

01010-81230

BOLT

12

01643-31232

WASHER

13

20S-70-81730

SHIM¤ 0.5MM

|13

20S-70-71640

SHIM¤ 0.5MM

14

12H-72-11560

PIN

15

07020-00000

FITTING,GREASE

16

04082-00212

LOCK

17

01010-81230

BOLT

18

01643-31232

WASHER

19

20S-70-81720

SPACER¤ 1.0MM

|19

201-70-23140

SPACER¤ 1.0MM

20

20S-70-71180

PIN

21

07020-00000

FITTING,GREASE

22

04082-00212

LOCK

23

01010-81230

BOLT

24

01643-31232

WASHER

25

20S-70-81720

SPACER¤ 1.0MM

|25

20R-70-11260

SPACER¤ 1.0MM

26

20S-70-82220

PIN

27

20R-70-11250

PLATE

28

01010-81230

BOLT

29

01643-31232

WASHER

30

201-70-22150

SPACER¤ 1.0MM

31

07049-01822

PLUG

32

20S-70-82160

PIN

33

23S-P21-2160

SHIM

34

07020-00000

FITTING,GREASE

35

21K-60-12310

LINK

36

01010-81230

BOLT

37

01643-31232

WASHER

38

20S-70-82430

PIN

39

283-70-17270

SHIM

40

07049-01822

PLUG

41

04022-10085

PIN,DOWEL

42

20S-70-82470

SPACER

43

362-60-12210

SPACER

44

01010-81025

BOLT

45

01643-31032

WASHER
