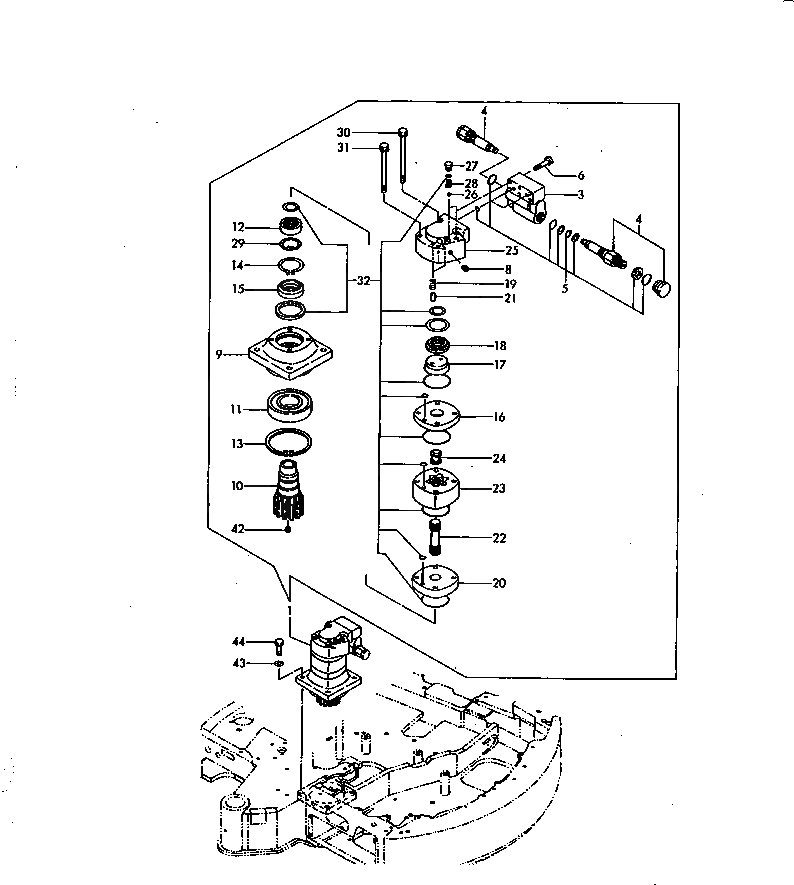

Запчасти Komatsu PC30FR-1 TURNING МОТОР(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

YM172175-73311

MOTOR ASS'Y,SWING

|1

YM172175-73310

MOTOR ASS'Y

2

YM172175-73331

VALVE ASS'Y

|2

YM172175-73330

VALVE ASS'Y

3

YM172183-73330

VALVE BODY

4

YM172175-73351

CARTRIDGE ASS'Y

|4

YM172175-73350

CARTRIDGE ASS'Y

5

YM172168-73360

SEAL KIT

6

YM172168-73370

BOLT

7

YM172175-73370

MOTOR ASS'Y,SWING

|7

YM172168-73400

MOTOR ASS'Y

8

YM172137-70490

PLUG

9

YM172168-73410

HOUSING,BEARING

10

YM172168-73420

PINION

11

YM172168-73430

BEARING,BALL

12

YM172168-73440

BEARING

13

YM172168-73450

CIRCLIP

14

YM172168-73460

CIRCLIP,SHAFT

15

YM172168-73470

COLLAR

16

YM172168-73480

PLATE,VALVE

17

YM172168-73490

VALVE

18

YM172175-73390

RING,BALANCING

|18

YM172168-73500

RING

19

YM172175-73380

SPRING

|19

YM172168-73510

SPRING

20

YM172168-73520

PLATE,WEAR

21

YM172168-73530

PIN

22

YM172168-73540

DRIVE

23

YM172168-73550

ROLLER

24

YM172168-73560

DRIVE,VALVE

25

YM172168-73570

HOUSING,VALVE

26

YM172168-73580

BALL

27

YM172168-73590

PLUG

28

YM172168-73600

SPRING

29

YM172168-73610

CIRCLIP

30

YM172168-73620

BOLT

31

YM172168-73630

BOLT

32

YM172168-73640

SEAL SET

42

YM172141-77400

PLUG,BLIND

43

YM22217-160000

WASHER

44

YM26116-160502

BOLT
