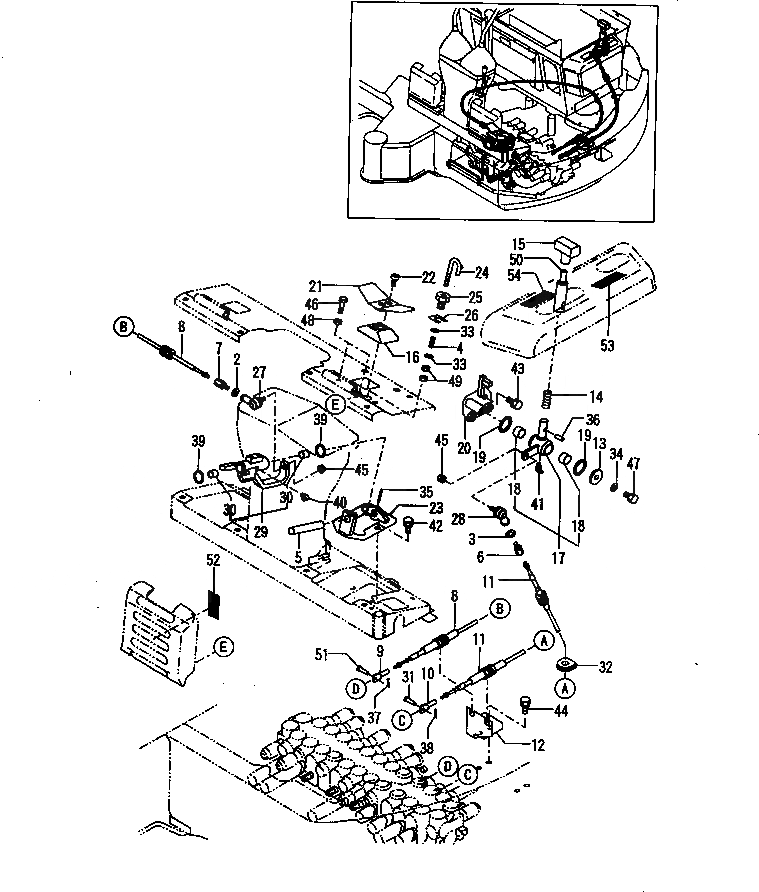

Запчасти Komatsu PC30FR-1 УПРАВЛ-Е ОБОРУД-Е (МЕХ-М ОТБОРА МОЩН-ТИ) СИСТЕМА УПРАВЛЕНИЯ

1

YM172175-74600

P.T.O. KIT,FRAME END

2

YM933168-28480

WASHER

3

YM933168-28480

WASHER

4

YM1C6141-35370

SPRING,LOCK

5

YM172146-41910

PIN

6

YM172141-42960

JOINT,CABLE

7

YM172141-42960

JOINT,CABLE

8

YM172165-45260

CABLE

9

YM172142-45670

ROD,SPOOL

10

YM172142-45670

ROD,SPOOL

11

YM172175-45850

CABLE

12

YM172175-45860

BRACKET

13

YM1A1040-45890

WASHER

14

YM172312-45930

SPRING

15

YM172116-45940

KNOB,LEVER

16

YM172157-45990

BOOTS,PEDAL

17

YM172164-46170

LINK ASS'Y

18

YM172141-41370

BUSHING

19

YM172124-46200

O-RING

20

YM172164-46210

BRACKET ASS'Y

21

YM172165-46281

PEDAL ASS'Y,SWING

22

YM172165-46340

BOLT

23

YM172165-46350

BRACKET,PEDAL

24

YM172165-46450

LOCK

25

YM172165-46480

BOLT

26

YM172165-46490

SHIM

27

YM172122-46590

END

28

YM172122-46590

END

29

YM172165-46600

LINK,PEDAL

30

YM172141-41360

BUSHING

31

YM933110-54100

PIN

32

YM172165-62800

GROMMET

33

YM22137-080000

WASHER

34

YM22217-100000

WASHER

35

YM22351-040032

PIN

36

YM22351-080020

PIN

37

YM22417-160160

PIN

38

YM22417-160160

PIN

39

YM24311-000210

O-RING

40

YM24761-050000

FITTING,GREASE

41

YM24761-050000

FITTING,GREASE

42

YM26013-100202

BOLT

43

YM26013-100202

BOLT

44

YM26013-100202

BOLT

45

YM26051-080002

NUT

46

YM26116-080304

BOLT

47

YM26116-100202

BOLT

48

YM26716-080002

NUT

49

YM26716-080002

NUT

50

YM172168-46190

LEVER

51

YM933110-54100

PIN

52

YM172165-03231

LABEL,P.T.O.

53

YM172168-03301

LABEL,SELECT

54

YM172519-03150

PLATE
