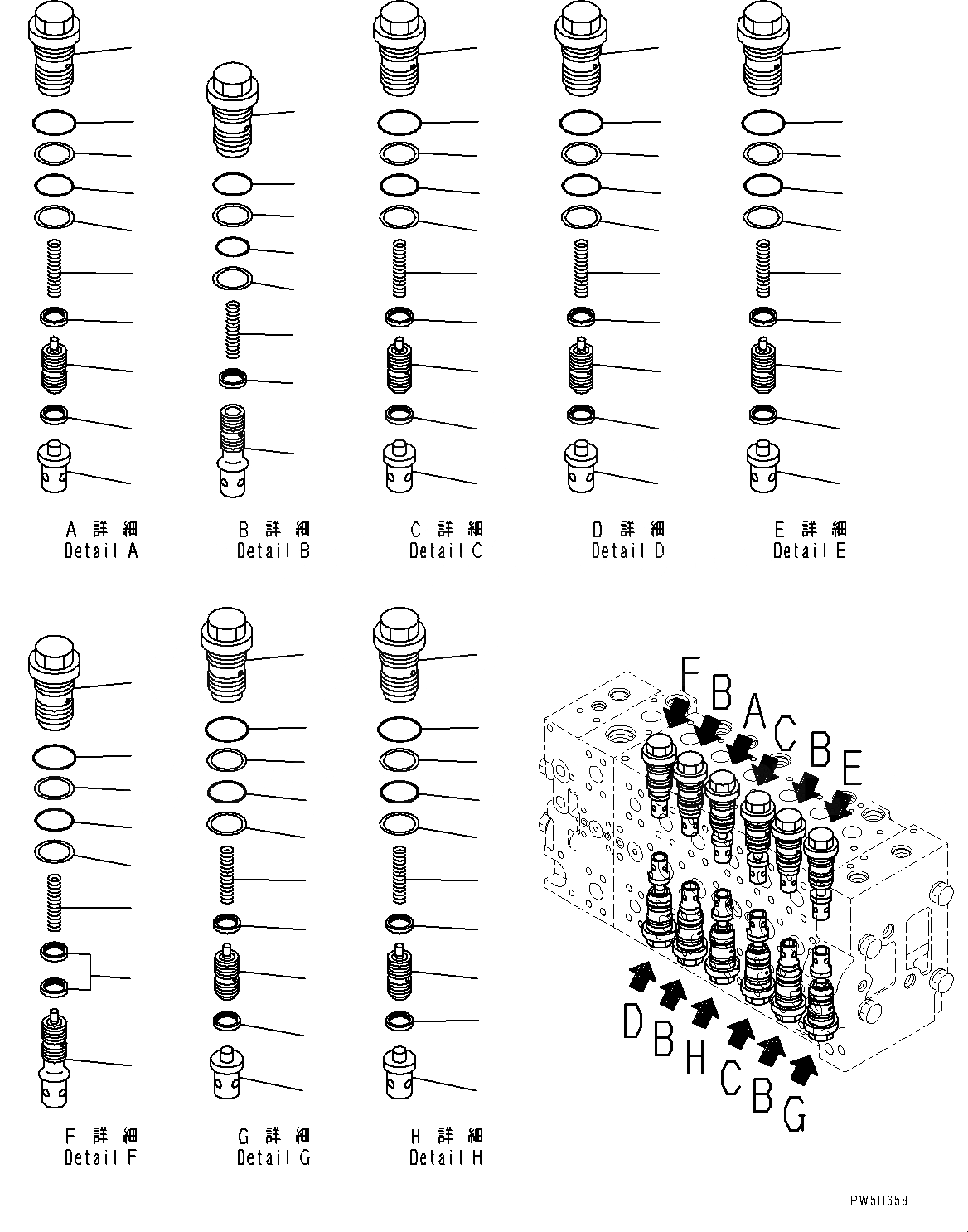

Запчасти Komatsu PC308USLC-3E0 УПРАВЛЯЮЩ. КЛАПАН, ВНУТР. ЧАСТИ (/9) (№-) УПРАВЛЯЮЩ. КЛАПАН, С -СЕРВИСНЫЙ КЛАПАН
№
Артикул
Название
Примечание
Количество
|$0
723-47-25300
Valve Assembly
|$1
Body Subassembly
1
723-46-41110
Valve
2
723-46-41190
Valve
2
723-46-40100
Valve Assembly
3
Sleeve
4
Piston Subassembly
5
Spring
6
Seal
7
700-93-11320
O-ring
8
723-46-41950
Ring, Back-up
9
07002-13634
O-ring
9
723-46-42700
Valve Assembly
10
Sleeve
11
Valve
12
Spring
13
Seal
14
700-93-11320
O-ring
15
723-46-41950
Ring, Back-up
16
07002-13634
O-ring
16
723-46-41100
Valve Assembly
17
Sleeve
18
Piston Subassembly
19
Piston
20
Seal
21
700-93-11320
O-ring
22
723-46-41950
Ring, Back-up
23
07002-13634
O-ring
23
723-46-45100
Valve Assembly
24
Sleeve
25
Piston Subassembly
26
Spring
27
Seal
28
700-93-11320
O-ring
29
723-46-41950
Ring, Back-up
30
07002-13634
O-ring
30
723-46-46300
Valve Assembly
31
Sleeve
32
Piston Subassembly
33
723-46-41830
Spring
34
Seal
35
700-93-11320
O-ring
36
723-46-41950
Ring, Back-up
37
07002-13634
O-ring
37
723-46-43400
Valve Assembly
38
723-46-42310
Sleeve
39
Valve Subassembly
40
Spring
41
Seal
42
700-93-11320
O-ring
43
723-46-41950
Ring, Back-up
44
07002-13634
O-ring
44
723-46-43100
Valve Assembly
45
723-46-42310
Sleeve
46
Piston Subassembly
47
Spring
48
Seal
49
700-93-11320
O-ring
50
723-46-41950
Ring, Back-up
51
07002-13634
O-ring
51
723-46-46101
Valve Assembly
52
Sleeve
53
Piston Subassembly
54
Spring
55
Seal
56
700-93-11320
O-ring
57
723-46-41950
Ring, Back-up
58
07002-13634
O-ring
Выбрано товаров: 68
