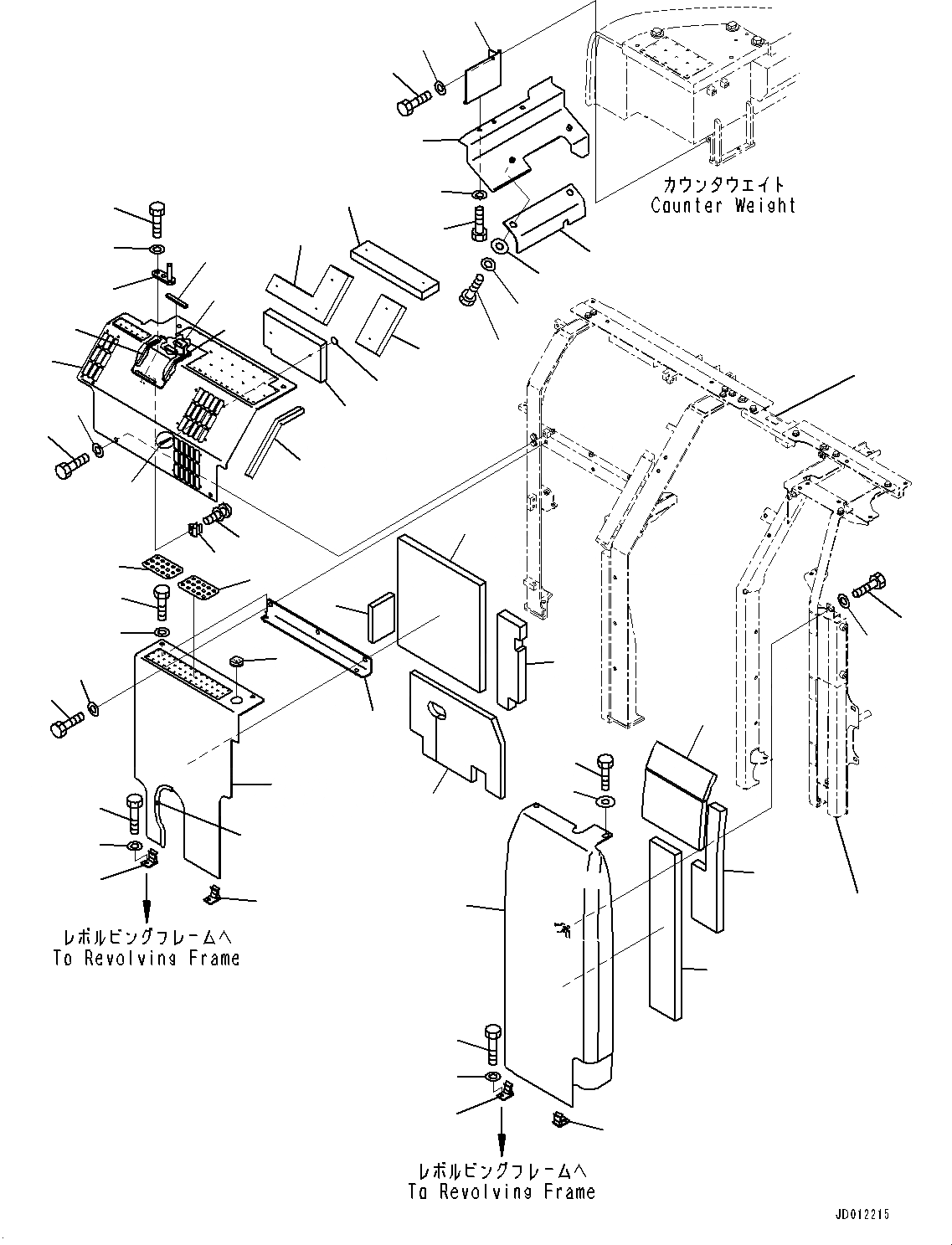

Запчасти Komatsu PC308USLC-3E0 КАБИНА ПЕРЕГОРОДКА., КРЫШКА(/) (№-) КАБИНА ПЕРЕГОРОДКА., С DUSTЗАЩИТА NET

|$0

22U-54-28252

Cover Assembly

1

154-54-18240

Grommet

2

Cover

3

22U-54-28511

Sheet

4

22U-54-26180

Sheet

5

22U-54-26190

Sheet

6

22U-54-85340

Sheet

7

22U-54-29820

Seal

8

22U-54-29830

Bracket

9

01010-81225

Bolt

10

01643-31232

Washer

11

21M-00-21290

Plate

12

01010-81225

Bolt

13

01643-31232

Washer

14

20Y-54-12320

Catcher

15

01010-81230

Bolt

16

01643-31232

Washer

16

22U-54-26170

Cover

17

Cover

18

22U-54-22732

Sheet

19

22U-54-29630

Sheet

20

22U-54-29650

Sheet

21

01010-81225

Bolt

22

01643-31232

Washer

23

01010-81225

Bolt

24

175-54-34170

Washer

25

20Y-54-12320

Catcher

26

01010-81230

Bolt

27

01643-31232

Washer

|$29

22U-54-28261

Cover Assembly

28

Cover

29

20N-54-11160

Hinge,Welded

30

20Y-54-71460

Stud,Welded

31

22U-54-26860

Sheet

32

22U-54-85660

Seal

33

203-54-67630

Seal

34

20R-54-11460

Spring

35

01023-10406

Screw

36

22B-54-12291

Bracket

37

01010-80620

Bolt

38

01643-30623

Washer

39

22U-54-26850

Sheet

40

22U-54-28880

Sheet

41

22U-54-29360

Sheet

42

22U-54-29350

Sheet

43

124-A62-1920

Cap

44

01010-81225

Bolt

45

01643-31232

Washer

45

22U-54-28500

Cover Assembly

46

Cover

47

20Y-54-72470

Sheet

48

01010-81220

Bolt

49

124-54-26540

Washer

50

01643-51232

Washer

51

01010-81220

Bolt

52

01643-31232

Washer

53

22U-54-28531

Cover

54

01010-81220

Bolt

55

01643-31232

Washer

56

22U-54-29480

Frame

57

22U-54-29511

Frame
