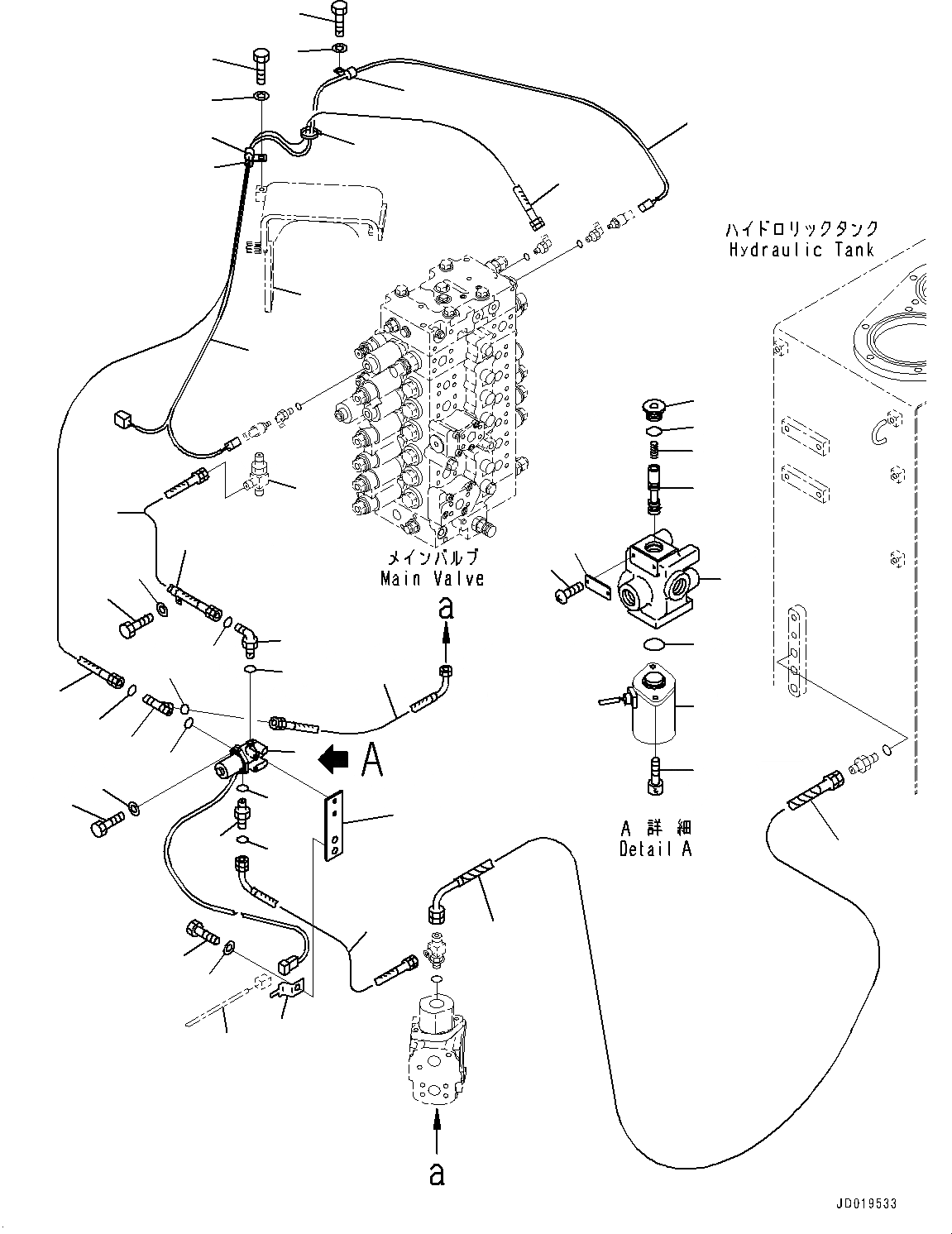

Запчасти Komatsu PC308USLC-3E0 АКТУАТОР ТРУБЫ, СОЛЕНОИДНЫЙ КЛАПАН ТРУБЫ (№-) АКТУАТОР ТРУБЫ

1

22U-06-21381

Wiring Harness

2

04434-51012

Clip

3

01010-81225

Bolt

4

01643-31232

Washer

5

22U-62-25611

Plate

6

01010-81225

Bolt

7

01643-31232

Washer

8

08193-21012

Clip

8

20Y-60-32110

Valve Assembly

9

Block

10

20Y-60-32121

Solenoid Assembly

11

NY08000-02200

Plug

12

NY06339-10200

Spring

13

NY07493-10200

Spool

14

NY09000-11400

Plate

15

NY84110-00264

Screw

16

NY81446-05010

Bolt

17

07000-12011

O-ring

18

07000-12016

O-ring

19

01010-80825

Bolt

20

01643-30823

Washer

21

21W-62-43960

Elbow

22

02896-11008

O-ring

23

07002-11423

O-ring

24

02781-0021D

Union

25

02896-11008

O-ring

26

07002-11423

O-ring

27

20Y-62-41960

Tee

28

02896-11008

O-ring

29

07002-11423

O-ring

30

22U-62-31581

Hose

31

208-62-72590

Hose

32

02763-00203

Hose, Face Seal Type

33

22U-62-28730

Hose

34

22U-62-28740

Hose

35

04434-51212

Clip

36

04434-51012

Clip

37

01010-81225

Bolt

38

01643-31232

Washer

39

08034-20536

Band

40

22U-62-26950

Bracket

41

207-62-72141

Elbow

|$42

207-62-72141

Elbow

42

22U-06-27412

Wiring Harness
