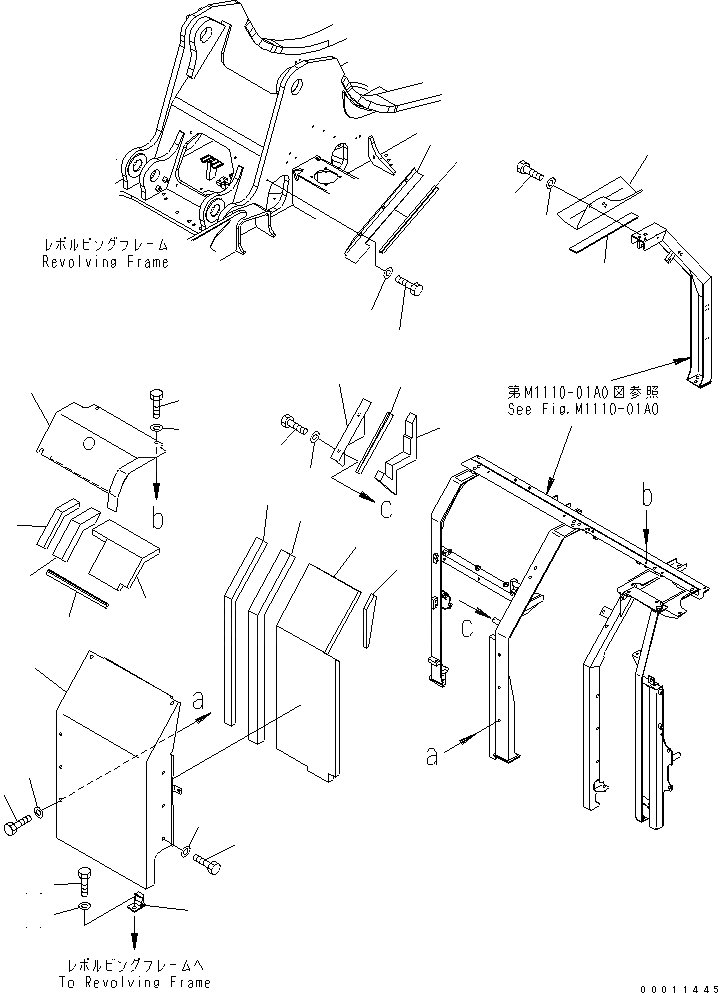

Запчасти Komatsu PC308USLC-3 ПЕРЕГОРОДКА. (COVER) (/)(№-) ЧАСТИ КОРПУСА

|1

22U-54-85350

COVER

1

COVER

2

22U-54-85370

SHEET

3

22U-54-85380

SHEET

4

22U-54-85390

SHEET

5

22U-54-85410

SHEET

6

01010-81230

BOLT

7

01643-31232

WASHER

|8

22U-54-85420

COVER

8

COVER

9

22U-54-85440

SHEET

10

22U-54-85450

SHEET

11

22U-54-85460

SHEET

12

22U-54-85880

SEAL

13

01010-81230

BOLT

14

01643-31232

WASHER

15

20Y-54-12320

CATCH

16

01010-81230

BOLT

17

01643-31232

WASHER

|18

22U-54-85770

COVER

18

COVER

19

22U-54-11960

SEAL

20

01010-81230

BOLT

21

01643-31232

WASHER

|22

22U-54-85630

COVER

22

COVER

23

22U-54-85650

SHEET

24

22U-54-85660

SEAL

25

01010-81220

BOLT

26

01643-31232

WASHER

|27

22U-03-81810

PLATE

27

22U-03-81820

PLATE

28

22U-03-81830

SHEET

29

01010-81220

BOLT

30

01643-31232

WASHER
