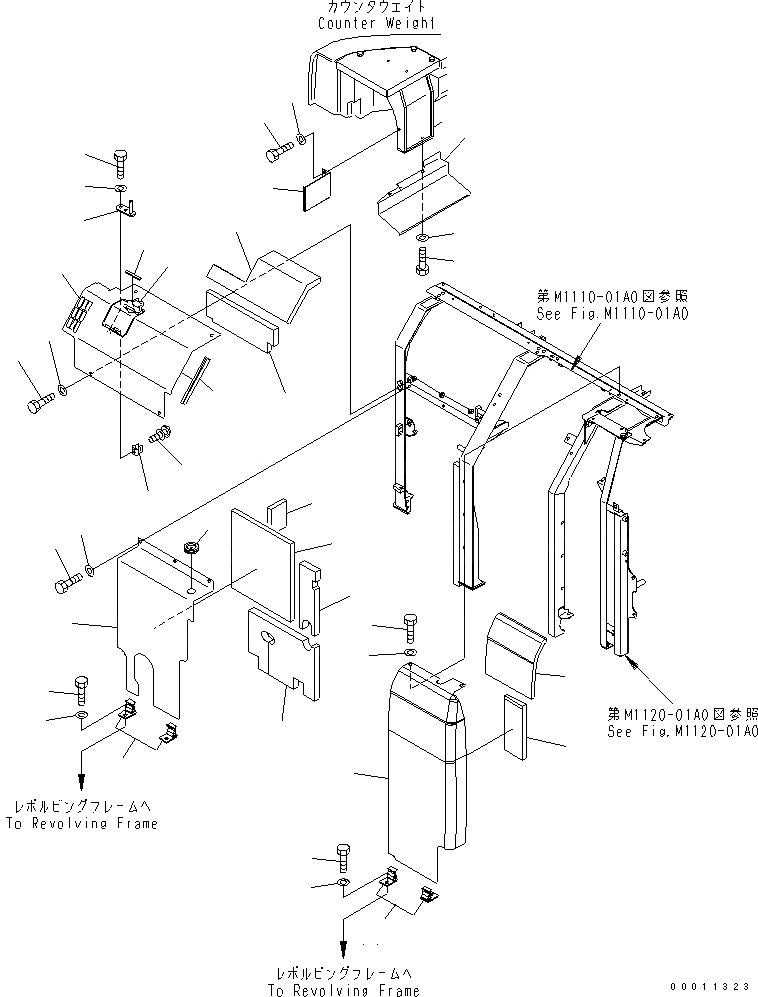

Запчасти Komatsu PC308USLC-3 ПЕРЕГОРОДКА. (COVER) (/)(№-) ЧАСТИ КОРПУСА

|1

22U-54-85280

COVER

1

154-54-18240

GROMMET

2

COVER

3

22U-54-85310

SHEET

4

22U-54-85320

SHEET

5

22U-54-85330

SHEET

6

22U-54-85340

SHEET

7

01010-81225

BOLT

8

01643-31232

WASHER

9

20Y-54-12320

CATCH

10

01010-81230

BOLT

11

01643-31232

WASHER

|12

22U-54-85731

COVER

12

COVER

13

22U-54-22731

SHEET

14

22U-54-22821

SHEET

15

01010-81230

BOLT

16

01643-31232

WASHER

17

20Y-54-12320

CATCH

18

01010-81230

BOLT

19

01643-31232

WASHER

|20

22U-54-85560

COVER

20

COVER

21

20N-54-11160

HINGE

22

22U-54-85580

SHEET

23

22U-54-85590

SHEET

24

22U-54-85660

SEAL

25

203-54-67630

SEAL

26

20R-54-11460

SPRING

27

01023-10406

SCREW

28

22B-54-12291

BRACKET

29

01010-80620

BOLT

30

01643-30623

WASHER

31

01010-81230

BOLT

32

01643-31232

WASHER

33

22U-54-85890

COVER

34

01010-81225

BOLT

35

01643-31232

WASHER

36

22U-54-22871

COVER

37

01010-81225

BOLT

38

01643-31232

WASHER
