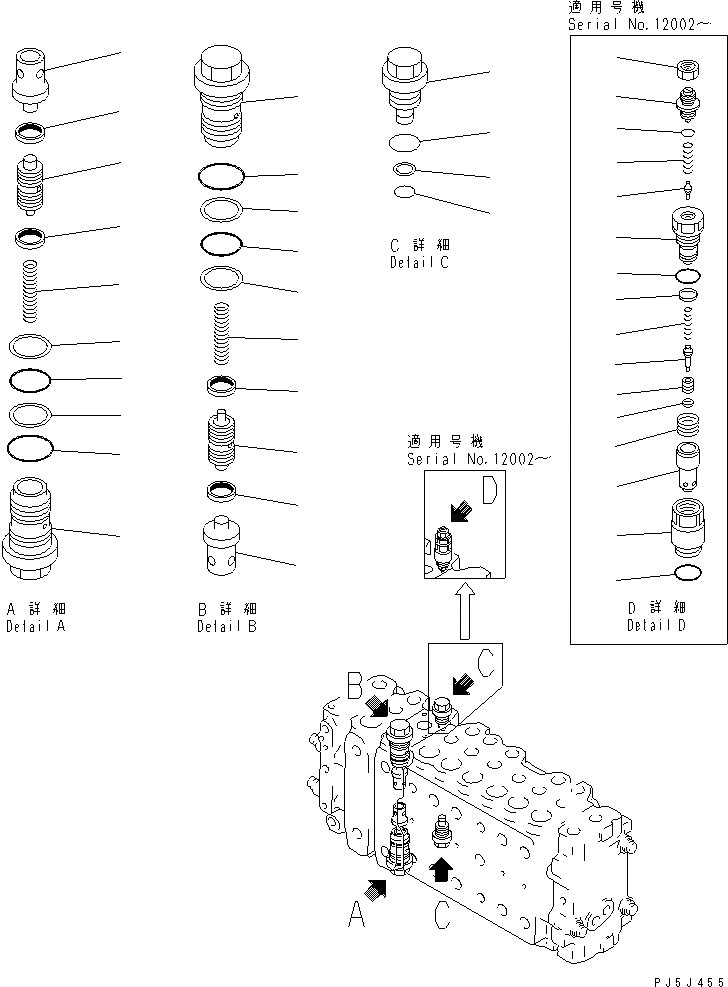

Запчасти Komatsu PC300SC-6 ОСНОВН. КЛАПАН (-АКТУАТОР) (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|1
723-48-18300
CONTROL VALVE
|1
723-48-18101
CONTROL VALVE
|1
723-48-18100
CONTROL VALVE
|1
723-48-16102
CONTROL VALVE
|1
723-48-16101
CONTROL VALVE
|1
BODY SUB ASS'Y
|1
BODY SUB ASS'Y
1
723-46-41110
VALVE
|2
723-46-40601
VALVE ASS'Y
2
SLEEVE
3
PISTON SUB ASS'Y
4
SPRING
5
SEAL
6
700-93-11320
O-RING
7
723-46-41950
RING
8
07002-13634
O-RING
|9
723-46-43100
VALVE ASS'Y
9
SLEEVE
10
PISTON SUB ASS'Y
11
SPRING
12
SEAL
13
700-93-11320
O-RING
14
723-46-41950
RING
15
07002-13634
O-RING
16
709-74-91510
PLUG
|16
709-74-91510
PLUG
17
07000-13024
O-RING
|17
709-25-11390
O-RING
18
07000-11009
O-RING
|18
07000-11009
O-RING
19
07001-01009
RING
|19
07001-01009
RING
|20
709-70-77500
VALVE ASS'Y,SUCTION AND SAFETY
20
SLEEVE
21
SLEEVE
22
POPPET
23
PISTON
24
PLUG
25
POPPET
26
SCREW
27
SPRING
28
SPRING
29
SPRING
30
SEAL
31
SEAL
32
709-25-11390
O-RING
33
O-RING
34
O-RING
35
NUT
Выбрано товаров: 49
