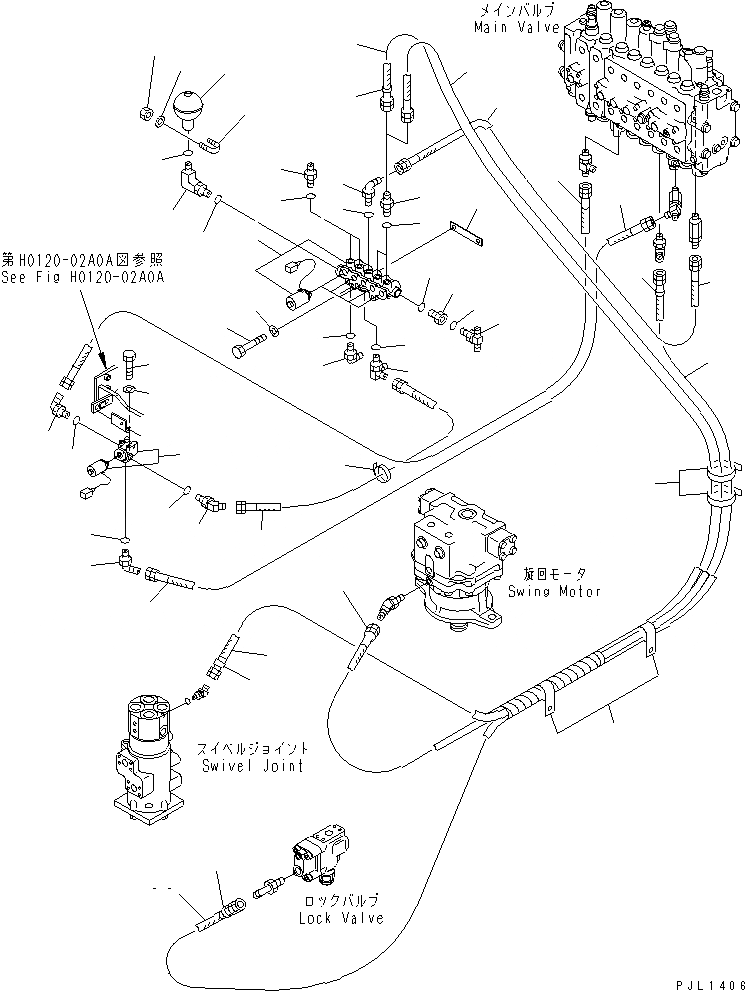

Запчасти Komatsu PC300SC-6 СОЛЕНОИДНЫЙ КЛАПАН(№-) ГИДРАВЛИКА

1

206-60-51102

VALVE ASS'Y,(SEE FIG.Y1860-01A0B)

2

205-62-55270

NIPPLE

3

07002-11423

O-RING

4

07235-10210

ELBOW

5

07002-11423

O-RING

6

07230-20210

UNION

7

07002-11423

O-RING

8

07235-10315

ELBOW

9

20Y-62-23520

TEE

10

07002-12034

O-RING

11

20Y-62-21940

FILTER ASS'Y

12

07002-12034

O-RING

13

20Y-62-11780

TEE

14

07002-11423

O-RING

15

01011-81000

BOLT

|15

21T-09-11580

BOLT

16

01643-31032

WASHER

17

207-60-61230

PLATE

18

20Y-60-11410

ACCUMULATOR

19

203-62-65281

ELBOW

20

07002-12034

O-RING

21

07283-23450

CLIP

22

01599-01011

NUT

23

01643-31032

WASHER

24

207-60-61201

VALVE ASS'Y,(SEE FIG.Y1861-01A0A)

25

01010-80825

BOLT

26

01643-30823

WASHER

27

07235-10210

ELBOW

28

22X-61-18550

ELBOW

29

07002-11423

O-RING

30

206-62-43240

HOSE

31

07102-20319

HOSE

32

07102-20317

HOSE

|32

07102-20320

HOSE

33

07102-20316

HOSE

34

20Y-62-22790

BAND¤ RED

35

20Y-62-22810

BAND¤ YELLOW

36

08034-00519

BAND

37

208-06-19170

CLIP

38

07102-20203

HOSE

39

07102-20305

HOSE

40

206-62-43240

HOSE

41

08034-00519

BAND
