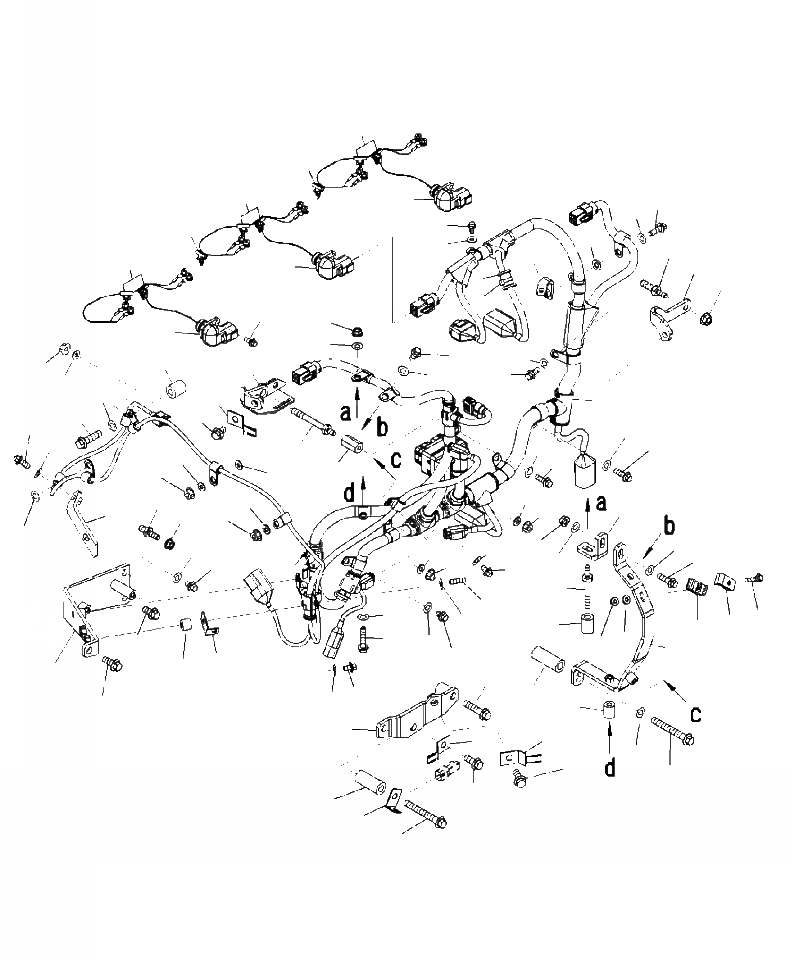

Запчасти Komatsu PC300LL-7E0 A-AA ДВИГАТЕЛЬ ПРОВОДКА ДВИГАТЕЛЬ

1

6745-81-9210

HARNESS, WIRING

2

6732-21-4180

BOLT

3

6745-81-9390

CLIP, WIRE RETAINING

4

6745-81-9220

HARNESS, WIRING

5

6742-01-3770

BOLT

6

07095-20211

ISOLATOR, VIBRATION

7

08034-20519

BAND

8

6745-81-9310

BRACE, WIRING

9

6732-71-3220

BOLT

10

6745-81-9580

BOLT

11

6745-81-9320

BRACE, WIRING

12

6736-81-6170

NUT

13

01584-00605

NUT

14

6745-81-9590

BRACE, WIRING

15

6745-81-9410

BOLT

16

6152-51-5520

SPACER

17

08057-12010

CLIP

18

6731-21-6220

BOLT

19

6734-71-5610

BOLT

20

08193-20010

BRACKET, SENSOR

21

6745-81-9340

BRACE, WIRING

22

6130-12-4581

SPACER

23

6745-81-9420

BOLT

24

6732-71-3210

NUT

25

6745-81-9350

BRACE, WIRING

26

01643-30823

WASHER

27

6164-91-6290

SPACER

28

01643-31032

WASHER

29

6732-61-3110

BOLT

30

6162-23-5770

SPACER

31

6155-71-5810

BRACE, TUBE

32

6155-71-5820

BRACE, TUBE

33

01643-30623

WASHER

34

1317 574 H1

BOLT

35

01011-E1035

BOLT

36

6732-61-3140

BOLT

37

6745-81-9440

BOLT

38

6216-74-6180

BOLT

39

6731-71-6270

BOLT

40

6732-21-6630

BOLT

41

6732-21-3120

BOLT

42

6745-81-9360

BRACE, WIRING

43

6735-71-3220

BOLT

44

144-874-7470

SPACER, MOUNTING

45

6742-01-5504

BOLT

46

6745-81-9370

BRACE, WIRING

47

6745-81-9450

BOLT

48

6745-81-9380

BRACE, TUBE

49

6745-81-9460

NUT

50

6141-64-2560

SPACER, MOUNTING

51

08057-12008

CLIP

52

01643-21016

WASHER

53

01643-20816

WASHER

54

6732-21-5160

BOLT

55

6732-61-6140

BOLT

56

01640-20716

WASHER
