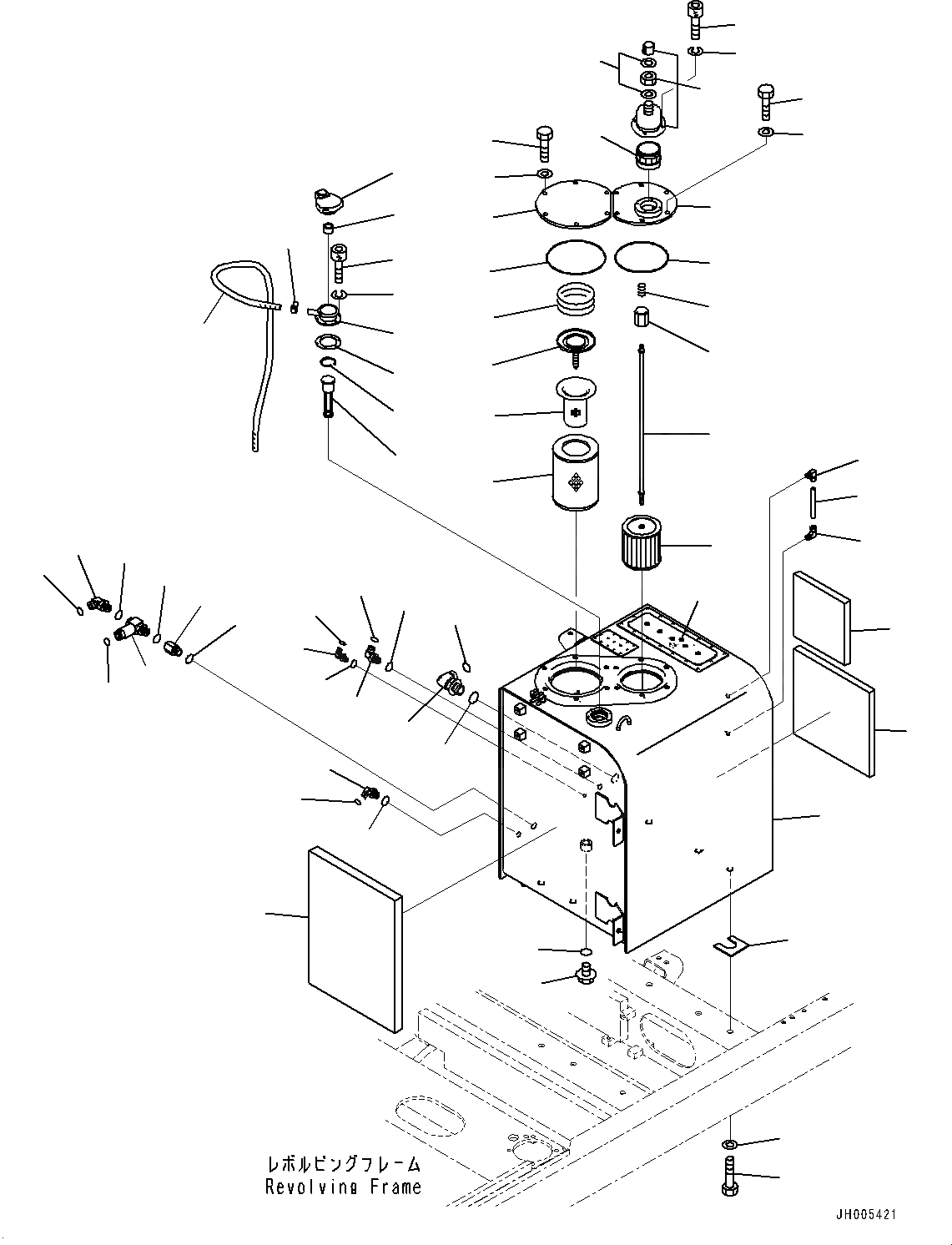

Запчасти Komatsu PC300LC-8 ГИДР. БАК. (№-) ГИДР. БАК., СТРЕЛА И РУКОЯТЬ ANTI-DROP КЛАПАН

1

207-60-75110

Tank

2

203-60-31100

Elbow Assembly

3

203-60-31160

Tube

4

07044-12412

Plug

5

07002-12434

O-ring

6

201-62-71810

Joint

7

07002-12434

O-ring

8

207-62-72171

Elbow

9

07002-12434

O-ring

10

02896-11018

O-ring

11

02782-10522

Elbow

12

07002-12434

O-ring

13

02896-11015

O-ring

14

02782-10315

Elbow

15

07002-12034

O-ring

16

02896-11009

O-ring

17

21W-62-42640

Elbow

18

07002-13334

O-ring

19

207-62-64740

O-ring

20

02782-10422

Elbow

21

07002-12034

O-ring

22

02896-11012

O-ring

23

11Y-62-12160

Elbow

24

07002-11423

O-ring

25

02896-11008

O-ring

26

207-60-71182

Element, Hydraulic Oil Filter

27

20Y-60-31140

Strainer

28

20Y-60-31131

Valve Assembly

29

20Y-60-21240

Spring

30

22U-60-21232

Cover

31

07000-15195

O-ring

32

01010-81230

Bolt

33

01643-31232

Washer

|$33

207-60-75120

Strainer Assembly

34

208-60-71150

Rod Assembly

35

12R-60-11230

Spring

36

20Y-60-21320

Holder

37

22B-60-11160

Strainer

38

207-60-75131

Cover

39

07000-15160

O-ring

40

01010-81230

Bolt

41

01643-31232

Washer

42

17A-60-11310

Cap Assembly

43

20Y-60-21470

Element

44

208-60-71181

Filler Neck

44

208-60-71180

Filler Neck

45

20Y-60-21340

Gasket

46

01252-70516

Bolt

47

01601-20513

Washer

48

07285-00200

Clip, Hose

48

07285-00155

Clip

49

07261-21415

Hose

49

07270-61415

Tube

50

07056-10045

Strainer

51

04065-04718

Ring, Snap

52

20Y-60-31271

Breather Assembly

52

20Y-60-31270

Breather Assembly

53

207-60-51311

Element

53

207-60-51310

Element

54

207-60-51320

Seal

55

01252-70516

Bolt

56

01601-20513

Washer

57

207-60-75910

Sheet

58

207-60-75920

Sheet

59

207-60-75930

Sheet

60

20Y-00-42110

Plate

61

01010-81635

Bolt

62

01643-31645

Washer

63

195-03-11570

Shim, T=1.0mm
