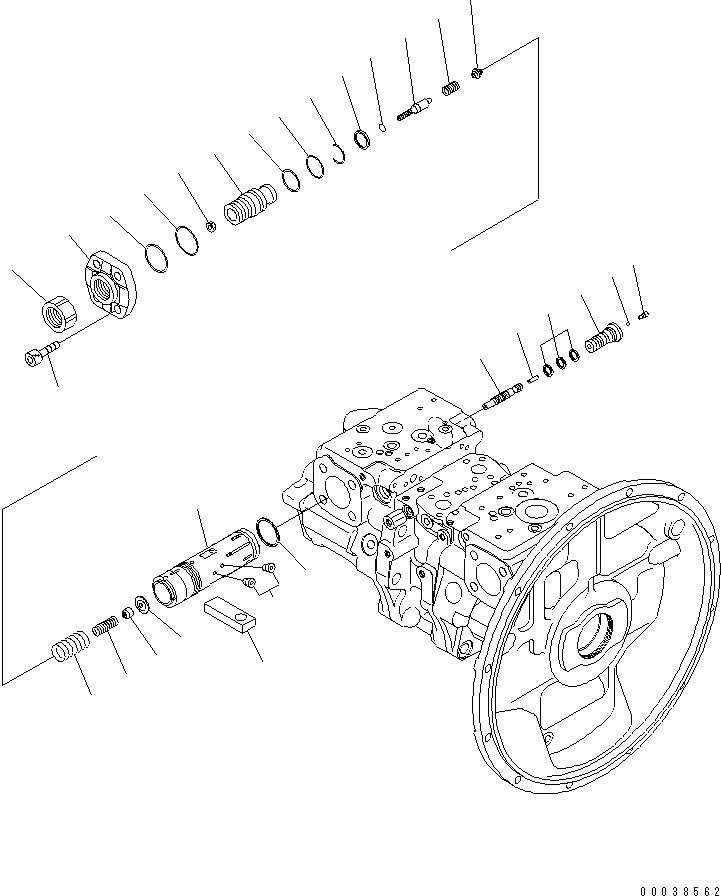

Запчасти Komatsu PC300LC-7E0 ОСНОВН. НАСОС (ЗАДН. PC КЛАПАН) ГИДРАВЛИКА

|$0

708-2G-00700

PUMP ASS'Y,(SEE FIG. H0210-02H0)

|$1

708-2G-01070

PUMP SUB ASS'Y,(SEE FIG. H0210-02H0)

1

708-2G-14120

SLIDER

|$3

708-2G-03580

VALVE ASS'Y,PC

|$4

708-2G-03590

PISTON ASS'Y,SERVO

2

PISTON,SERVO

3

SCREW

4

708-2G-15320

SEAL

5

708-2G-15221

PLUG

6

708-2L-35760

BALL

7

708-2L-35770

PLUG

8

708-2L-35690

SEAL

9

708-2L-35170

PIN

10

708-2G-15211

SPOOL

11

708-2G-15290

RETAINER

12

708-2G-15140

SEAT

13

708-2G-15270

SPRING

14

708-2G-15280

SPRING

15

708-2G-15151

SEAT

16

708-2G-15250

SPRING

17

708-2G-14340

SCREW

18

07000-B3038

O-RING

19

708-2G-15230

RING,BACK-UP

20

708-2G-15260

SEAL

21

708-2G-15240

PLUG

22

07000-B2012

O-RING

23

07000-B2050

O-RING

24

708-2G-15310

RING

25

708-2G-14190

COVER

26

01580-10806

NUT

27

708-2L-35290

NUT

28

708-2G-15330

RING,WIRE

29

01252-61645

BOLT
