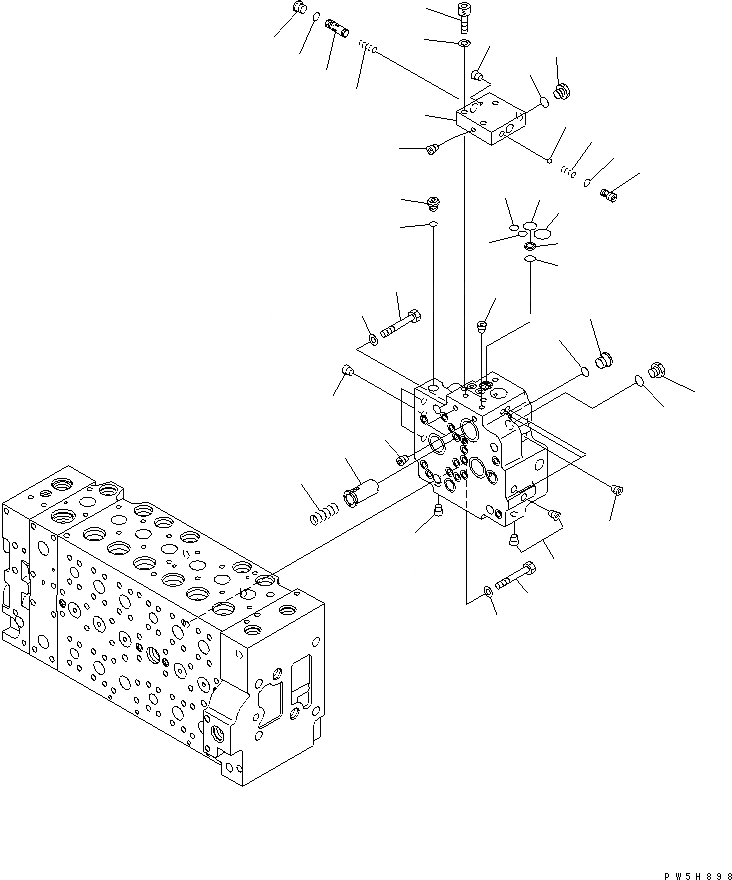

Запчасти Komatsu PC300LC-7 ОСНОВН. КЛАПАН (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$5

723-47-26105

CONTROL VALVE

|$6

723-47-26104

CONTROL VALVE

|$7

723-47-26103

CONTROL VALVE

|$8

723-47-26102

CONTROL VALVE

|$9

723-47-26101

CONTROL VALVE

|$11

723-40-71201

VALVE ASS'Y

|$12

723-40-71200

VALVE ASS'Y

1

723-40-71430

VALVE

2

702-21-55460

SPRING

3

702-21-55420

O-RING

4

702-21-55520

O-RING

5

702-21-55440

O-RING

6

702-21-53120

FILTER

7

07000-12011

O-RING

8

BLOCK

8

BLOCK

9

SPOOL

9

SPOOL

10

SPRING

10

SPRING

11

702-21-55620

PLUG

11

702-21-55620

PLUG

12

07002-11423

O-RING

12

07002-11423

O-RING

13

702-21-55710

SEAT

13

702-21-55710

SEAT

14

702-21-55720

SPRING

14

702-21-55720

SPRING

15

04260-00793

BALL

15

04260-00793

BALL

16

07000-11009

O-RING

16

07000-11009

O-RING

17

PLUG

17

PLUG

18

708-8H-11530

PLUG

18

708-8H-11530

PLUG

19

07002-11423

O-RING

19

07002-11423

O-RING

20

01252-61040

BOLT

21

01643-51032

WASHER

22

708-8H-11530

PLUG

23

07002-11423

O-RING

24

702-21-55620

PLUG

25

07002-11423

O-RING

26

708-8E-16160

PLUG

27

07002-11023

O-RING

28

07000-12011

O-RING

29

PLUG

30

01010-61460

BOLT

31

01010-61470

BOLT

32

01643-31445

WASHER
