Запчасти Komatsu PC300LC-7 МОТОР ХОДА (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

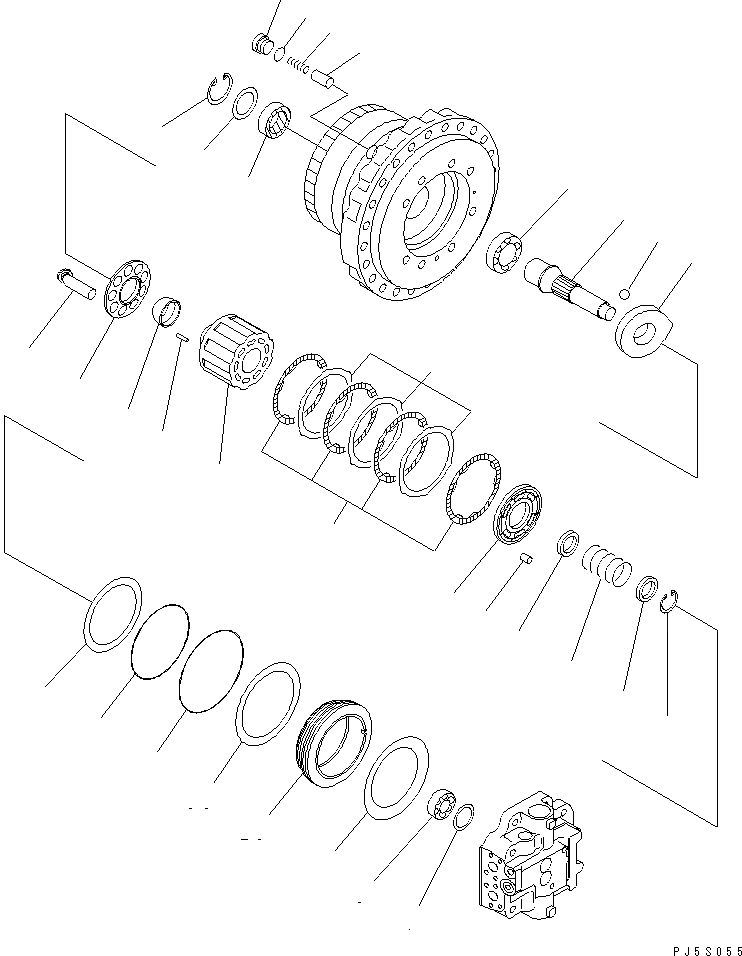

Схема запчастей Komatsu PC300LC-7 - МОТОР ХОДА (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

Артикул

Название

Примечание

Количество

|$1

708-8H-00320

MOTOR ASS'Y

1

708-8H-32120

SHAFT

2

708-8H-32150

BEARING

3

708-8H-32170

BEARING

4

708-8H-05050

SPACER KIT

4

SPACER, 1.6MM

4

SPACER, 1.7MM

4

SPACER, 1.8MM

4

SPACER, 1.9MM

4

SPACER, 2.0MM

4

SPACER, 2.1MM

4

SPACER, 2.2MM

5

708-1F-12281

SEAL,OIL

6

708-8H-32160

SPACER

7

04065-07825

RING,SNAP

|$17

708-8H-04810

CYLINDER BLOCK ASS'Y

8

708-8H-33710

BLOCK,CYLINDER

9

708-8H-33810

PLATE,VALVE

10

708-18-13230

PIN

11

708-8H-33360

PIN

12

708-8H-33141

SPACER

13

708-8H-33750

SPRING

14

04065-06020

RING,SNAP

15

708-8H-33512

RETAINER

16

708-8H-33340

RETAINER,SHOE

17

708-8H-33650

PISTON SUB ASS'Y

18

708-8H-33471

CAM,ROCKER

19

04260-02857

BALL

20

708-8H-34143

PISTON

21

708-8H-34151

SPRING

22

708-8K-14210

PLUG

23

07002-13334

O-RING

24

708-8H-35130

PLATE

25

708-8H-35180

DISC

26

708-8H-35141

PISTON,BRAKE

27

07000-15175

O-RING

28

07001-05175

RING,BACK-UP

29

07000-15195

O-RING

30

07001-05195

RING,BACK-UP

31

708-8H-35150

SPRING

Выбрано товаров: 40
