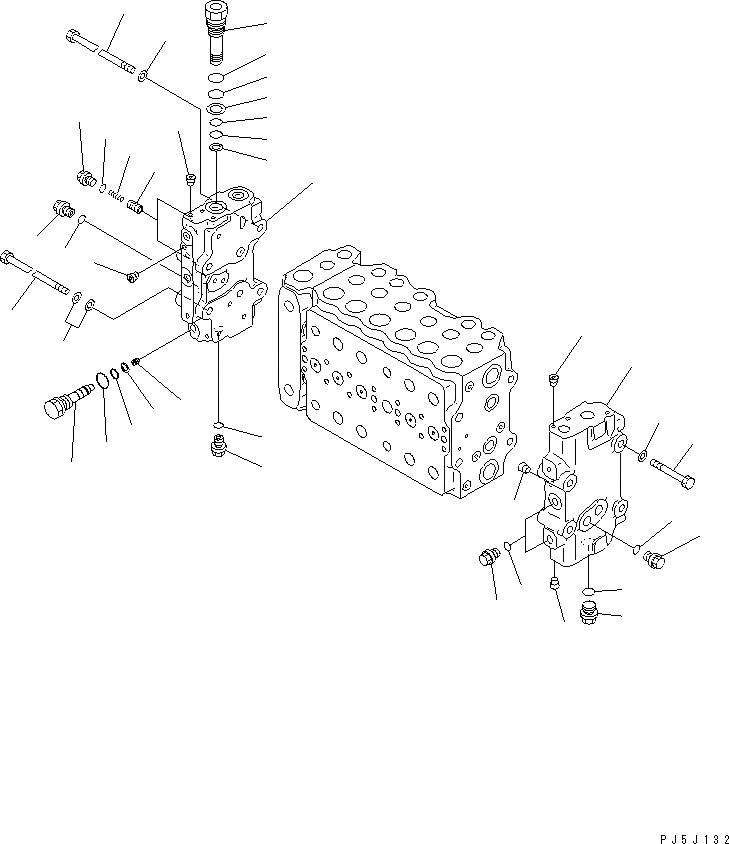

Запчасти Komatsu PC300LC-6Z ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№9-999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-47-16103

CONTROL VALVE

|1

723-47-16102

CONTROL VALVE

|1

723-47-16101

CONTROL VALVE

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1662-21A0 TO Y1662-32A0.

|1

723-46-00610

COVER ASS'Y

1

COVER,A

2

PLUG

|3

723-46-00620

COVER ASS'Y

3

COVER,B

4

PLUG

5

PLUG

6

723-46-15180

PLUG

7

07002-11823

O-RING

|8

723-46-15100

PLUG ASS'Y

8

PLUG

9

SCREW

10

07002-11423

O-RING

11

07000-11007

O-RING

12

07001-01007

RING,BACK-UP

13

723-46-15190

VALVE

14

723-46-14140

SPRING

15

708-8E-16160

PLUG

16

07002-11023

O-RING

17

709-74-91860

PLUG

18

07002-12434

O-RING

19

01010-61490

BOLT

20

01643-31445

WASHER

21

01011-61455

BOLT

22

723-46-15470

PLUG

23

07000-03032

O-RING

24

07002-13034

O-RING

25

700-80-61260

O-RING

26

700-80-61430

RING

27

07000-12021

O-RING

28

07001-02021

RING,BACK-UP
