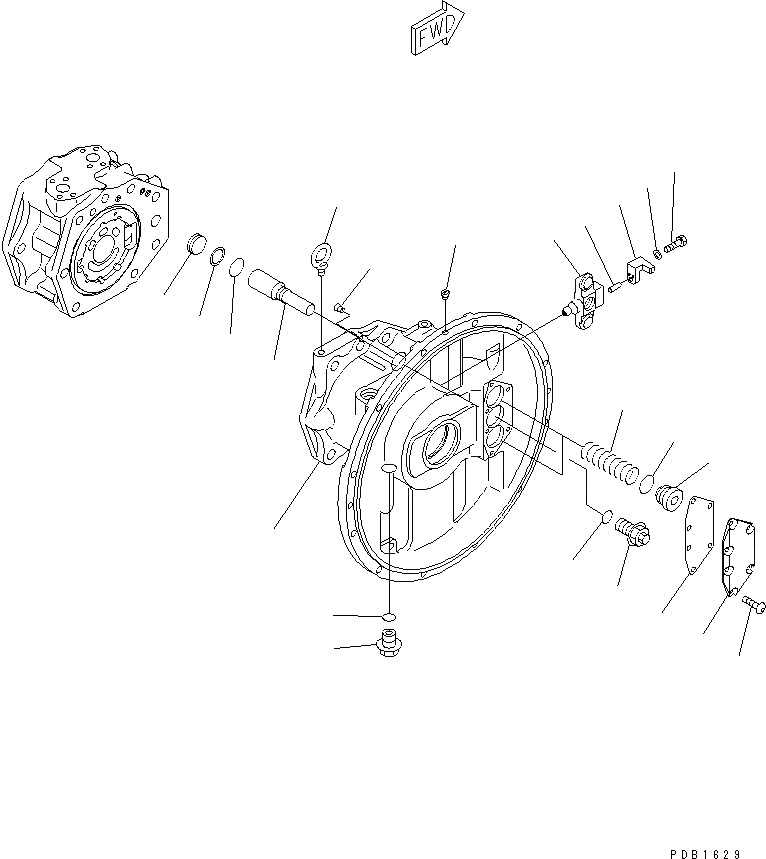

Запчасти Komatsu PC300LC-6Z ОСНОВН. НАСОС (/9)(№-999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2H-00110

PUMP ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-09A0.

|1

708-2H-01110

PUMP SUB ASS'Y

|1

708-2H-04110

CASE ASS'Y,FRONT

1

CASE,FRONT

2

PLUG

3

07044-12412

PLUG

4

708-1W-28910

O-RING

5

04530-01222

BOLT

6

708-2H-24310

PISTON

7

708-2H-24220

ROD

8

708-2H-24260

STOPPER

9

07000-B3032

O-RING

10

07001-03032

RING,BACK-UP

11

708-2H-24140

SPRING

12

708-2H-24130

PLUG

13

07002-03634

O-RING

14

708-2H-24270

SCREW

15

708-1W-28910

O-RING

16

708-2H-25870

CAM

17

01010-80825

BOLT

18

01643-30823

WASHER

19

04020-00514

PIN

20

708-2L-25650

ORIFICE

21

708-2H-24330

PLATE

22

708-2H-24340

PACKING

23

708-23-12350

SCREW
