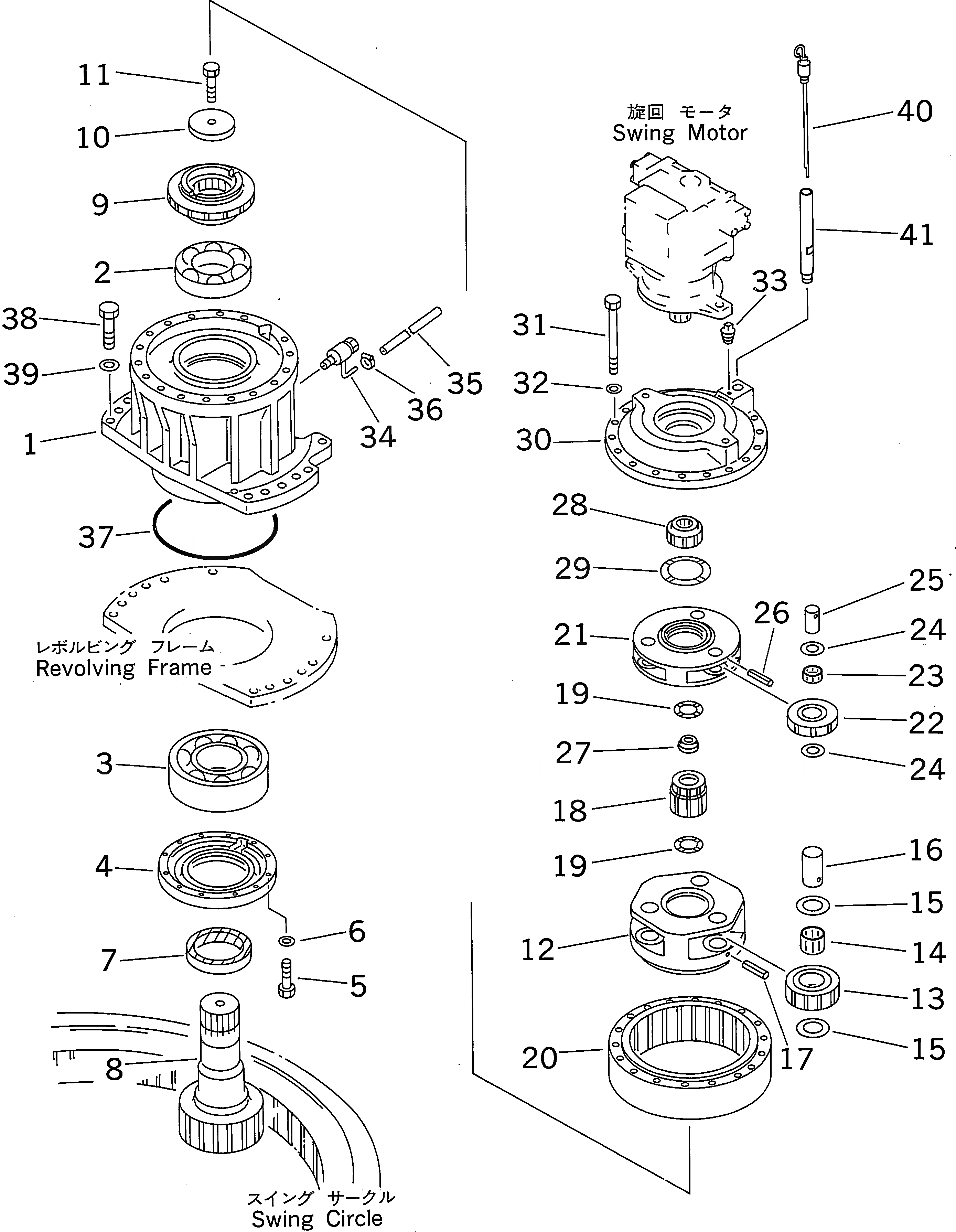

Запчасти Komatsu PC300LC-6Z МЕХАНИЗМ ПОВОРОТА(№-999) ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

1

207-26-61170

CASE

2

06000-22222

BEARING

3

06000-22324

BEARING

4

207-26-54263

COVER

|4

207-26-54262

COVER

5

01010-51040

BOLT

6

01643-31032

WASHER

7

207-26-61210

SEAL

|7

07012-00140

SEAL

8

207-26-54241

SHAFT

9

207-26-61150

COUPLING

10

207-26-54230

PLATE

11

205-32-51211

BOLT

12

20Y-27-21153

CARRIER,2ND

13

20Y-27-21210

GEAR

14

20Y-27-21270

BEARING

15

20Y-27-21250

WASHER

16

20Y-27-21230

PIN

17

20Y-27-21290

PIN

18

20Y-27-21191

GEAR

19

20Y-27-13310

WASHER

20

207-26-61130

GEAR,RING

21

207-26-61140

CARRIER,1ST

22

207-26-61120

GEAR

23

20Y-27-21260

BEARING

24

20Y-27-21240

WASHER

25

20Y-27-21220

PIN

26

20Y-27-21280

PIN

27

207-26-61180

GUIDE

28

207-26-61110

GEAR

29

20Y-27-21310

WASHER

30

207-26-61160

COVER

31

20Y-27-21360

BOLT

32

01643-31645

WASHER

33

07042-00108

PLUG

34

07730-40004

VALVE

35

207-26-31220

TUBE

36

07281-00197

CLAMP

37

07000-05290

O-RING

38

01010-52480

BOLT

39

01643-32460

WASHER

40

20Y-26-21340

GAUGE

41

20Y-26-21350

FILLER
