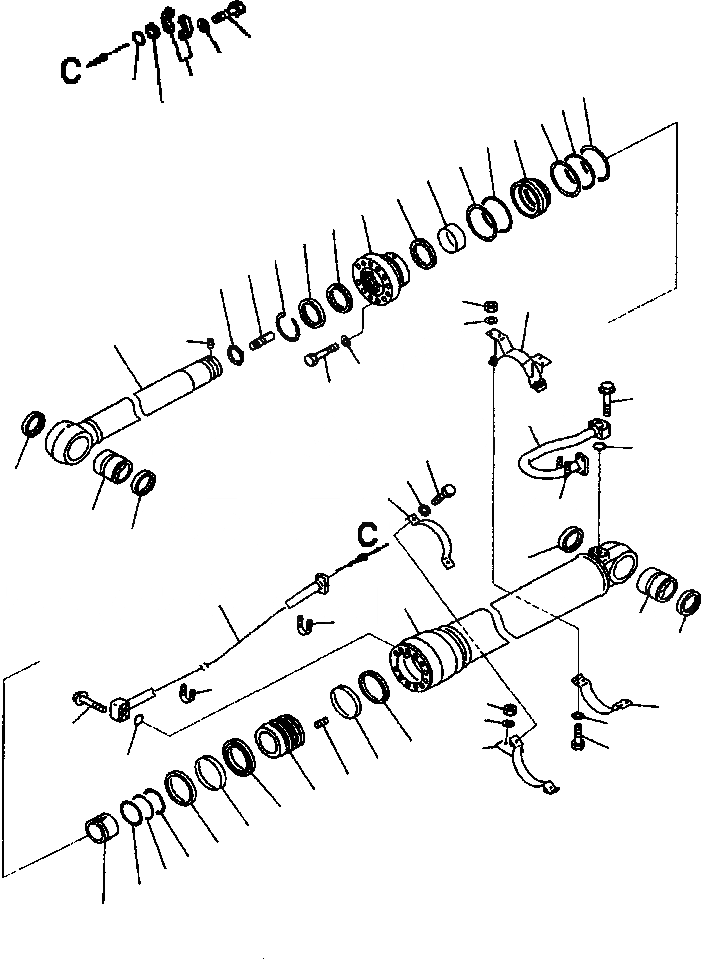

Запчасти Komatsu PC300LC-6LE FIG. T-AA ЦИЛИНДР РУКОЯТИ- 9 MM (98. IN.) УДЛИНН. ЦИЛИНДР BARREL (УСИЛ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

208-63-02541

CYLINDER ASSEMBLY, ARM

1

208-63-63941

BARREL, CYLINDER

2

707-76-11130

BUSHING

3

07145-00110

SEAL, DUST

4

208-63-63920

ROD

5

707-76-11130

BUSHING

6

07145-00110

SEAL, DUST

7

707-71-32910

COLLAR

8

707-35-91840

RING

9

07000-15175

O-RING

10

707-71-61420

PLUNGER

11

707-71-60300

PLUNGER

12

04260-00952

BALL

13

707-71-91230

CAP

14

707-27-18970

HEAD

15

705-56-13520

SEAL, DUST

16

07179-13136

RING, SNAP

17

707-52-91070

BUSHING

18

707-51-13030

PACKING, ROD

19

707-51-13630

RING, BUFFER

20

707-35-91840

RING, BACK-UP

21

07000-15175

O-RING

22

01011-82400

BOLT

23

707-88-75410

WASHER

24

707-36-18530

PISTON

25

01310-01225

SCREW

26

707-44-18280

RING

27

707-39-18830

RING

28

707-44-18920

RING

29

07001-05120

RING

30

07000-15120

O-RING

31

208-63-63971

TUBE

32

208-63-63180

TUBE

33

01435-01055

BOLT

34

07000-13035

O-RING

35

707-88-95811

BRACKET

36

707-88-95800

CLAMP, CYLINDER

37

707-88-95831

BRACKET

38

707-88-95820

CLAMP, CYLINDER

39

01010-81240

BOLT

40

01643-51232

WASHER

41

07283-23442

U-BOLT

42

01643-31032

WASHER

43

01599-01011

NUT

44

07000-13032

O-RING

45

07378-11000

HEAD

46

07371-31049

FLANGE, SPLIT

47

07372-21035

BOLT

48

01643-51032

WASHER
