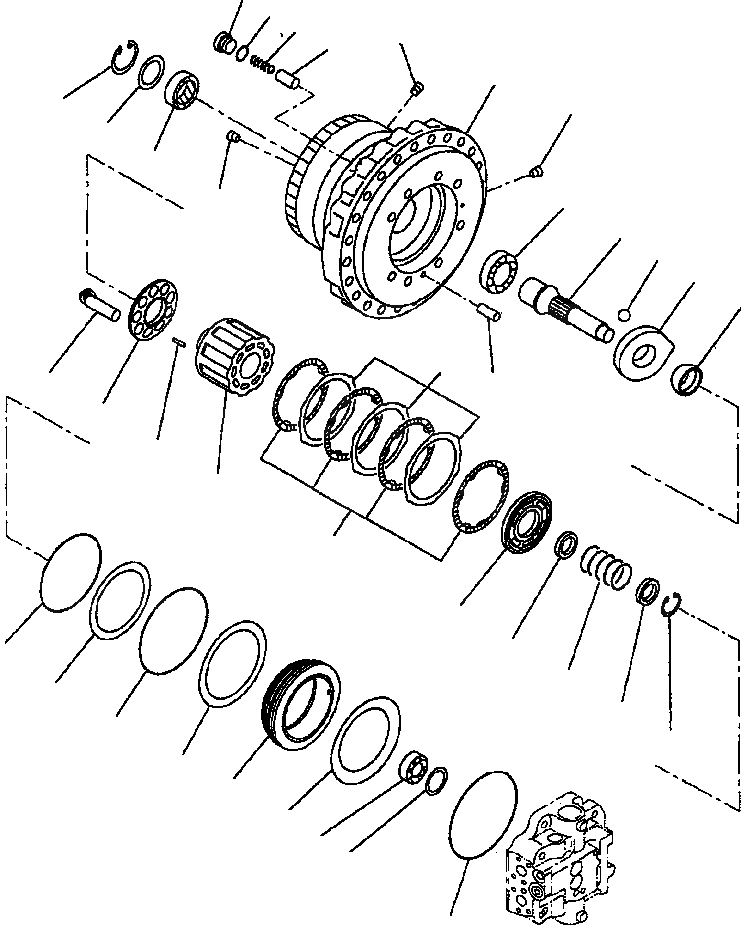

Запчасти Komatsu PC300LC-6LE FIG. P-A МОТОР ХОДА - КОРПУС ASSEMBLY - СТАНДАРТН. НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|$0

706-8H-00270

MOTOR ASSEMBLY, TRAVEL

1

706-8H-04640

CASE, MOTOR

|$2

708-8H-31130

CASE

2

NSS

PLUG

3

708-8H-31210

O-RING

4

04020-01228

PIN

5

708-8H-32111

SHAFT

6

708-8H-32150

BEARING

7

708-8H-32140

BEARING

8

708-8H-05030

KIT, SPACER

|$10

NSS

SPACER, 1.6 mm

|$11

NSS

SPACER, 1.7 mm

|$12

NSS

SPACER, 1.8 mm

|$13

NSS

SPACER, 1.9 mm

|$14

NSS

SPACER, 2.0 mm

|$15

NSS

SPACER, 2.1 mm

|$16

NSS

SPACER, 2.2 mm

9

708-1F-12280

SEAL

10

708-8H-32160

SPACER

11

04065-07825

RING

12

708-8H-33112

BLOCK

13

708-8H-33220

PLATE

14

708-8H-33360

PIN

15

708-8H-33141

SPACER

16

708-7H-13150

SPRING

17

04065-06020

RING

18

708-8H-33340

RETAINER

19

708-8H-33512

RETAINER

20

708-8H-33610

PISTON

21

708-8H-33431

CAM

22

04260-02857

BALL

23

708-8H-34142

PISTON

24

708-8H-34151

SPRING

25

708-8K-14210

PLUG

26

07002-13334

O-RING

27

708-8H-35142

PISTON

28

07000-15175

O-RING

29

07001-05175

RING, BACK-UP

30

07000-15195

O-RING

31

07001-05195

RING, BACK-UP

32

708-8H-35150

SPRING

33

708-8H-35130

PLATE

34

708-8H-35120

DISC
