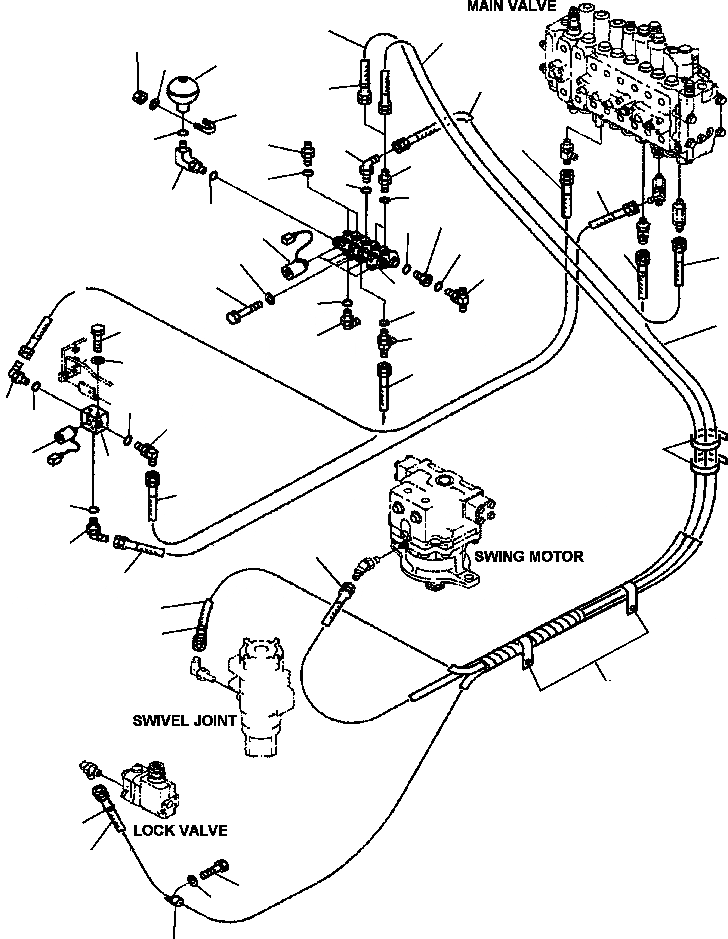

Запчасти Komatsu PC300LC-6LE FIG. H8-A ГИДРОЛИНИЯ - СОЛЕНОИДНЫЙ КЛАПАН ГИДРАВЛИКА

|$0

206-60-51102

VALVE ASSEMBLY, SOLENOID

1

206-60-51132

VALVE, SOLENOID

2

206-60-51141

BLOCK

3

205-62-55270

NIPPLE

4

07002-11423

O-RING

5

07235-10210

ELBOW

6

07002-11423

O-RING

7

07230-20210

UNION

8

07002-11423

O-RING

9

07235-10315

ELBOW

10

20Y-62-23520

TEE

11

07002-12034

O-RING

12

20Y-62-21940

FILTER ASSEMBLY

13

07002-12034

O-RING

14

20Y-62-11780

ELBOW

15

07002-11423

O-RING

16

01011-81000

BOLT

17

01643-31032

WASHER

18

20Y-60-A1210

ACCUMULATOR

19

203-62-65281

ELBOW

20

07002-12034

O-RING

21

07283-23450

U-BOLT

22

01599-01011

NUT

23

01643-31032

WASHER

|$24

207-60-61201

VALVE ASSEMBLY, SOLENOID

24

206-60-51132

VALVE, SOLENOID

25

207-60-61211

BLOCK

26

01010-80825

BOLT

27

01643-30823

WASHER

28

07235-10210

ELBOW

29

22X-61-18550

ELBOW

30

07002-11423

O-RING

31

206-62-43240

HOSE

|$33

207-62-63811

HOSE ASSEMBLY

32

07102-20319

HOSE

33

07102-20317

HOSE

34

07102-20316

HOSE

35

20Y-62-22790

BAND, RED

36

20Y-62-22810

BAND, YELLOW

37

08034-00519

STRAP, TIE

38

04434-51812

CLIP

39

01010-81225

BOLT

40

01643-31232

WASHER

41

208-06-19170

CLIP

42

07102-20203

HOSE

43

07102-20305

HOSE

44

206-62-43240

HOSE
