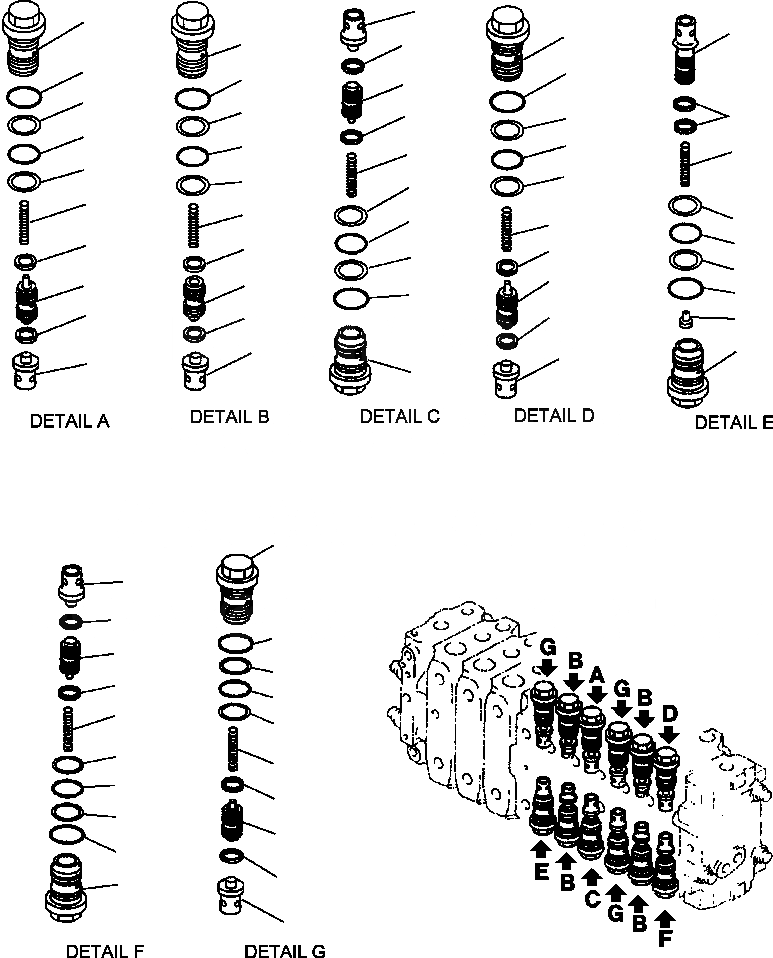

Запчасти Komatsu PC300LC-6LE FIG. H-A ОСНОВН. УПРАВЛЯЮЩ. КЛАПАН ( АКТУАТОРS) - PRESSURE COMPENSATION КЛАПАНS ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
1
723-46-41110
VALVE
2
723-46-41120
VALVE
|$4
723-46-40100
VALVE, PRESSURE COMPENSATION
3
NSS
SLEEVE
4
NSS
PISTON
5
NSS
SPRING
6
723-46-41940
SEAL
7
700-93-11320
O-RING
8
723-46-41950
RING
9
07002-13634
O-RING
|$12
723-46-40300
VALVE, PRESSURE COMPENSATION
10
NSS
SLEEVE
11
NSS
PISTON
12
NSS
SPRING
13
423-46-41940
SEAL
14
700-93-11320
O-RING
15
723-46-41950
RING
16
07002-13634
O-RING
|$20
723-46-40601
VALVE, PRESSURE COMPENSATION
17
NSS
SLEEVE
18
NSS
PISTON
19
NSS
SPRING
20
723-46-41940
SEAL
21
700-93-11320
O-RING
22
723-46-41950
RING
23
07002-13634
O-RING
|$28
723-46-43100
VALVE, PRESSURE COMPENSATION
24
NSS
SLEEVE
25
NSS
PISTON
26
NSS
SPRING
27
723-46-42930
SEAL
28
700-93-11320
O-RING
29
723-46-41950
RING
30
07002-13634
O-RING
|$36
723-46-43200
VALVE, PRESSURE COMPENSATION
31
NSS
SLEEVE
32
NSS
VALVE SUB ASSEMBLY
33
NSS
SPRING
34
723-46-42930
SEAL
35
700-93-11320
O-RING
36
723-46-41950
RING
37
07002-13634
O-RING
38
723-46-41980
RETAINER
|$45
723-46-44100
VALVE, PRESSURE COMPENSATION
39
NSS
SLEEVE
40
NSS
PISTON
41
NSS
SPRING
42
723-46-44100
SEAL
43
700-93-11320
O-RING
44
723-46-41950
RING
45
07002-13634
O-RING
|$53
723-46-45100
VALVE, PRESSURE COMPENSATION
46
NSS
SLEEVE
47
NSS
PISTON
48
NSS
SPRING
49
723-46-42920
SEAL
50
700-93-11320
O-RING
51
723-46-41950
RING
52
07002-13634
O-RING
Выбрано товаров: 59
