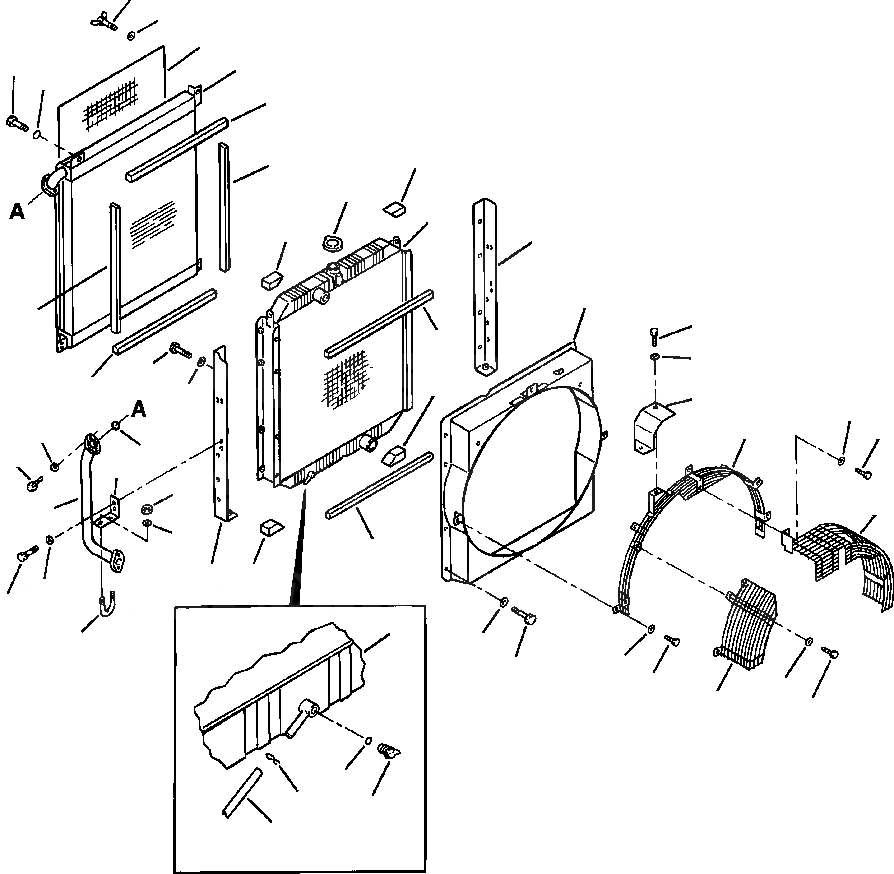

Запчасти Komatsu PC300LC-6LC FIG. C-A РАДИАТОР И МАСЛООХЛАДИТЕЛЬ - W/КОНДИЦ., PCLC- заводской номер A87 И UP, PCHD- заводской номер A877 И UP СИСТЕМА ОХЛАЖДЕНИЯ

1

208-03-51111

CORE ASSEMBLY, RADIATOR

2

205-03-71280

CAP, RADIATOR

3

205-03-62660

PLUG

4

07000-11007

O-RING

5

205-03-71230

HOSE, DRAIN LINE

6

20Y-03-11330

CLIP, HOSE

7

01010-81225

BOLT

8

01643-31232

WASHER

9

207-03-61110

COOLER ASSEMBLY, OIL

10

01010-81225

BOLT

11

01643-31232

WASHER

12

01010-81225

BOLT

13

01643-31232

WASHER

14

207-03-51171

SEAL

15

207-03-51181

SEAL

16

207-03-51191

STRIP

17

207-03-51211

STRIP

18

207-03-51450

STRIP

19

207-03-61120

FRAME

20

207-03-61130

FRAME

21

208-03-52272

SCREEN, OIL COOLER

22

01434-10620

SCREW, WING

23

01643-30623

WASHER

24

207-03-61320

SHROUD, RADIATOR

25

207-03-68170

GUARD, FINGER

26

01010-81225

BOLT

27

01643-31232

WASHER

28

207-03-68180

GUARD, FINGER

29

207-03-68191

GUARD, FINGER

30

207-03-68210

COVER

31

207-03-61211

TUBE, OIL COOLER

32

07283-24949

U-BOLT

33

01599-01011

NUT

34

01643-31032

WASHER

35

207-03-61190

BRACKET

36

01010-81025

BOLT

37

01643-31032

WASHER

38

07000-03045

O-RING

39

01010-81240

BOLT

40

01643-51232

WASHER
