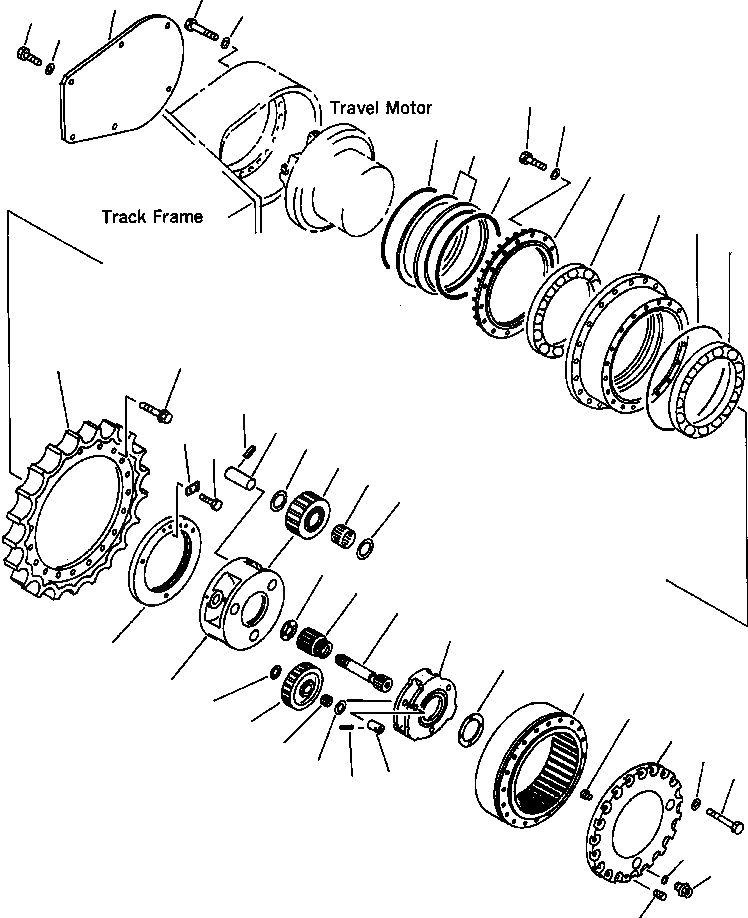

Запчасти Komatsu PC300LC-6LC FIG. P-A КОНЕЧНАЯ ПЕРЕДАЧА - PCLC- заводской номер A8 И UP НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|$0

207-27-00151

FINAL DRIVE ASSEMBLY

|$1

207-27-00310

SEAL ASSEMBLY, FLOATING

1

170-27-00115

RING ASSEMBLY, SEAL

|$3

NSS

SEAL

2

207-27-00320

O-RING ASSEMBLY

|$5

NSS

O-RING

3

207-27-62191

HUB

4

207-27-61310

BEARING

5

207-27-51292

COVER

6

01010-81030

BOLT

7

01643-31032

WASHER

8

207-27-52350

O-RING

9

207-27-61270

LOCK

10

207-27-61261

NUT

11

01010-81020

BOLT

12

207-27-62170

CARRIER

13

207-27-62140

GEAR

14

207-27-61230

BEARING

15

20Y-27-21250

WASHER

16

207-27-61250

PIN

17

20Y-27-21290

PIN

18

20Y-27-13310

WASHER, THRUST

19

207-27-62130

GEAR, SUN

20

207-27-62150

GEAR, RING

21

207-27-62160

CARRIER

22

207-27-62120

GEAR

23

207-27-61220

BEARING

24

20Y-27-21240

WASHER, THRUST

25

207-27-61240

PIN

26

20Y-27-21280

PIN

27

207-27-63110

SHAFT

28

20Y-27-11250

SPACER

29

208-27-61350

BUTTON

30

208-27-63180

COVER

31

207-27-52341

BOLT

32

01643-31845

WASHER

33

07049-01215

PLUG

34

07044-12412

PLUG

35

07002-02434

O-RING

36

207-27-61210

SPROCKET

37

207-27-51311

BOLT, MOUNT SPROCKET

38

01011-82075

BOLT

39

01643-32060

WASHER

40

207-30-61240

COVER

41

01010-61640

BOLT

42

01643-31645

WASHER
