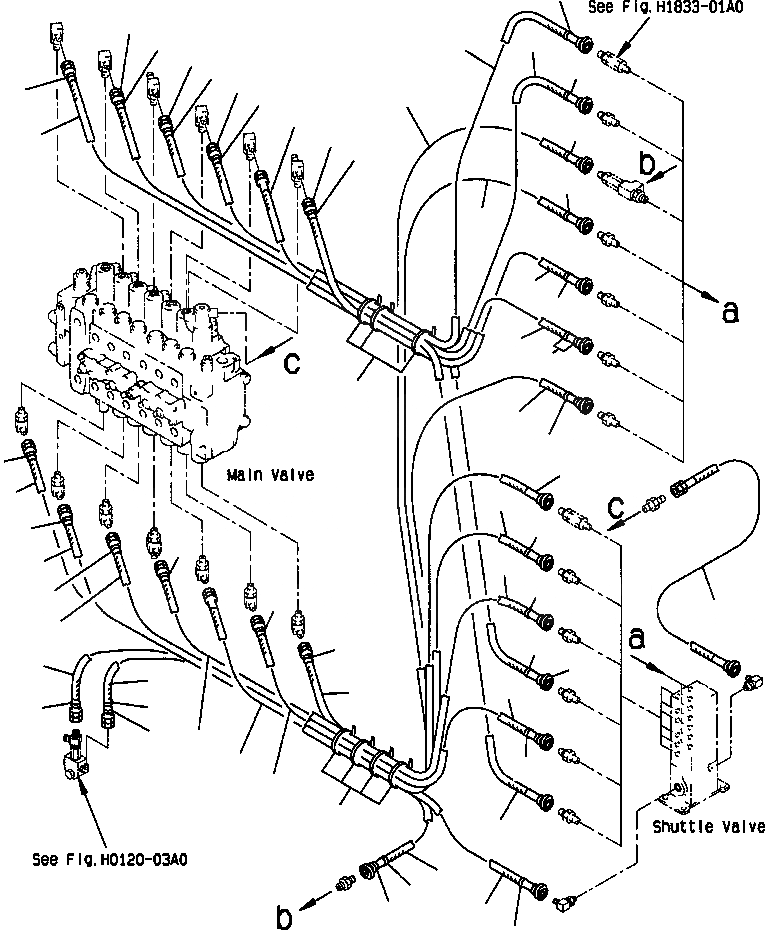

Запчасти Komatsu PC300LC-6LC FIG. H8-A ГИДРОЛИНИЯ - КЛАПАН ЛИНИИ PPC ГИДРАВЛИКА

1

08034-20536

BAND

2

20Y-62-22660

HOSE, 470 mm (BOOM RAISE)

3

20Y-62-22850

BAND, GREEN

4

207-62-63420

HOSE, 920 MM (LEFT TRAVEL, FORWARD)

5

20Y-62-22830

BAND, WHITE

6

20Y-62-22680

HOSE, 520 mm (BUCKET CURL)

7

20Y-62-22840

BAND, BLACK

8

20Y-62-22670

HOSE, 355 mm (SWING TO LEFT)

9

20Y-62-22790

BAND, RED

10

20Y-62-22660

HOSE, 470 MM (ARM OUT)

11

20Y-62-22720

HOSE, 535 MM (RIGHT TRAVEL, FORWARD)

12

20Y-62-22820

BAND, BLUE

13

08034-00536

BAND

14

20Y-62-22720

HOSE, 535 MM

15

20Y-62-22790

BAND, RED

16

20Y-62-22740

HOSE, 675 MM

17

20Y-62-22860

BAND, BROWN

18

207-62-63640

HOSE

19

20Y-62-22820

BAND, BLUE

20

20Y-62-22760

HOSE, 840 MM

21

20Y-62-22830

BAND, WHITE

22

20Y-62-22770

HOSE, 700 MM

23

20Y-62-22781

HOSE, 650 MM

24

20Y-62-22850

BAND, GREEN

25

20Y-62-16540

HOSE, 800 MM

26

20Y-62-22810

BAND, YELLOW

27

20Y-62-22840

BAND, BLACK

28

207-62-63410

HOSE, 570 MM

29

20Y-62-22660

HOSE, 470 MM

30

20Y-62-22680

HOSE, 520 MM
