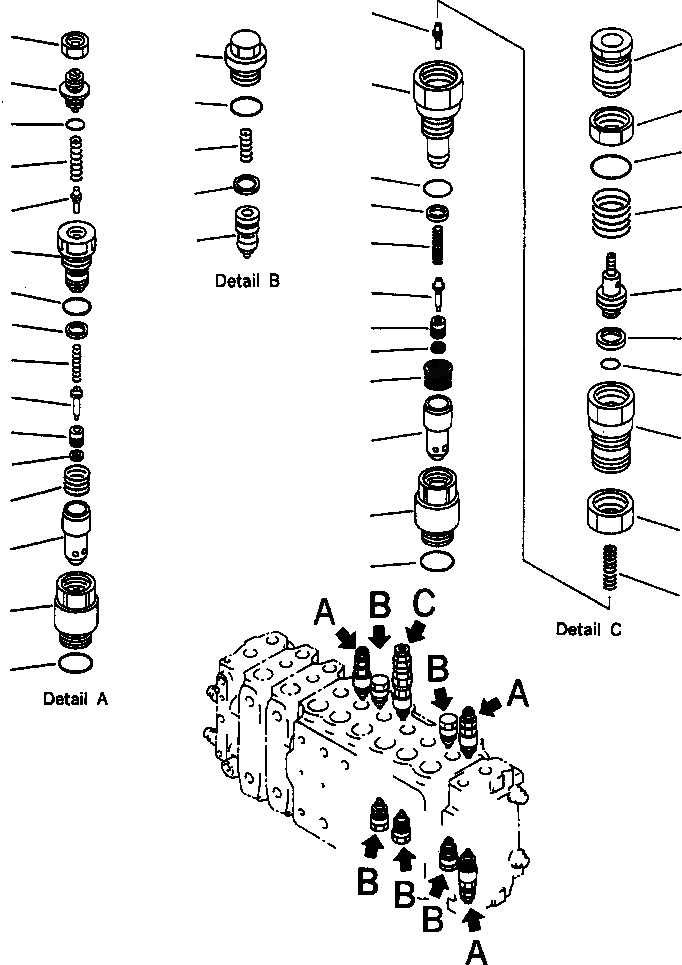

Запчасти Komatsu PC300LC-6LC FIG. H-9A ОСНОВН. КЛАПАН (9/) - АКТУАТОР ГИДРАВЛИКА

|$1

709-70-74302

VALVE, SUCTION AND SAFETY

1

NSS

SLEEVE

2

NSS

SLEEVE

3

NSS

POPPET

4

NSS

PISTON

5

NSS

PLUG

6

NSS

POPPET

7

NSS

SCREW

8

NSS

SPRING

9

NSS

SPRING

10

NSS

SPRING

11

NSS

SEAL

12

NSS

SEAL

13

709-25-11390

O-RING

14

07002-02434

O-RING

15

07000-02011

O-RING

16

01583-11408

NUT

|$18

723-40-90100

VALVE, SUCTION AND SAFETY

17

NSS

SLEEVE

18

NSS

SLEEVE

19

NSS

POPPET

20

NSS

PISTON

21

NSS

SLEEVE

22

NSS

POPPET

23

NSS

UNION

24

NSS

PISTON

25

NSS

SPRING

26

NSS

SPRING

27

NSS

SPRING

28

NSS

SEAL

29

NSS

SEAL

30

709-25-11390

O-RING

31

NSS

O-RING

32

NSS

NUT

33

NSS

NUT

34

NSS

HOLDER

35

NSS

O-RING

36

NSS

SPRING

37

NSS

SEAL

|$40

723-40-85100

VALVE, SUCTION

38

NSS

SLEEVE

39

NSS

VALVE

40

NSS

SPRING

41

NSS

SEAL

42

709-25-11390

O-RING
