Запчасти Komatsu PC300LC-6LC FIG. H-A ОСНОВН. КЛАПАН (/) ГИДРАВЛИКА

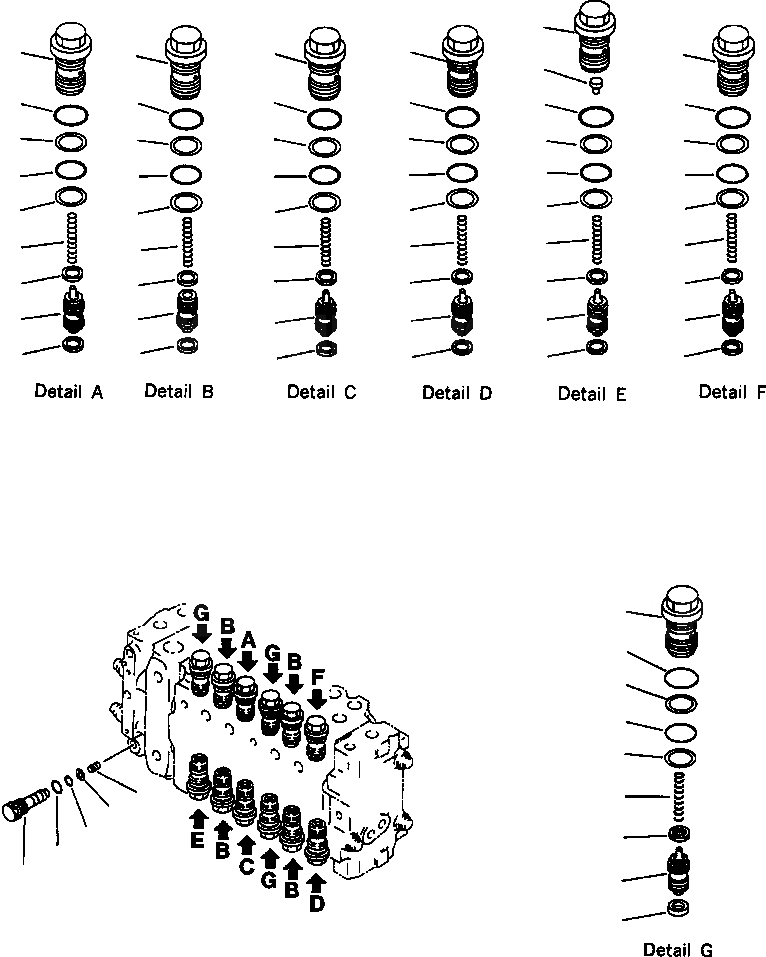

Схема запчастей Komatsu PC300LC-6LC - FIG. H-A ОСНОВН. КЛАПАН (/) ГИДРАВЛИКА
36
18
17
25
23
25
29
24
4
39
2
4
3
35
10
11
9
11
43
1
8
14
7
6
5
6
13
12
13
15
21
34
20
19
20
22
28
27
26
42
27
33
41
34
42
38
31
32
40
37
30
16
32
18
40
44
50
49
48
49
46
52
55
47
54
53
51
45
47

Артикул

Название

Примечание

Количество

|$1

723-46-40100

VALVE ASSEMBLY

1

NSS

SLEEVE

2

NSS

PISTON SUB ASSEMBLY

3

NSS

SPRING

4

723-46-41940

SEAL

5

700-93-11320

O-RING

6

723-46-41950

RING

7

07002-13634

O-RING

|$9

723-46-42500

VALVE ASSEMBLY

8

NSS

SLEEVE

9

NSS

PISTON

10

NSS

SPRING

11

723-46-41930

SEAL

12

700-93-11320

O-RING

13

723-46-41950

RING

14

07002-13634

O-RING

|$17

723-46-40601

VALVE ASSEMBLY

15

NSS

SLEEVE

16

NSS

PISTON

17

NSS

SPRING

18

723-46-41940

SEAL

19

700-93-11320

O-RING

20

723-46-41950

RING

21

07002-13634

O-RING

|$25

723-46-44100

VALVE ASSEMBLY

22

NSS

SLEEVE

23

NSS

PISTON

24

NSS

SPRING

25

723-46-42910

SEAL

26

700-93-11320

O-RING

27

723-46-41950

RING

28

07002-13634

O-RING

|$33

723-46-43100

VALVE ASSEMBLY

29

NSS

SLEEVE

30

NSS

PISTON

31

NSS

SPRING

32

723-46-42930

SEAL

33

700-93-11320

O-RING

34

723-46-41950

RING

35

07002-13634

O-RING

|$41

723-46-43200

VALVE ASSEMBLY

36

NSS

SLEEVE

37

NSS

VALVE SUB ASSEMBLY

38

NSS

SPRING

39

723-46-42930

SEAL

40

700-93-11320

O-RING

41

723-46-41950

RING

42

07002-13634

O-RING

43

NSS

RETAINER

|$50

723-46-45100

VALVE ASSEMBLY

44

NSS

SLEEVE

45

NSS

PISTON SUB ASSEMBLY

46

NSS

SPRING

47

723-46-42920

SEAL

48

700-93-11320

O-RING

49

723-46-41950

RING

50

07002-13634

O-RING

|$58

723-46-15100

PLUG ASSEMBLY

51

NSS

PLUG

52

NSS

SCREW

53

07002-11423

O-RING

54

07000-11007

O-RING

55

07001-01007

RING

Выбрано товаров: 63
