Артикул
Название
Примечание
Количество
|1
708-8H-00270

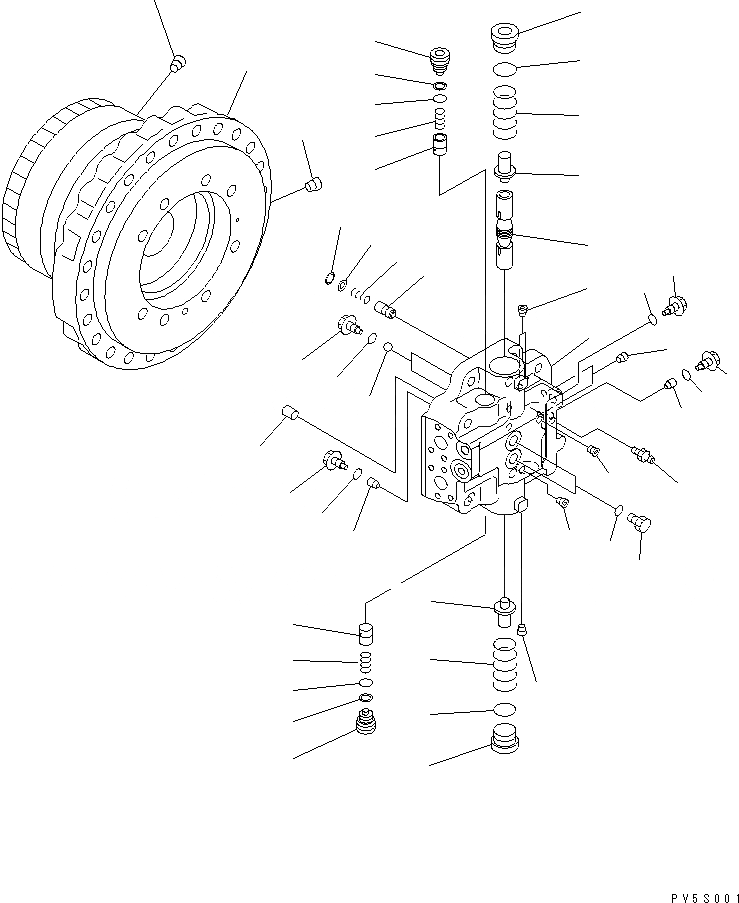

MOTOR ASS'Y
|$$2
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1641-11A0 TO Y1641-13A0.
|1
708-8H-04681
CASE SUB ASS'Y
1
CASE,MOTOR
2
PLUG
|3
708-8H-04652
END COVER SUB ASS'Y
3
COVER,END
4
SPOOL
5
SPOOL
6
PLUG
7
SPRING
8
SEAT
9
RING
10
706-75-42820
PIN,DOWEL
11
708-8H-11530
PLUG
12
07002-11423
O-RING
13
708-8E-16160
PLUG
14
07002-11023
O-RING
15
20B-27-11210
BLEEDER
16
706-73-72420
VALVE
17
706-73-72440
SPRING
18
708-8H-36150
PLUG
19
07000-12018
O-RING
20
07001-02018
RING,BACK-UP
21
706-78-71160
PISTON
22
708-8H-36121
SPRING
23
708-8H-16141
PLUG
24
07002-13634
O-RING
25
04260-00793
BALL
26
706-8E-14110
PLUG
27
07002-11023
O-RING
28
708-8E-16180
VALVE
29
708-8E-16160
PLUG
30
07002-11023
O-RING
Выбрано товаров: 34
