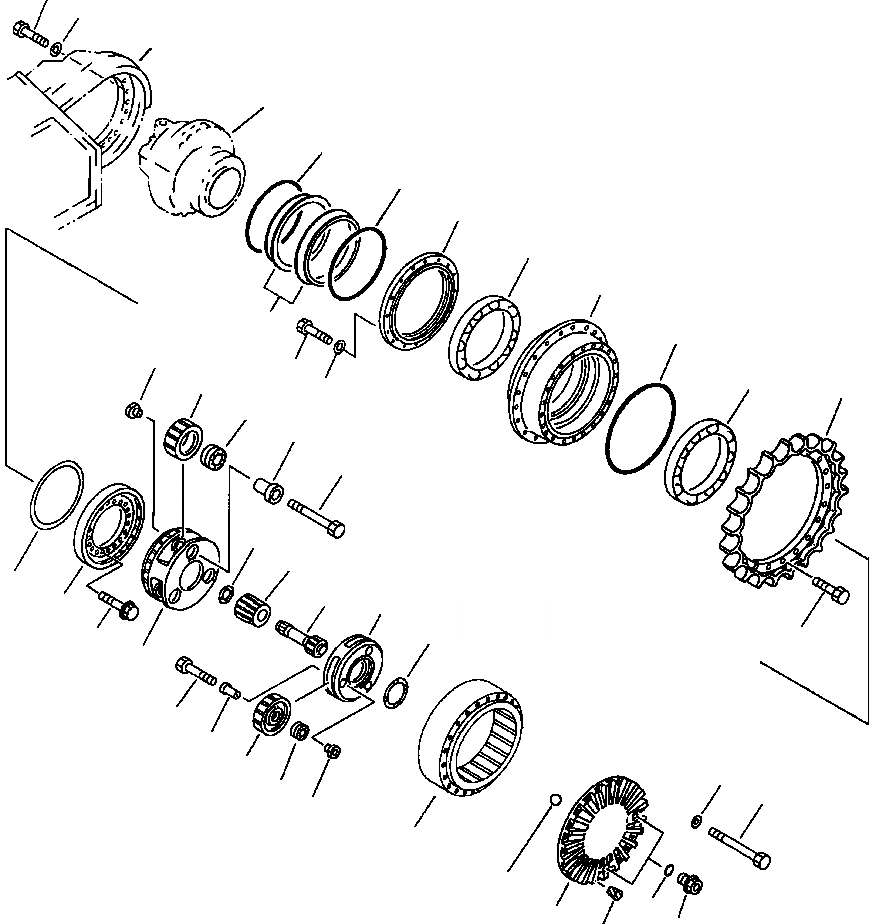

Запчасти Komatsu PC300LC-5LC КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА ХОД И НИЖН.CARRIAGE

|$0

207-27-00101

FINAL DRIVE ASSEMBLY

1

07002-02434

O-RING

2

07044-12412

PLUG

3

207-27-52310

BOLT

N/I

423-33-00020

SEAL ASSEMBLY, FLOATING

N/I

170-27-00113

RING ASSEMBLY, SEAL

5

NSS

RING, SEAL

N/I

195-27-00150

O-RING ASSEMBLY

6

NSS

O-RING

7

207-27-51291

COVER

8

207-27-51220

BEARING, BALL

9

207-27-52160

HUB

10

207-27-52350

O-RING

11

207-27-33222

SPROCKET

N/I

207-27-00110

SPACER KIT

12

NSS

SPACER 0.1279 IN (3.25 mm)

12

NSS

SPACER 0.1299 IN (3.30 mm)

12

NSS

SPACER 0.1318 IN (3.35 mm)

12

NSS

SPACER 0.1338 IN (3.40 mm)

12

NSS

SPACER 0.1358 IN (3.45 mm)

12

NSS

SPACER 0.1377 IN (3.50 mm)

12

NSS

SPACER 0.1397 IN (3.55 mm)

13

207-27-52170

RETAINER

14

207-27-52180

CARRIER

15

207-27-52220

BEARING, ROLLER

16

207-27-52140

GEAR

17

207-27-51241

HOLDER

18

207-27-52240

PIN

19

01011-51805

BOLT

20

207-27-52270

SPACER

21

207-27-52131

GEAR

22

207-27-52110

SHAFT

23

207-27-52190

CARRIER

24

207-27-52120

GEAR

25

207-27-52250

PIN

26

01010-51060

BOLT

27

207-27-52320

BEARING, ROLLER

28

207-27-52260

HOLDER

29

20Y-27-11250

SPACER

30

207-27-52281

GEAR

31

04260-01905

BALL

32

207-27-52210

COVER

33

07049-01215

PLUG

34

01010-51030

BOLT

35

01643-31032

WASHER

36

207-27-51310

BOLT

37

207-27-52341

BOLT

38

01643-31845

WASHER

N/I

04020-01024

DOWEL, PIN

39

01010-52085

BOLT

40

01643-32060

WASHER
