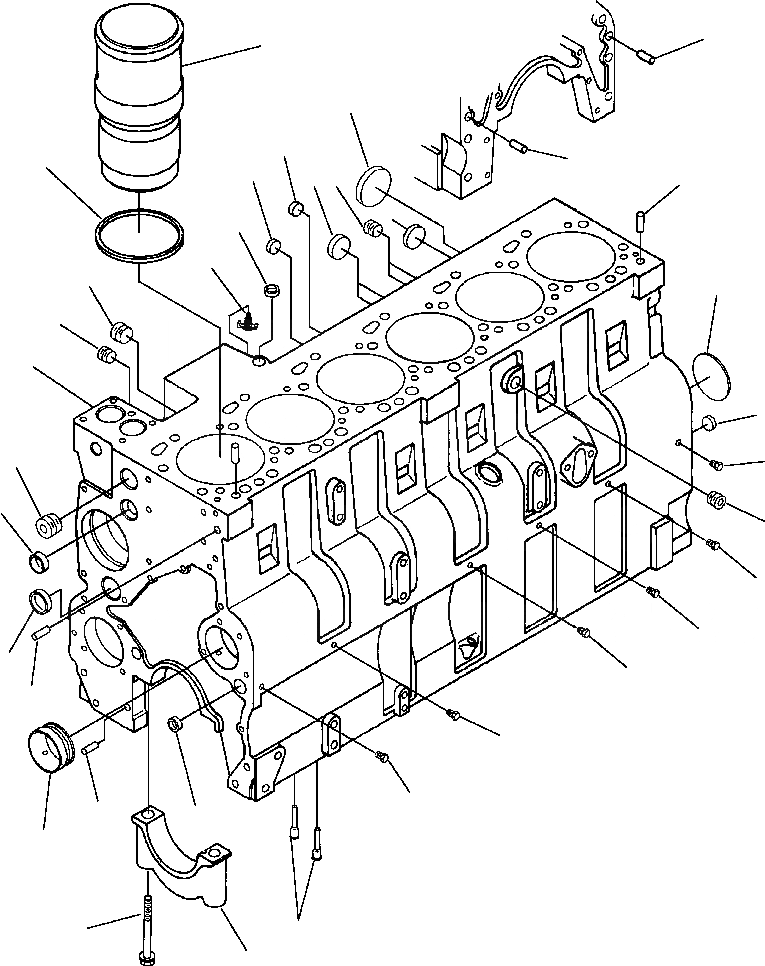

Запчасти Komatsu PC300LC-5LC БЛОК ЦИЛИНДРОВ БЛОК ЦИЛИНДРОВ

|$0

1294 789 H94

BLOCK ASSY, CYLINDER

1

NSS

BLOCK, CYLINDER

2

1240 888 H1

PLUG, EXPANSION

3

1240 891 H1

PLUG, EXPANSION

4

1240 449 H1

PLUG, EXPANSION

4

1240 449 H1

PLUG, EXPANSION

5

1240 154 H2

PLUG, EXPANSION

6

1240 933 H1

BUSHING, CAMSHAFT

7

1240 920 H1

CAP, MAIN BEARING

8

1240 979 H1

PLUG, EXPANSION

9

1294 790 H1

SCREW, HEX FLANGE HEAD CAP

10

1294 792 H1

NOZZLE, PISTON COOLING

11

1240 370 H1

PLUG, PIPE

12

1238 127 H1

DRAINCOCK

13

1240 891 H1

PLUG, EXPANSION

14

1239 159 H1

PLUG, PIPE

15

1239 160 H1

PLUG, PIPE

16

1239 161 H1

PLUG, PIPE

17

1240 128 H1

DOWEL, PIN

18

1240 944 H1

DOWEL, PIN

19

1240 946 H1

PLUG, EXPANSION

|$21

1241 175 H91

KIT, LINER

20

1241 076 H1

LINER, CYLINDER

21

1241 196 H1

SEAL, RECTANGULAR RING

|$24

1296 605 H1

SHIM, COUNTERBORE SERVICE - 0.010 OS

|$25

1296 604 H1

SHIM, COUNTERBORE SERVICE - 0.015 OS

|$26

1296 603 H1

SHIM, COUNTERBORE SERVICE - 0.020 OS

|$27

1258 620 H91

KIT, CYLINDER BLOCK
