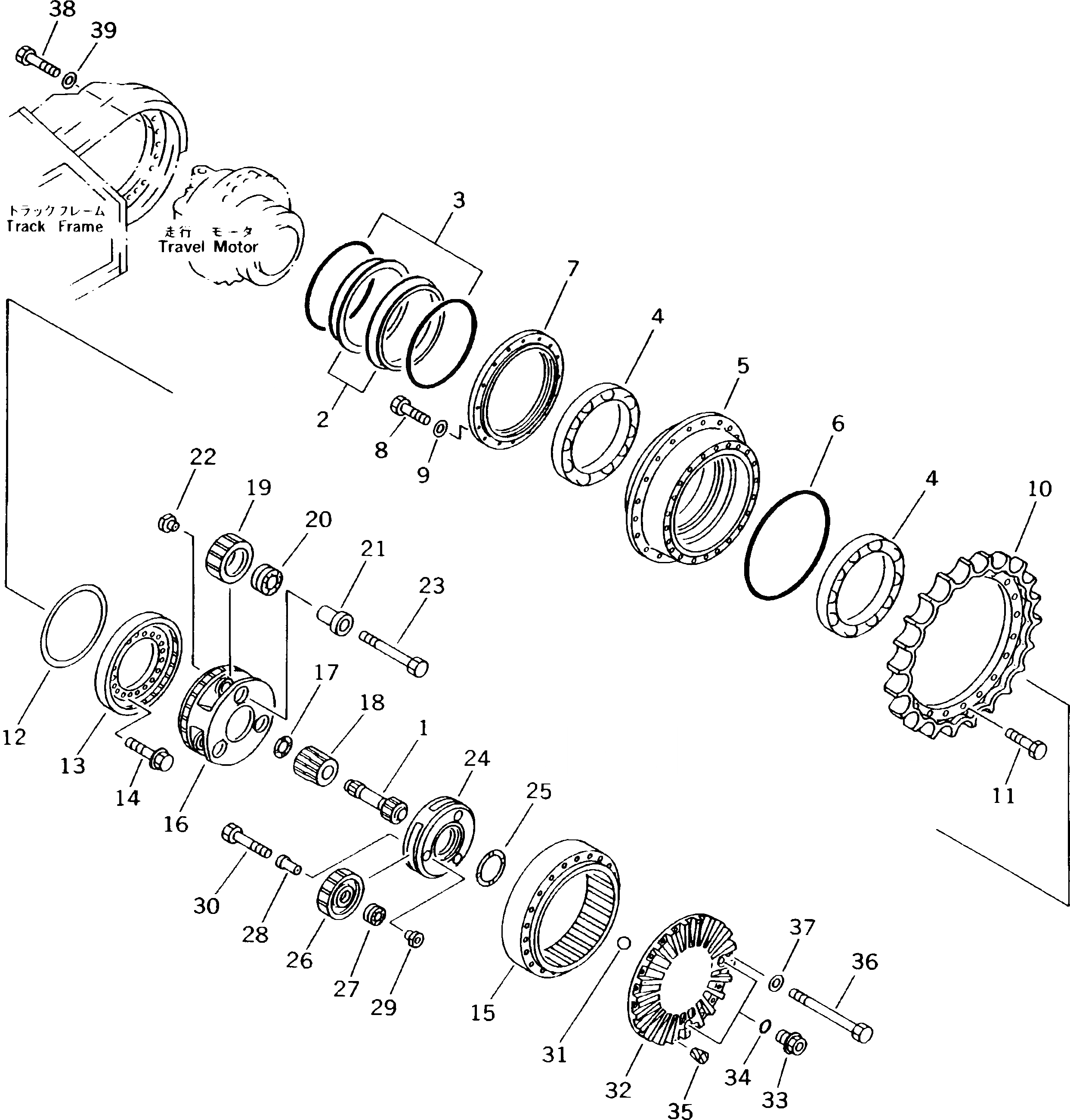

Запчасти Komatsu PC300LC-5K КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА ХОДОВАЯ

|1

207-27-00103

FINAL DRIVE ASS'Y

1

207-27-52110

SHAFT

|2

207-27-00120

FLOATING SEAL ASS'Y

|2

423-33-00020

FLOATING SEAL ASS'Y

2

RING,SEAL

3

O-RING

4

207-27-51220

BEARING,BALL

5

207-27-52160

HUB

6

207-27-52350

O-RING

7

207-27-51291

COVER

8

01010-51030

BOLT

9

01643-31032

WASHER

10

207-27-K1110

SPROCKET

11

207-27-51310

BOLT

12

207-27-00110

SPACER KIT

|12

SPACER¤ 3.25MM

|12

SPACER¤ 3.30MM

|12

SPACER¤ 3.35MM

|12

SPACER¤ 3.40MM

|12

SPACER¤ 3.45MM

|12

SPACER¤ 3.50MM

|12

SPACER¤ 3.55MM

13

207-27-52170

RETAINER

14

207-27-52310

BOLT

15

207-27-52281

GEAR

16

207-27-52180

CARRIER

17

207-27-52270

SPACER

18

207-27-52131

GEAR

19

207-27-52140

GEAR

20

207-27-52220

BEARING,ROLLER

21

207-27-52240

PIN

22

207-27-51241

HOLDER

23

01011-51805

BOLT

24

207-27-52190

CARRIER

25

20Y-27-11250

SPACER

26

207-27-52120

GEAR

27

207-27-52320

BEARING,ROLLER

28

207-27-52250

PIN

29

207-27-52260

HOLDER

30

01010-51060

BOLT

31

04260-01905

BALL

32

207-27-52210

COVER

33

07044-12412

PLUG

34

07002-02434

O-RING

35

07049-01215

PLUG

36

207-27-52341

BOLT

37

01643-31845

WASHER

38

01010-52085

BOLT

39

01643-32060

WASHER
